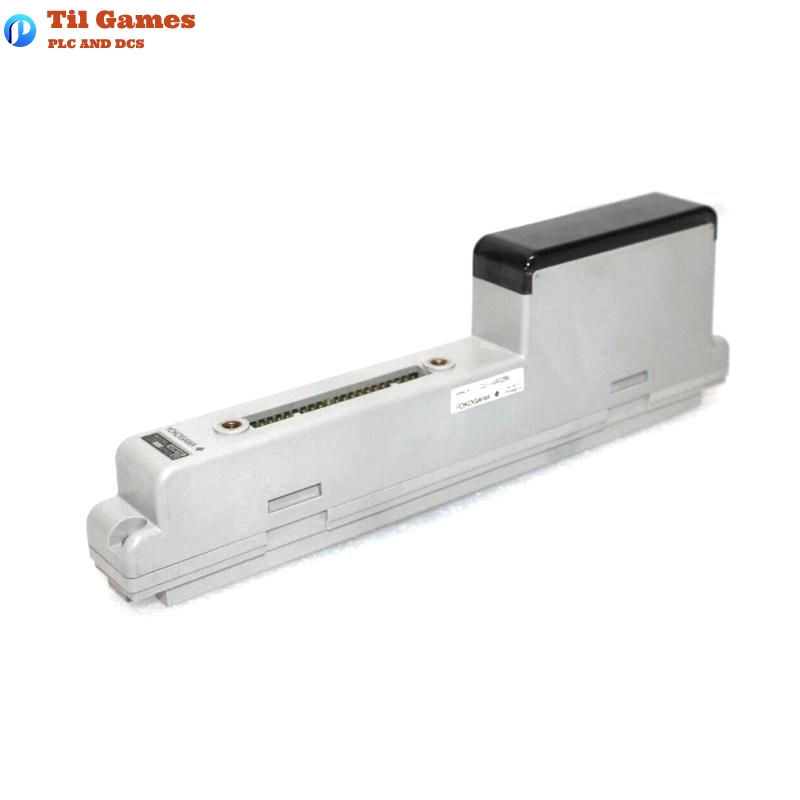

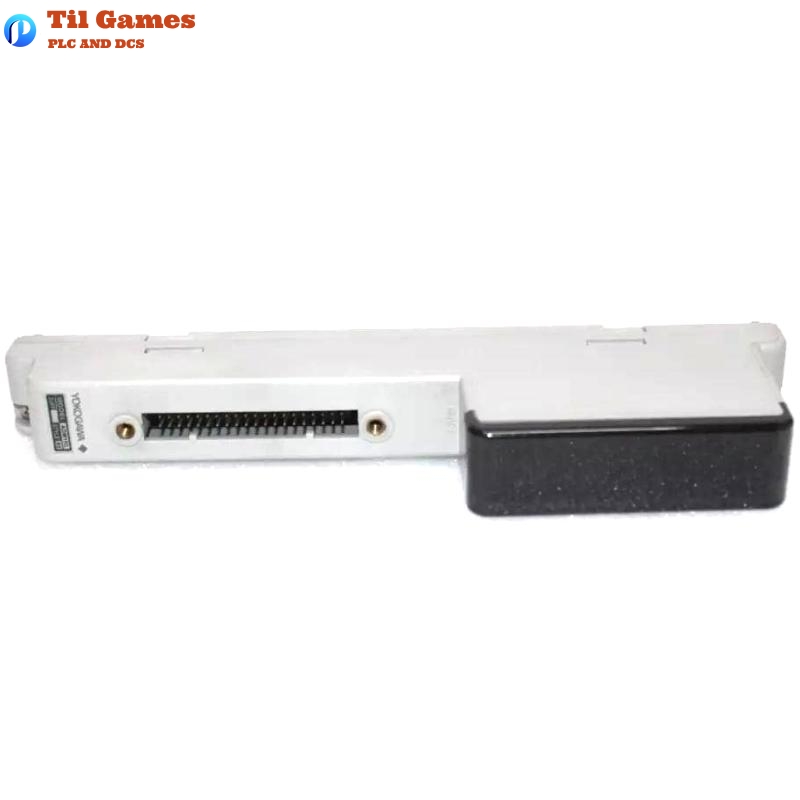

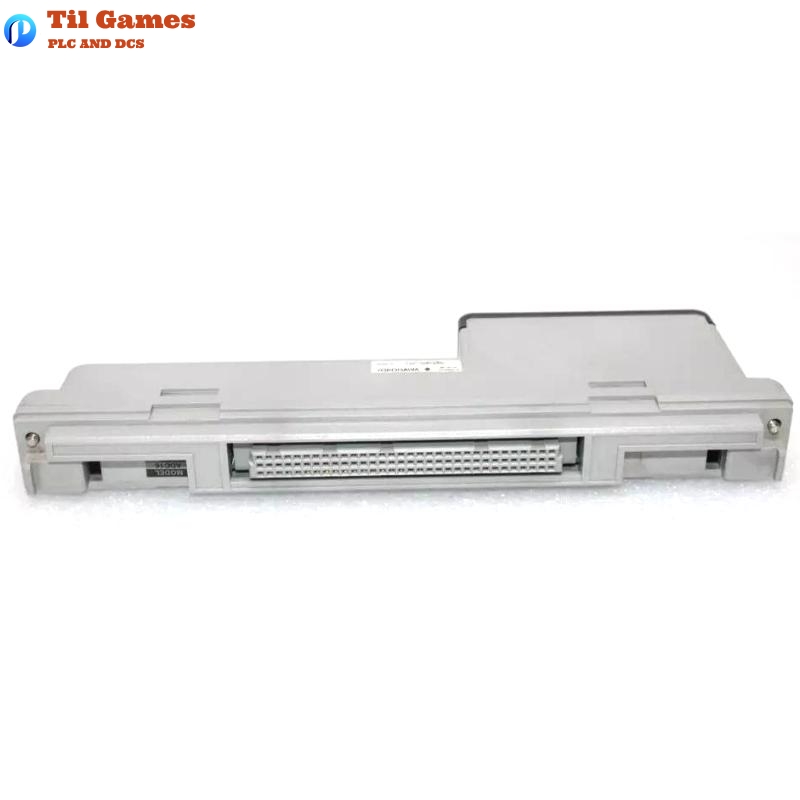

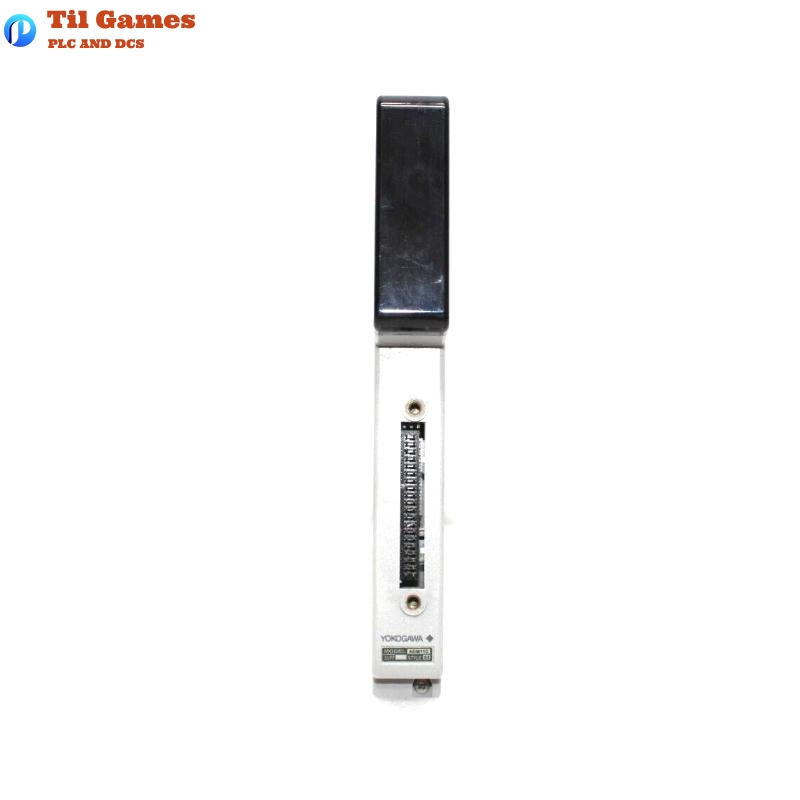

Yokogawa ADM11 Contact Input Module

FAQs

1. What is the maximum number of I/O points for the ADM11T module?

   • The ADM11T module has a total of 16 I/O points.

2. What type of input signal does the ADM11T accept?

   • The ADM11T accepts contact input signals with an OFF signal of 100 kΩ or more and an ON signal of 200 Ω or less.

3. What is the contact rating of the ADM11T module?

   • The contact rating is 5 V DC, 20 mA or more for the external contact.

4. How do I mount the ADM11T module?

   • The ADM11T module is installed in the I/O module nest and connected to the terminal with M4 screws.

5. What is the current consumption of the ADM11T module?

   • The current consumption is 600 mA or less (5.0 V DC).

6. What kind of insulation does the ADM11T provide?

   • Each point is insulated from the common minus side every 16 points.

7. What are the dimensions and weight of the ADM11T?

   • The dimensions are 125 x 130 x 248 mm, and the weight is 0.14 kg.

8. What functions does the ADM11T support?

   • The ADM11T supports status input, push-button input, detection of ON/OFF status, and the counting of push-button edges.

ADM11 Contact Input Module Yokogawa
