Technical Specifications
| Item | Description |
|---|---|

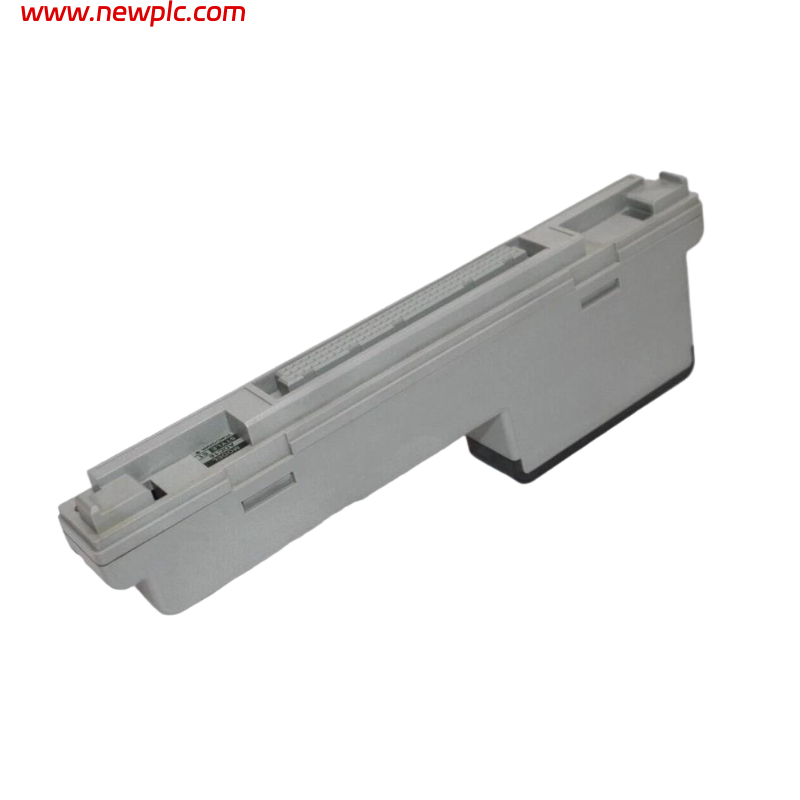

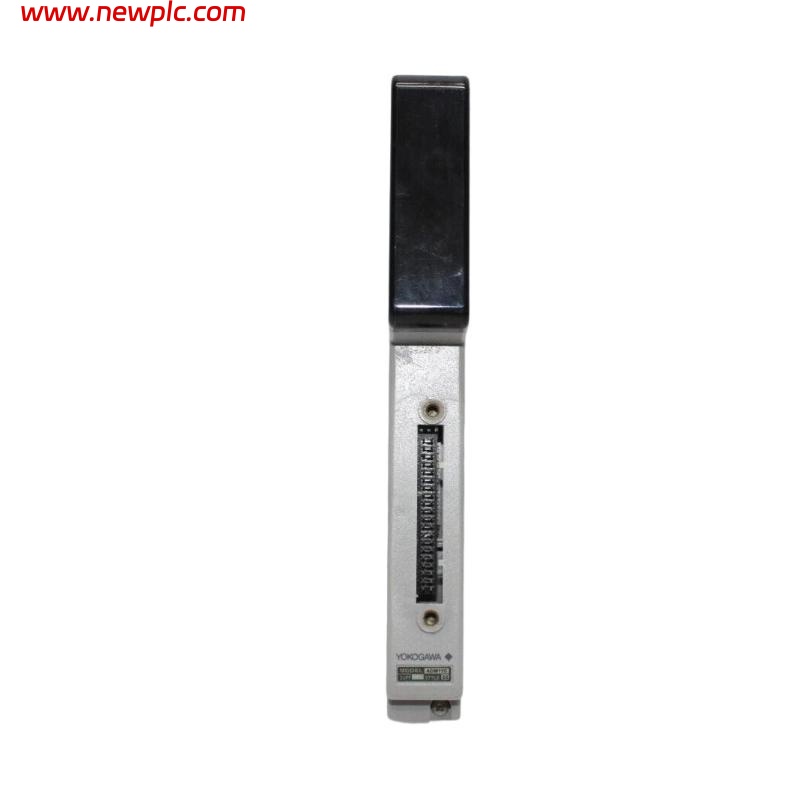

| Model | Yokogawa ADM11C-S2 |
| Product Name | Contact Input Module |
| Manufacturer | Yokogawa Electric Corporation |
| Input Channels | 16 channels (isolated inputs) |
| Input Type | Dry contact input (voltage detection type) |
| Rated Input Voltage | 24 VDC (typical) |
| Input Current | Approx. 2.5 mA per channel |
| Input Isolation | Optically isolated, 1500 VAC between channels |
| Input Delay Time | ≤10 ms (typical) |
| Channel Status Indication | Each channel has an LED status indicator |
| Power Consumption | Approx. 3.5 W |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –20°C to +70°C |
| Humidity Range | 10% to 90% RH (non-condensing) |
| Housing Material | Industrial-grade flame-retardant plastic |
| Mounting Method | Modular DIN rail mounting |
| Protection Rating | IP20 (for cabinet installation) |
| Dimensions | 120 x 30 x 40 mm |
| Weight | 0.14 kg |
FAQ
FAQ
Q1: What is the main function of the ADM11C-S2 module?
A1: The ADM11C-S2 module receives input signals from external switches, contacts, or relays and converts them into logic input signals for the control system.
Q2: What is the difference between ADM11C-S2 and ADM11-S2?
A2: The ADM11C-S2 version includes LED indicators for each input channel, making it easier to monitor signal status in the field.
Q3: How many input channels does the module provide?
A3: It provides 16 independent input channels.
Q4: What is the rated input voltage?
A4: The standard rated input voltage is 24 VDC.
Q5: What type of isolation does the module use?
A5: It uses optical isolation with 1500 VAC isolation voltage between channels and ground.
Q6: What is the typical input current per channel?
A6: Approximately 2.5 mA per channel.
Q7: How is the module installed?
A7: It is designed for DIN rail mounting inside control cabinets.
Q8: In what systems is the ADM11C-S2 typically used?
A8: It is widely used in Yokogawa DCS systems such as CENTUM VP for acquiring contact input signals from industrial field devices.
