Technical Specifications
| Item | Specification |
|---|---|

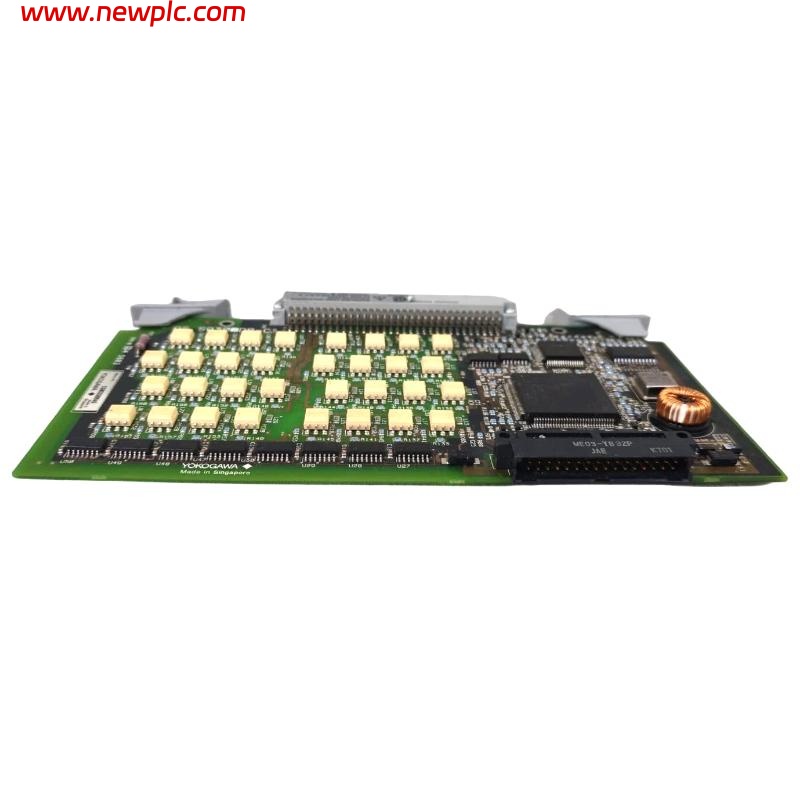

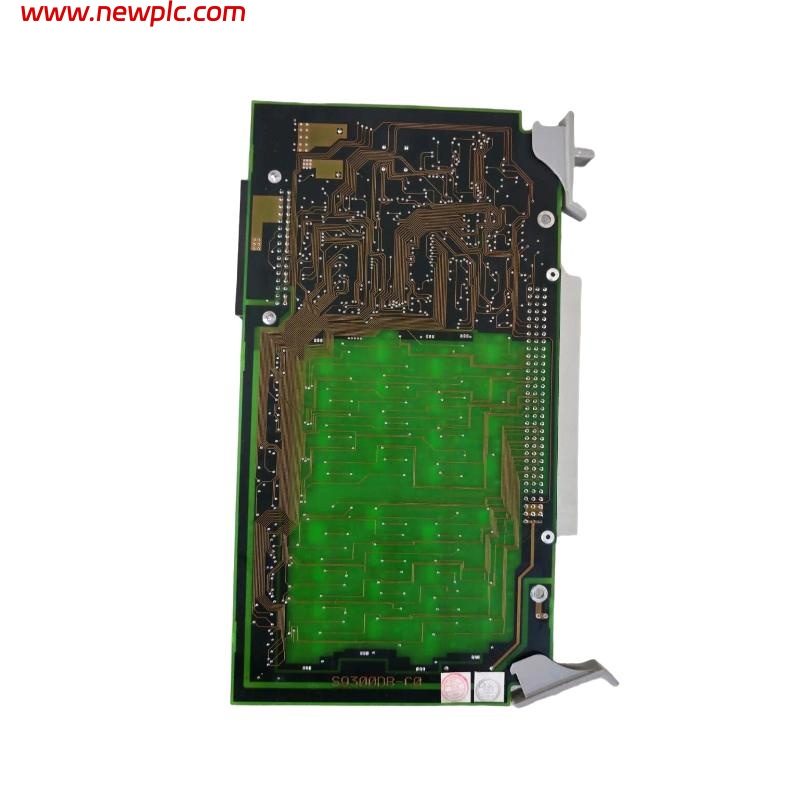

| Product Name | Yokogawa ADM52-1 Contact Output Module |
| Module Type | Contact Output Module |
| Number of Channels | 4 channels |
| Output Type | Dry contact (relay) |
| Rated Voltage | 250 V AC / 30 V DC |
| Rated Current | 2 A per channel |
| Response Time | ≤ 10 ms |
| Insulation Voltage | 500 V AC |
| Mounting Type | DIN rail or module slot |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity | 5 – 95% non-condensing |
| Dimensions | 125 x 130 x 248 mm |
| Weight | 2.0 kg |
FAQ
FAQ
Q1: What is the main function of the Yokogawa ADM52-1?
It is a contact output module used to convert control system signals into dry contact outputs to drive external devices.
Q2: How many channels does the module support?
This model supports 4 channels.
Q3: What is the output type?
The output type is dry contact (relay output).
Q4: What is the rated current per channel?
The rated current is 2 A per channel.
Q5: What is the response time of the module?
The response time is ≤ 10 ms.
Q6: How can the module be installed?
It can be mounted on a DIN rail or in a module slot.
Q7: What is the operating temperature range?
The operating temperature range is 0 °C to +55 °C.
Q8: Which industries is this module suitable for?
It is widely used in process control, factory automation, and industrial control systems.
