Technical Specifications
| Parameter | Specification |
|---|---|

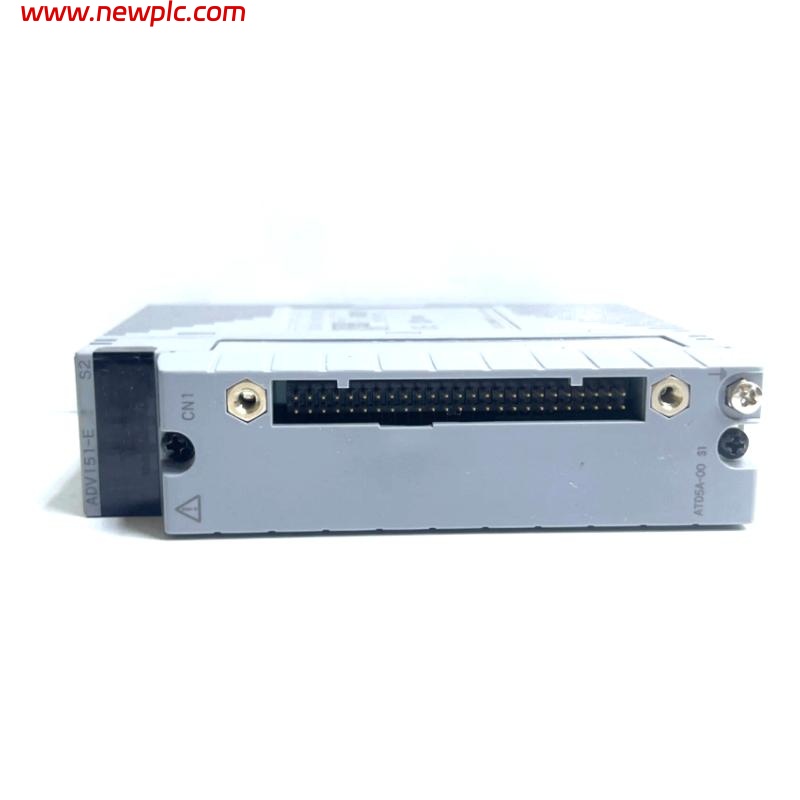

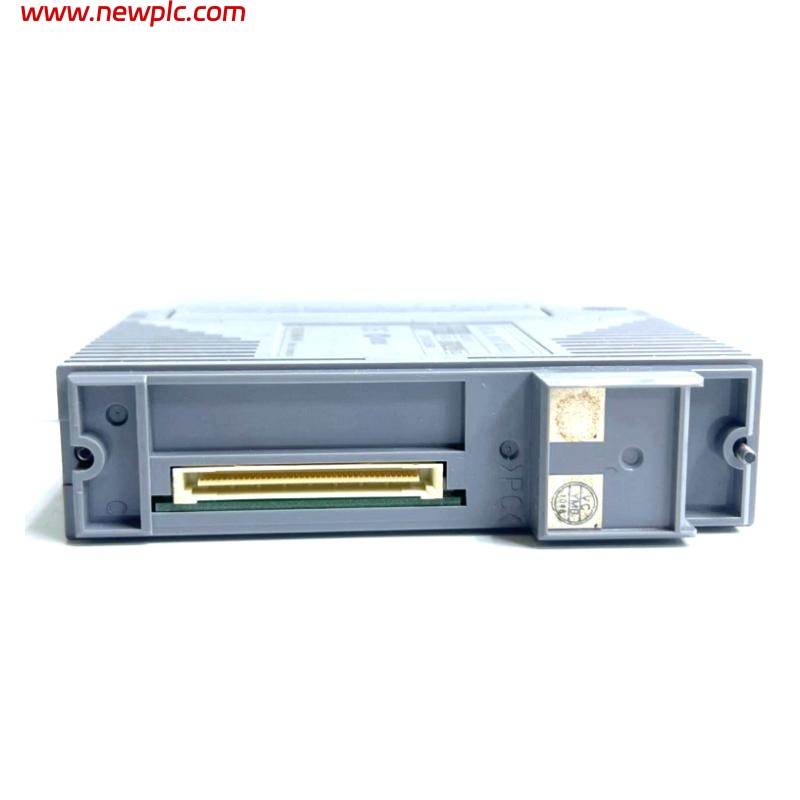

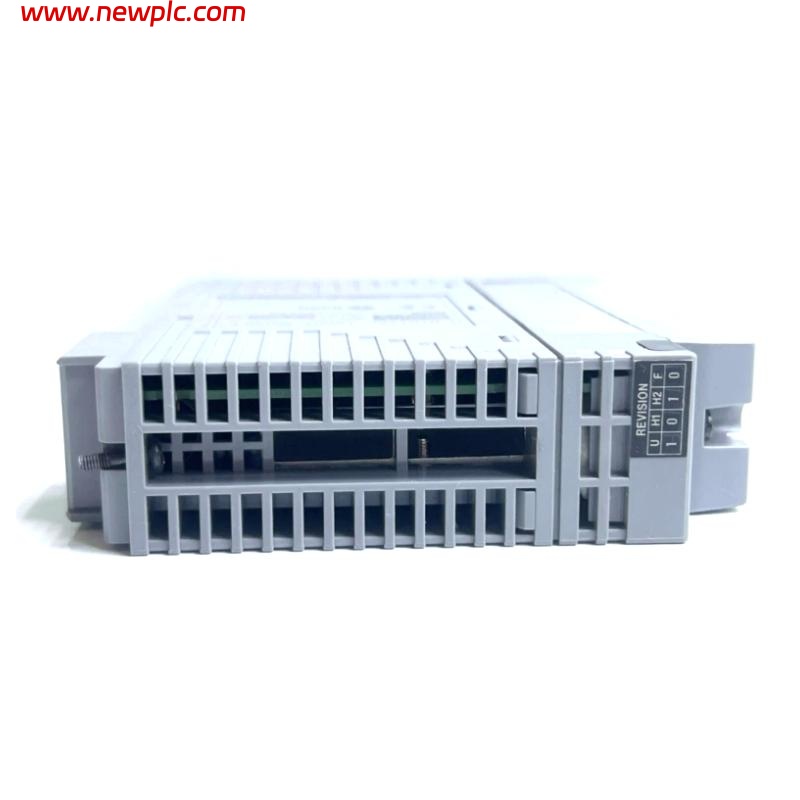

| Model | ADV151-E63 S2 Digital Input Module |
| Number of Input Channels | 32 |
| Rated Input Voltage | 24 V DC (sink/source) |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Input Current (at rated input voltage) | 4.1 mA ±20% / channel |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Withstanding Voltage | Between input signal and system: 2 kV AC for 1 min; Between commons: 500 V AC for 1 min (common every 16 channels) |
| Functions | Status input detection; Pushbutton edge counting; SOE capture |
| Input Response Time | ≤ 8 ms (status input) |
| Minimum ON Detection Time | 20 ms (pushbutton input) |
| Maximum ON/OFF Cycle | 25 Hz (pushbutton input) |
| Maximum Current Consumption | 500 mA (5 V DC) |
| External Connection | Pressure clamp terminal, dedicated cable (AKB331), MIL connector cable |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What is the number of input channels for the ADV151-E63 S2 module?
A1: It has 32 input channels.
Q2: What is the rated input voltage for this module?
A2: The rated input voltage is 24 V DC, supporting both sink and source types.
Q3: What is the input ON voltage range?
A3: The input ON voltage range is 18 to 26.4 V DC.
Q4: What is the maximum allowable input voltage?
A4: The maximum allowable input voltage is 30.0 V DC.
Q5: What special functions does the ADV151-E63 S2 provide?
A5: It provides status input detection, pushbutton edge counting, and SOE (Sequence of Events) capture.
Q6: How fast is the input response time?
A6: The input response time is 8 ms or less for status input.
Q7: What type of external connection interfaces are supported?
A7: It supports pressure clamp terminal, dedicated cable (AKB331), and MIL connector cable.
Q8: What are the module’s physical dimensions and weight?
A8: The dimensions are 107.5 × 130 × 32.8 mm, and the weight is 0.3 kg.
