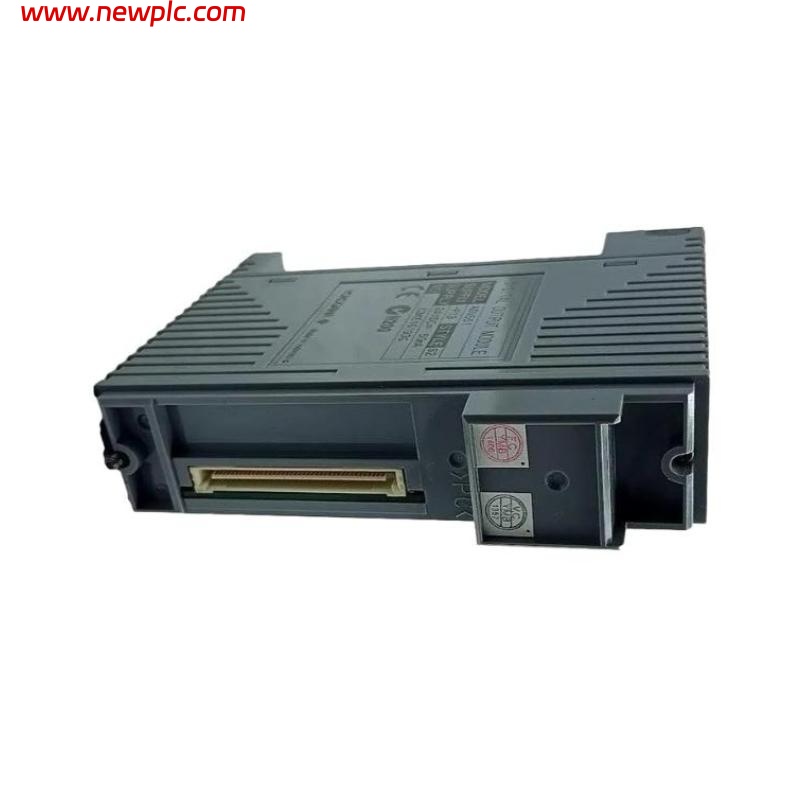

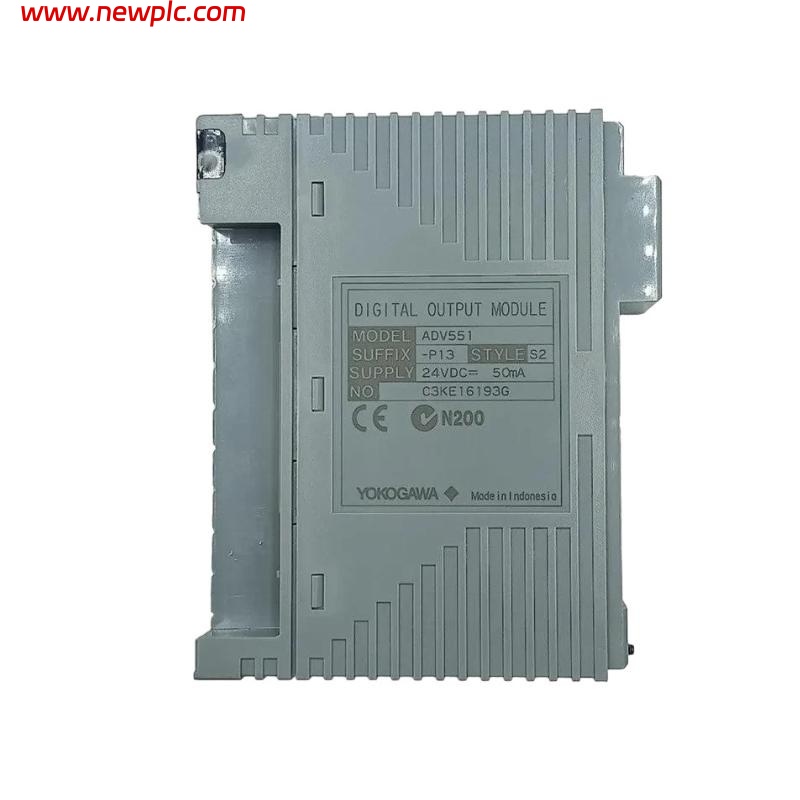

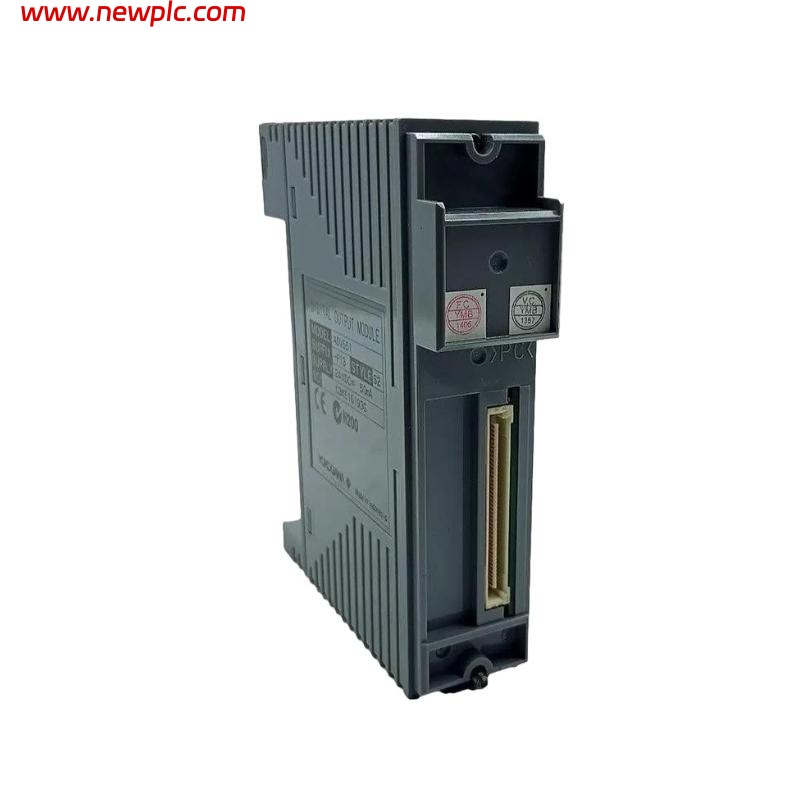

Yokogawa ADV551-P13 S2 Digital Output Modules

FAQ

Q1: What types of outputs does this module support?
A1: It supports transistor contact outputs (current sink type), suitable for controlling relays, indicators, and other devices.

Q2: What is the rated applied voltage of the module?
A2: The rated applied voltage is 24 V DC.

Q3: What is the maximum load current per output channel?
A3: The maximum load current per output channel is 100 mA.

Q4: What is the operating temperature range of the module?
A4: The operating temperature range is -20°C to +60°C.

Q5: What is the storage temperature range of the module?
A5: The storage temperature range is -40°C to +85°C.

Q6: What is the withstanding voltage of the module?
A6: The withstanding voltage is 2 kV AC (1 minute) between output and system; 500 V AC (1 minute) between commons.

Q7: What is the mounting method of the module?
A7: The module uses DIN rail mounting, facilitating installation in industrial control cabinets.

Q8: What are the dimensions and weight of the module?
A8: Dimensions are 1107.5 × 130 × 32.8 mm, weight is approximately 0.2 kg.

ADV551-P13 S2 Digital Output Modules Yokogawa
