Technical Specifications
| Item | Specification |
|---|---|

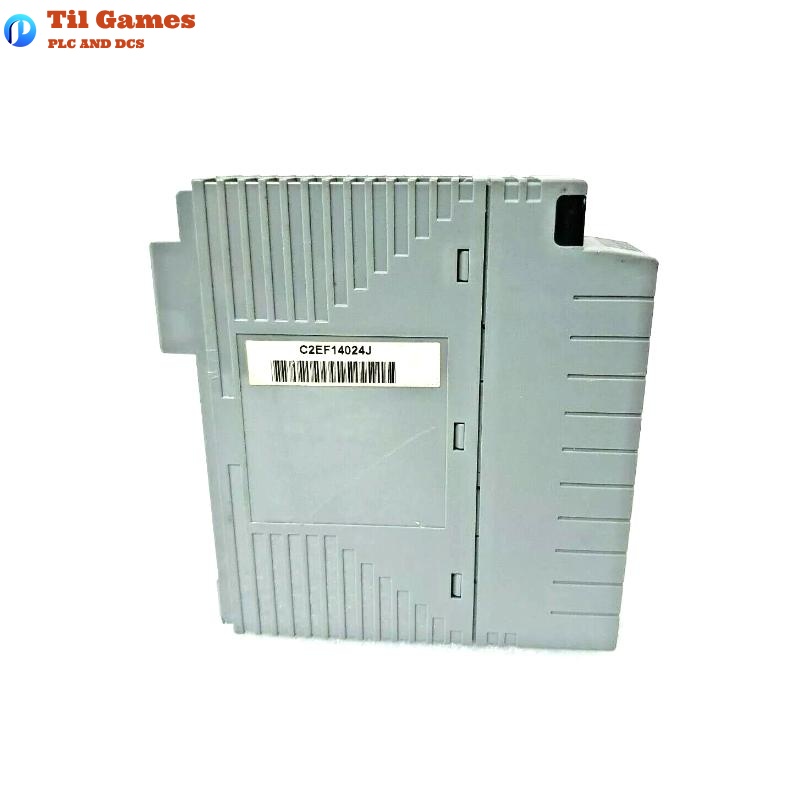

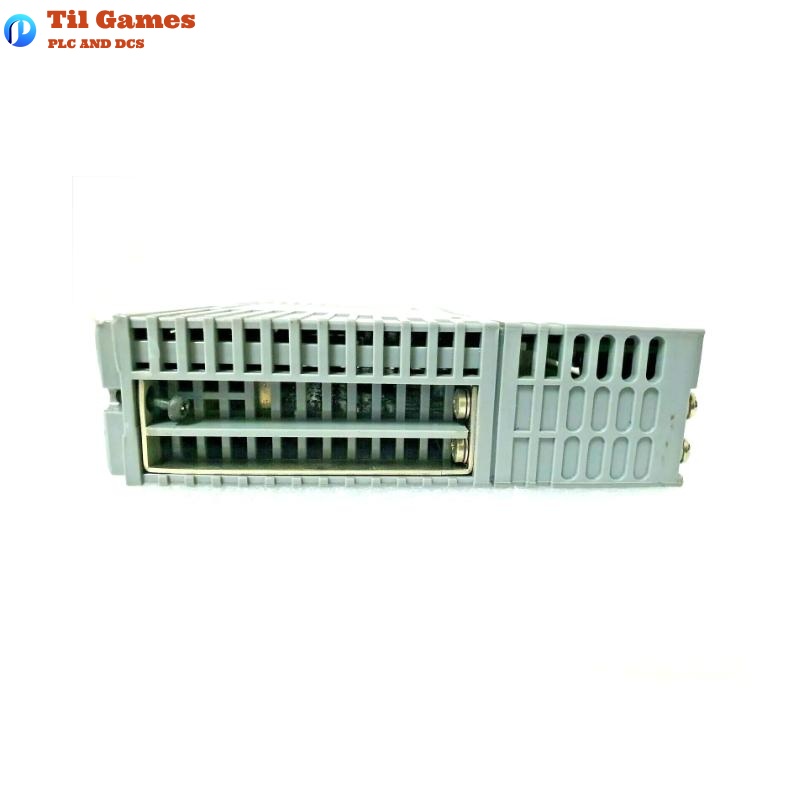

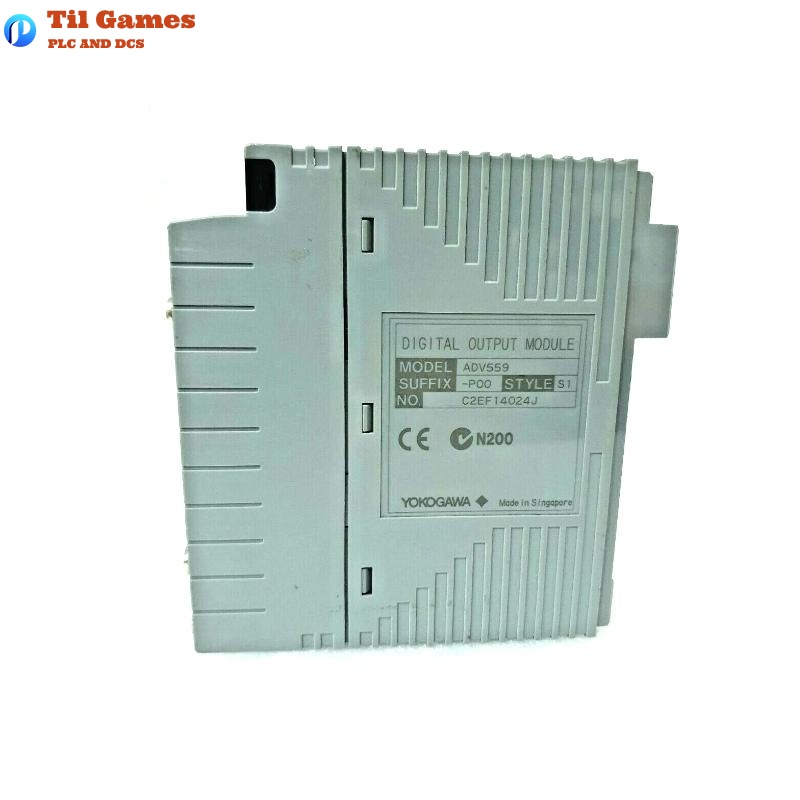

| Model | ADV559-P00 |
| Number of Output Channels | 32 channels |
| Output Signal Type | Transistor contact output |
| Output Contact Rating | Inductive/resistive load: 30 V DC, 100 mA |
| Output Response Time | 16 ms or less |
| Pulse Width | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms, with max 1 ms ON/OFF delay |
| Signal Isolation | Common every 16 channels |
| Max. Current Consumption | 570 mA (5 V DC) |
| External Connection | Dedicated cable (KS2) |
| Compatible Card | ST4 compatible |
| Dimensions | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the ADV559-P00 support?
A1: It supports 32 independent digital output channels.
Q2: What type of output does the module provide?
A2: It provides transistor contact-type digital output.
Q3: What is the maximum load per output channel?
A3: Each channel supports up to 100 mA at 30 V DC (resistive or inductive load).
Q4: Is there signal isolation for outputs?
A4: Yes, channels are isolated in groups of 16 with a common ground.
Q5: What is the minimum pulse width supported?
A5: The minimum supported pulse width is 8 milliseconds.
Q6: Are protection components needed?
A6: Yes, a diode should be added when driving DC relays to suppress back EMF.
Q7: What are the module dimensions and mounting compatibility?
A7: Dimensions are 130 x 127.2 x 32.8 mm, suitable for standard rack installation.
Q8: What type of external connection is used?
A8: The module uses a dedicated KS2 cable for external connections.
