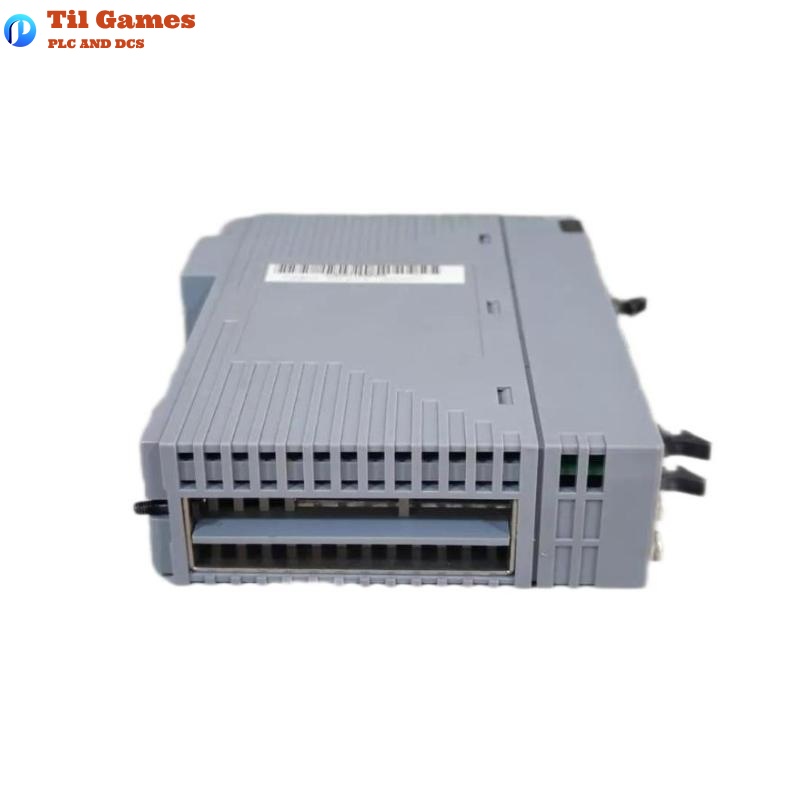

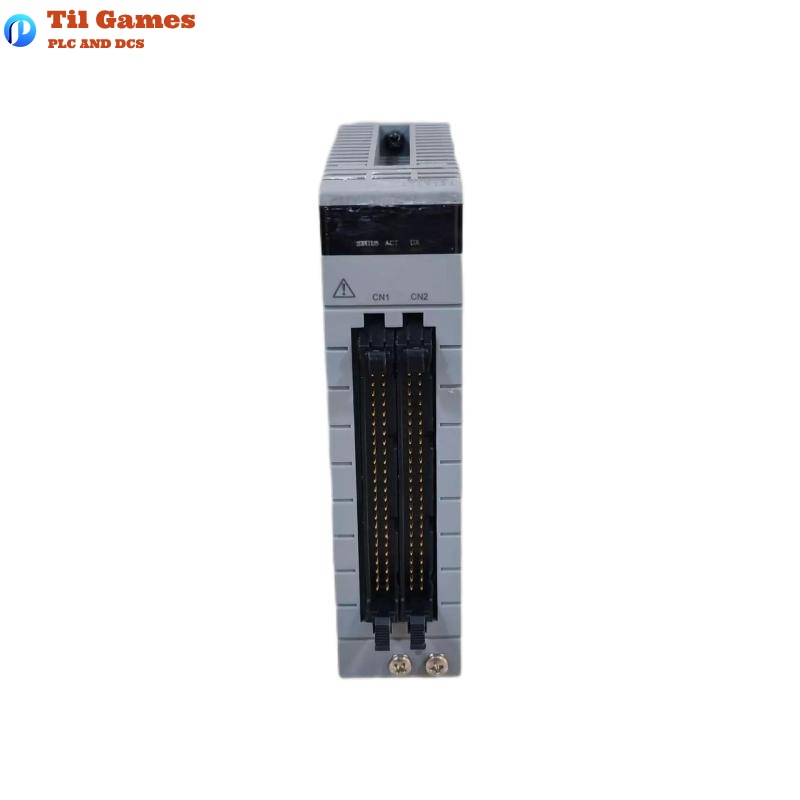

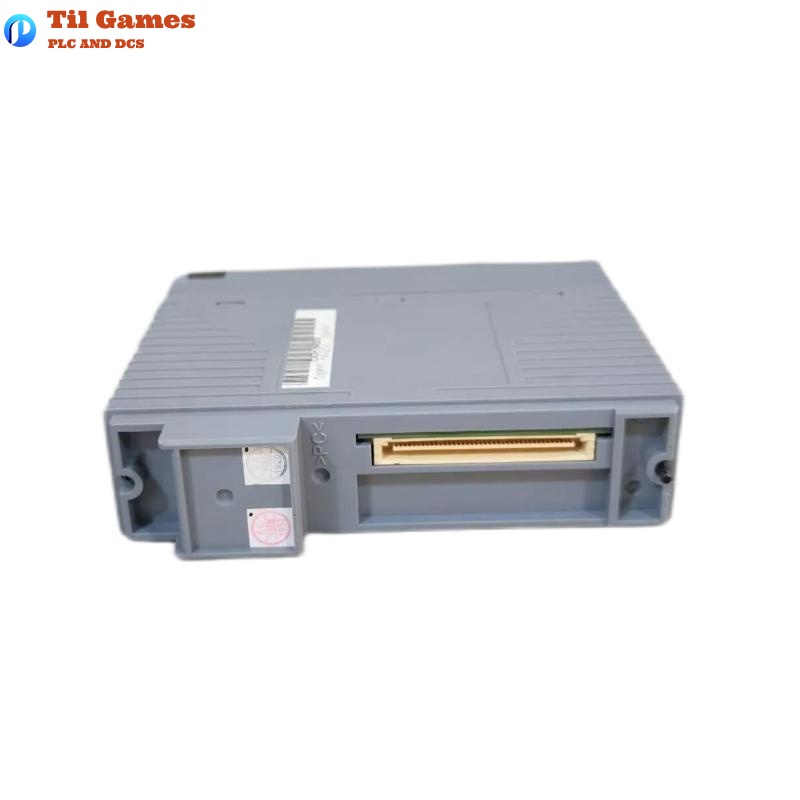

Technical Specifications
| Parameter | Description |
|---|---|
| Model | ADV561-P50 |
| Number of Output Channels | 64 channels |
| Rated Voltage | 24 V DC |
| External Power Supply Rating | 24 V DC, max 100 mA |
| External Power Voltage Range | 20.4 to 26.4 V DC |
| Max Output ON Voltage | 2 V DC |
| Max Leak Current (Output OFF) | 0.1 mA |
| Output Format | Current sink |
| Max Load Current per Channel | 100 mA (up to 26.4 V) |
| Withstanding Voltage | 2 kV AC (output-to-system), 500 V AC per 16 channels (common) |
| Status Output Function | Supported |
| Pulse Width Output Function | Supported (8 ms to 7200 s) |
| Time-Proportional Output Function | Supported |
| Output Response Time | ≤ 3 ms (status output), ≤ 10 ms (mixed output) |
| Pulse Width Resolution | 8 ms (plus max 1 ms delay) |
| Max Power Consumption | 700 mA (5 V DC), 120 mA (external power) |
| Dimensions | 130 × 119.9 × 32.8 mm |
| Weight | Approx. 0.3 kg |
| External Connection | Dedicated cable (AKB337), MIL connector cable |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of module is the ADV561-P50?
A1: It is a 64-channel digital output module for 24 V DC applications, used in Yokogawa’s FIO system.
Q2: Does this module support dual redundancy?
A2: Yes, the ADV561-P50 can be configured for dual redundancy with another identical module.
Q3: What is the maximum load current per channel?
A3: The maximum load current is 100 mA per channel, with up to 26.4 V DC.
Q4: Does the module support pulse output?
A4: Yes, it supports one-shot pulse width and time-proportional output functions.
Q5: What is the output response time of this module?
A5: The response time is ≤3 ms for status output and ≤10 ms for mixed output modes.
Q6: What are the module’s dimensions?
A6: The dimensions are 130 x 119.9 x 32.8 mm.
Q7: What are the available external connection options?
A7: It supports AKB337 dedicated cables and MIL connector cables.
Q8: How much isolation voltage can the module withstand?
A8: It can withstand 2 kV AC between output and system, and 500 V AC between commons every 16 channels.
