Technical Specifications
| Parameter | Specification |
|---|---|

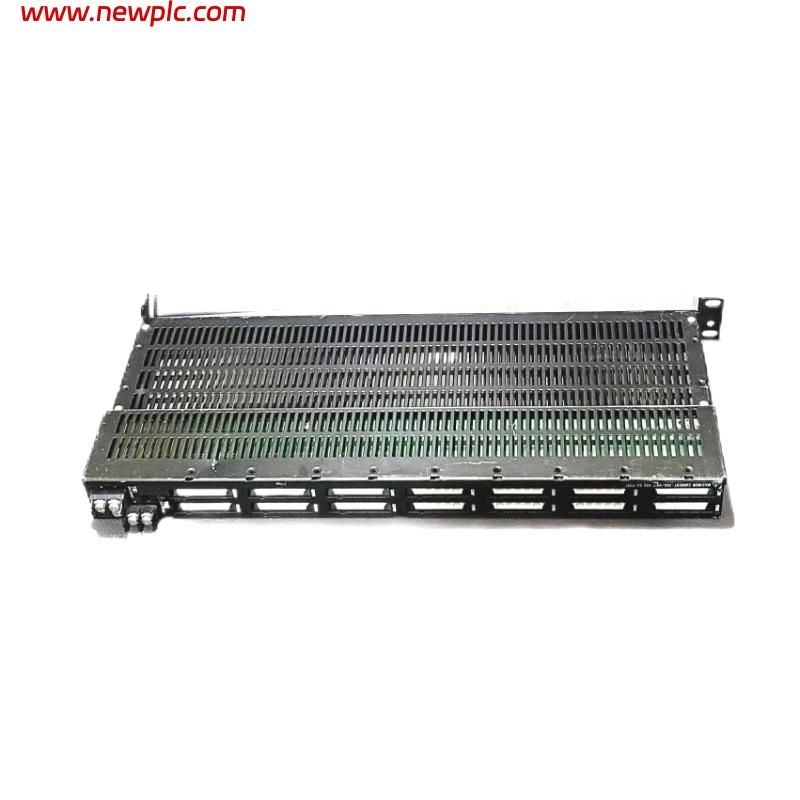

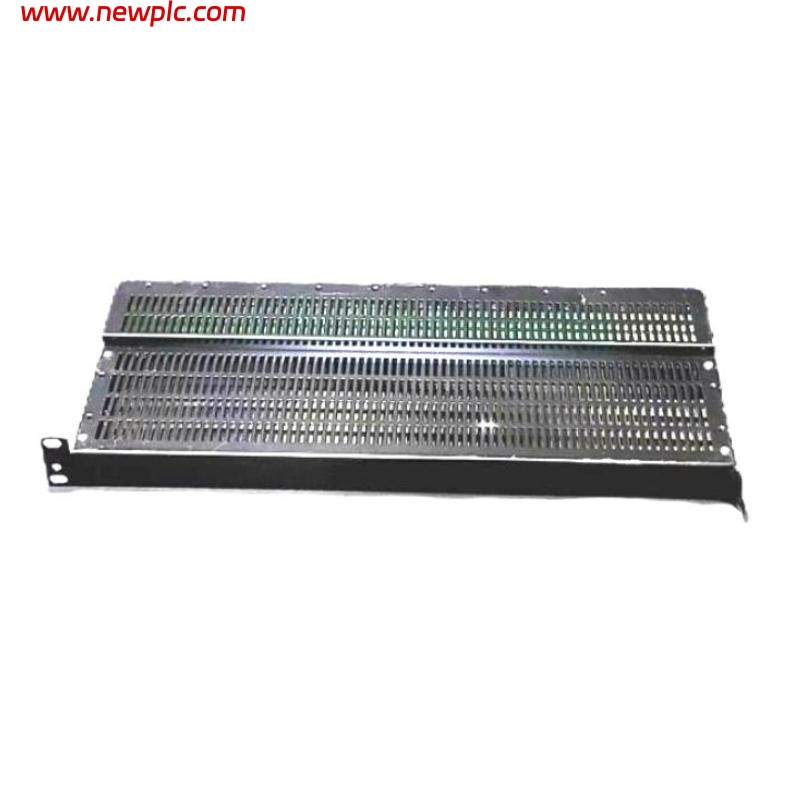

| Model | AEP7D Primary Power Supply Bus Unit |
| Input Power Supply Voltage | AEP7D-1: 100 to 120 V AC AEP7D-2: 220 to 240 V AC AEP7D-4: 24 V DC |
| Withstanding Voltage | AEP7D-1 / -2: 1500 V AC AEP7D-4: 500 V AC |
| Max. Input Current (Unit) | AEP7D-1 / -2: 20 A AEP7D-4: 30 A |
| Max. Input Current (Per Port) | AEP7D-1 / -2: 6 A AEP7D-4: 10 A |
| Output Ports | 14 total (7 ports for input A, 7 ports for input B) |
| Input Connections | Terminal A and B: L/N or ± (depending on model) |
| Output Connections | 5-pin MATE-N-LOK connectors |
| Operation Mode | Supports single or dual input (parallel for redundant output) |
| Mounting | Rack mountable |
| Dimensions | 482.6 × 43.6 × 187 mm |
| Weight | Approx. 1.8 kg |
FAQ
FAQ
Q1: What types of power input does the AEP7D support?
A1: It supports 100–120 V AC, 220–240 V AC, and 24 V DC, depending on the model suffix.
Q2: How many outputs can the AEP7D provide?
A2: It provides up to 14 output ports—7 from input A and 7 from input B.
Q3: Can both A and B inputs be used at the same time?
A3: Yes, they can be connected in parallel to deliver redundant power to all 14 outputs.
Q4: What is the maximum current per port?
A4: The maximum current is 6 A for AEP7D-1/-2 and 10 A for AEP7D-4.
Q5: Is the AEP7D rack mountable?
A5: Yes, it is designed for rack installation.
Q6: Are there different options for environmental protection?
A6: Yes, suffix codes include explosion-proof and ISA G3 standard options.
Q7: What is the primary function of the AEP7D?
A7: It distributes power to equipment within the same cabinet using a bus structure.
Q8: What connectors are used for output?
A8: The unit uses 5-pin MATE-N-LOK connectors for output connections.
