Technical Specifications
| Item | Description |
|---|---|

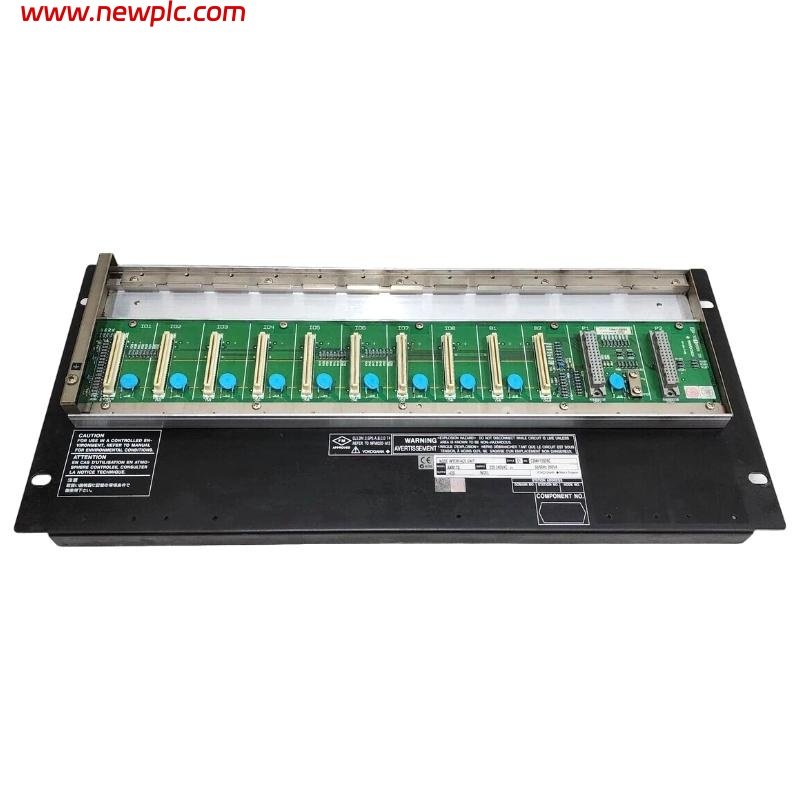

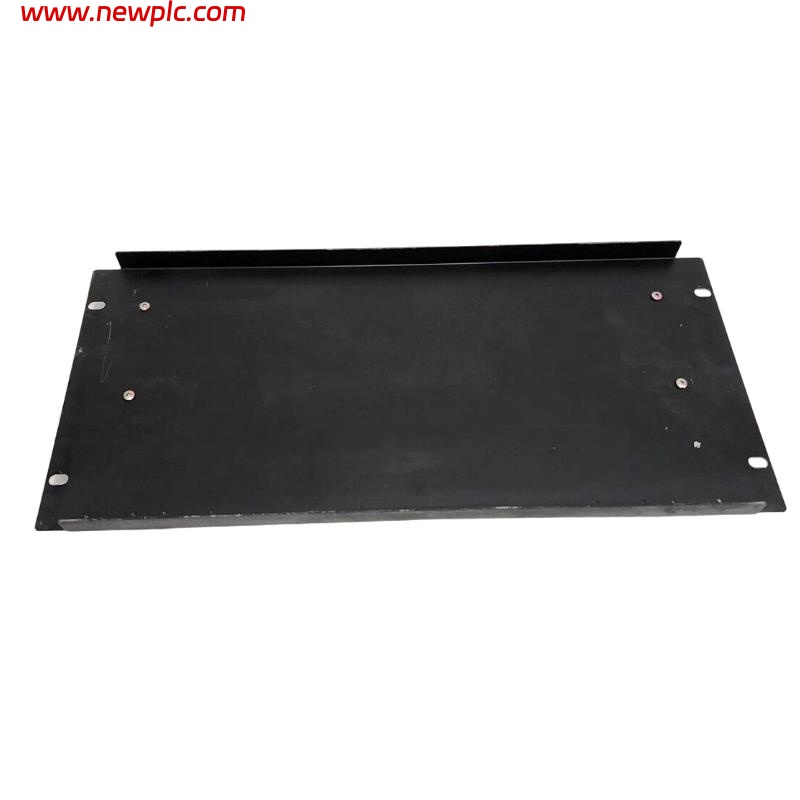

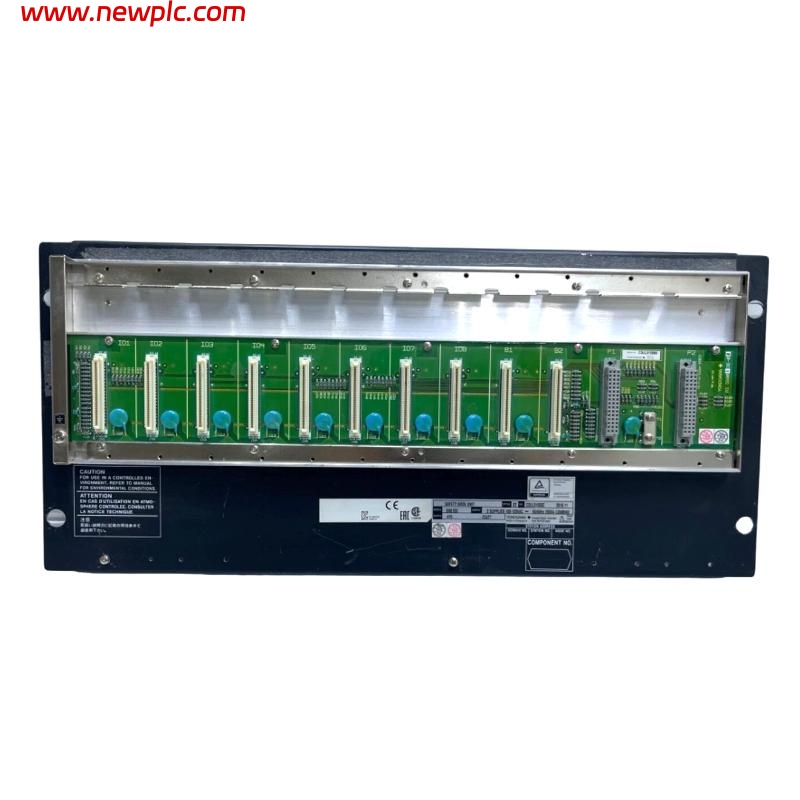

| Product Model | Yokogawa AFG10S |
| Product Type | Field Control Unit (FCU) |
| Manufacturer | Yokogawa Electric Corporation |
| Function | Controls field I/O devices and executes process control functions in distributed control systems |
| System Compatibility | CENTUM VP / CS 3000 |
| Processor Type | 32-bit high-performance processor |
| Memory Capacity | 16 MB main memory |
| Communication Interface | Vnet/IP network communication |
| Supported Protocols | TCP/IP, UDP, SNTP |
| Power Supply Voltage | 24 V DC (redundant power supported) |
| Power Consumption | Approx. 30 W |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Mounting Type | Mounted on a system backplane |
| I/O Module Support | Supports both analog and digital I/O modules |
| Dimensions | 207 × 265.9 x 482.6 mm |
| Weight | 8.0 kg |
| Material | Aluminum and high-durability plastic housing |
| Certifications | CE, UL, CSA, and RoHS compliant |
FAQ
FAQ
Q1: What is the primary function of the Yokogawa AFG10S Field Control Unit?
A1: The AFG10S serves as a key component in Yokogawa’s distributed control systems, executing control logic and managing field I/O modules.
Q2: Which control systems is the AFG10S compatible with?
A2: It is compatible with Yokogawa CENTUM VP and CS 3000 control systems.
Q3: What type of communication network does it use?
A3: The AFG10S uses Vnet/IP for high-speed and reliable data communication.
Q4: Does the AFG10S support redundant power supply?
A4: Yes, it supports dual 24 V DC redundant power inputs for system reliability.
Q5: How is the module installed?
A5: It is mounted directly onto a system backplane within the control cabinet.
Q6: What is the operating temperature range of this unit?
A6: The AFG10S can operate within a temperature range of 0°C to +55°C.
Q7: What types of I/O modules are supported?
A7: It supports both analog and digital I/O modules for flexible field control applications.
Q8: Is the AFG10S compliant with international standards?
A8: Yes, it meets CE, UL, CSA, and RoHS compliance standards.
