Technical Specifications
| Parameter | Description |
|---|---|
| Model | AFS10D |

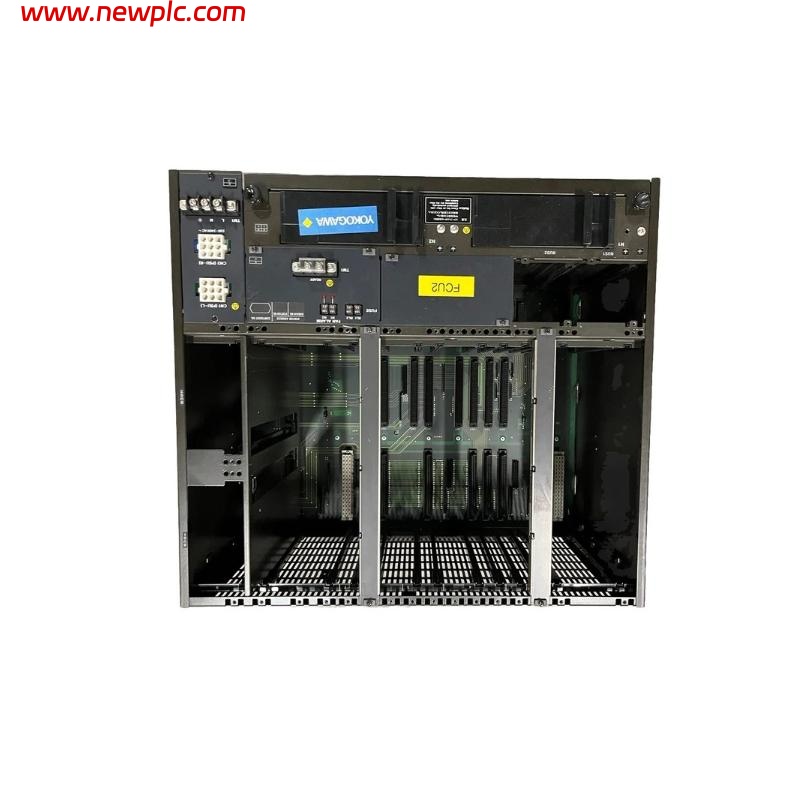

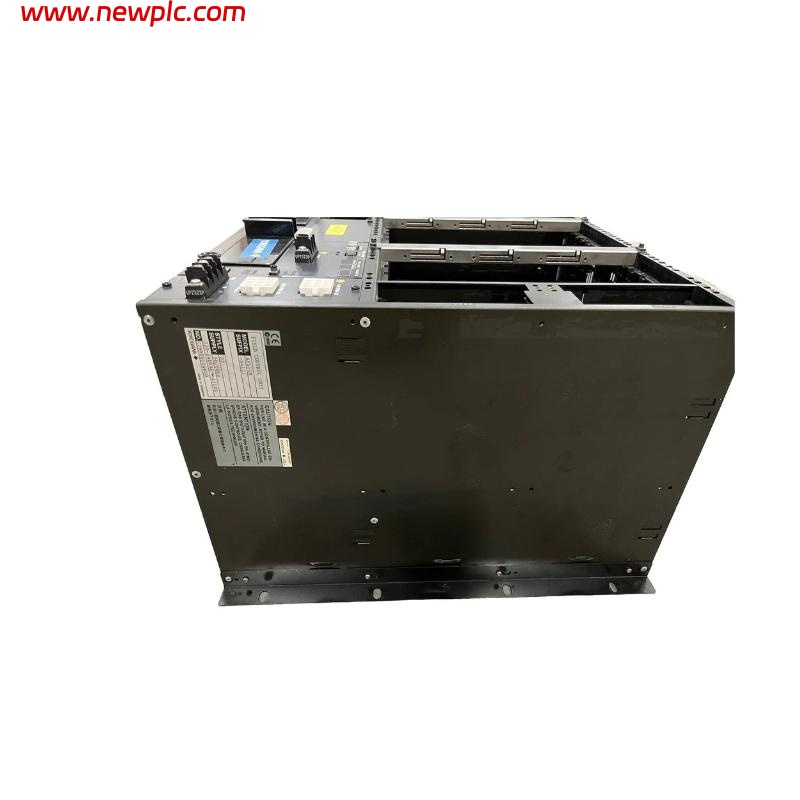

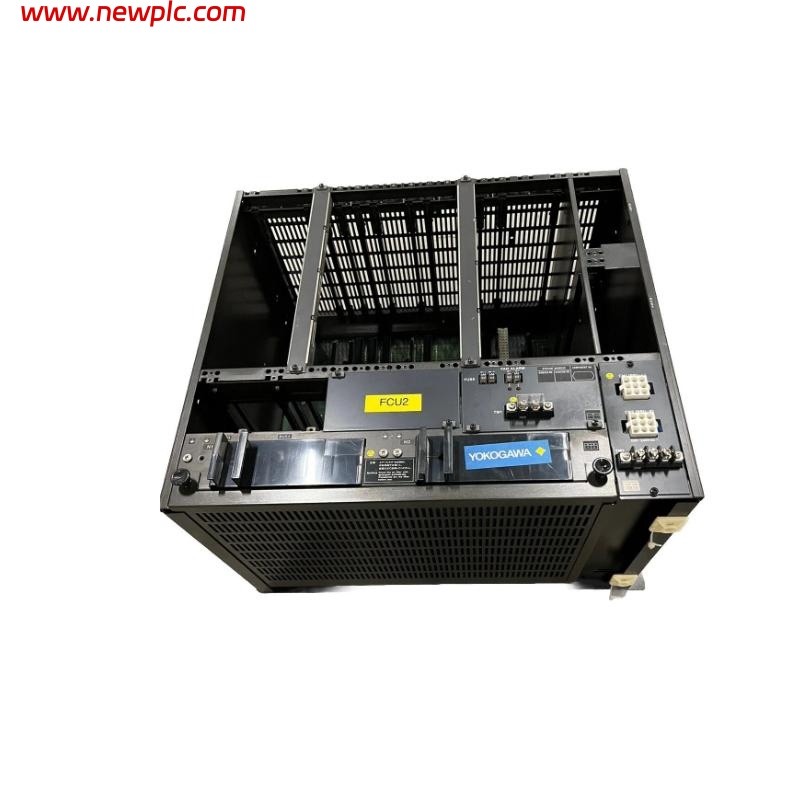

| Type | Duplexed Field Control Unit (FCU) |
| Mounting Style | 19-inch Rack Mountable Type |
| Control Network | V net (real-time control network) |
| I/O Connection | Remote I/O (RIO) via RIO Bus |
| Control Function | Standard control for RIO-based systems |
| Main Memory | 16 MB |
| Redundancy | Duplexed configuration (CPU and power redundancy supported) |
| Communication Bus | RIO Bus, dual-redundant |
| No. of Communication Nodes | Up to 8 nodes |
| Transmission Speed | 2 Mbps |
| Transmission Cable | Twisted-pair or optical fiber (via bus repeaters) |
| Transmission Distance | Max. 750 m (twisted-pair); up to 4 km (optical repeater) |
| Installation Environment | 0–50 °C, 10–90% RH, no condensation |
| Power Supply Options | 100–120 V AC, 220–240 V AC, or 24 V DC ±10% |
| Dimensions (W × H × D) | 207 × 265.9 × 482.6 mm |
| Weight | 8 kg |
FAQ
FAQ
Q1: What communication methods does AFS10D support?
A1: AFS10D communicates with other system components via V net and uses RIO bus for dual-redundant I/O communication.
Q2: Does AFS10D support redundancy?
A2: Yes, AFS10D supports full duplex redundancy, including redundant CPUs and power modules for enhanced reliability.
Q3: What applications is the AFS10D suitable for?
A3: It is ideal for process automation in industries such as petrochemical, power generation, pharmaceuticals, food and beverage, steel, and water treatment.
Q4: What is the maximum number of communication nodes supported?
A4: The AFS10D supports up to 8 remote I/O communication nodes.
Q5: What is the communication distance supported by AFS10D?
A5: It supports up to 750 meters with twisted-pair cable and up to 4 kilometers with optical fiber and repeaters.
Q6: What is the mounting method for AFS10D?
A6: It is designed for standard 19-inch rack mounting, suitable for industrial control cabinets.
Q7: Is AFS10D compliant with international standards?
A7: Yes, it complies with international standards including IEC, CE, CSA, and EMC regulations.
Q8: What is the operating temperature range of AFS10D?
A8: The operating range is 0 to 50°C with 10–90% RH, operating reliably under non-condensing conditions.
