Technical Specifications
| Parameter | Description |
|---|---|

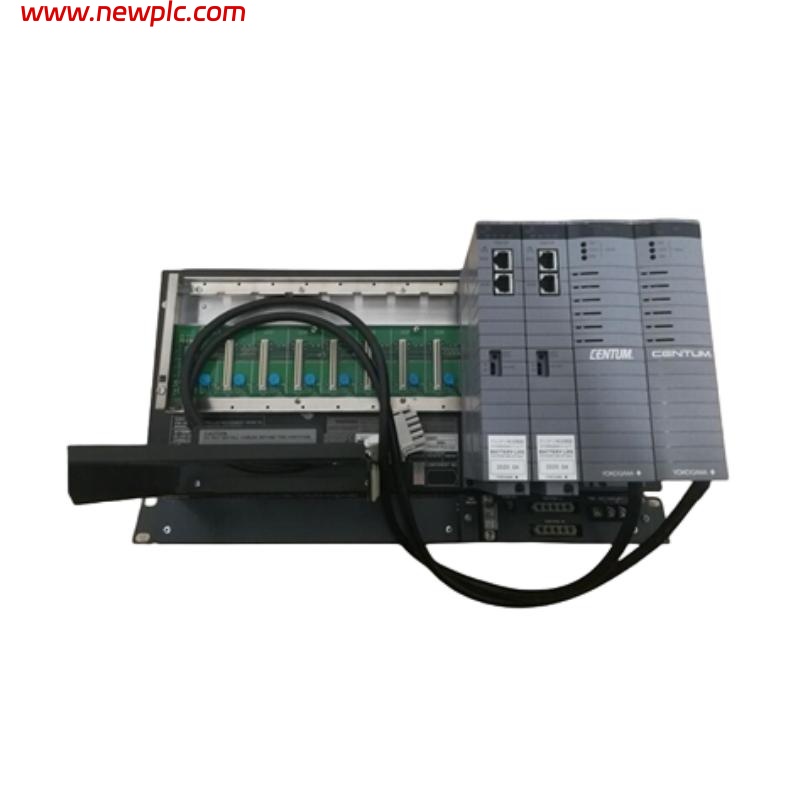

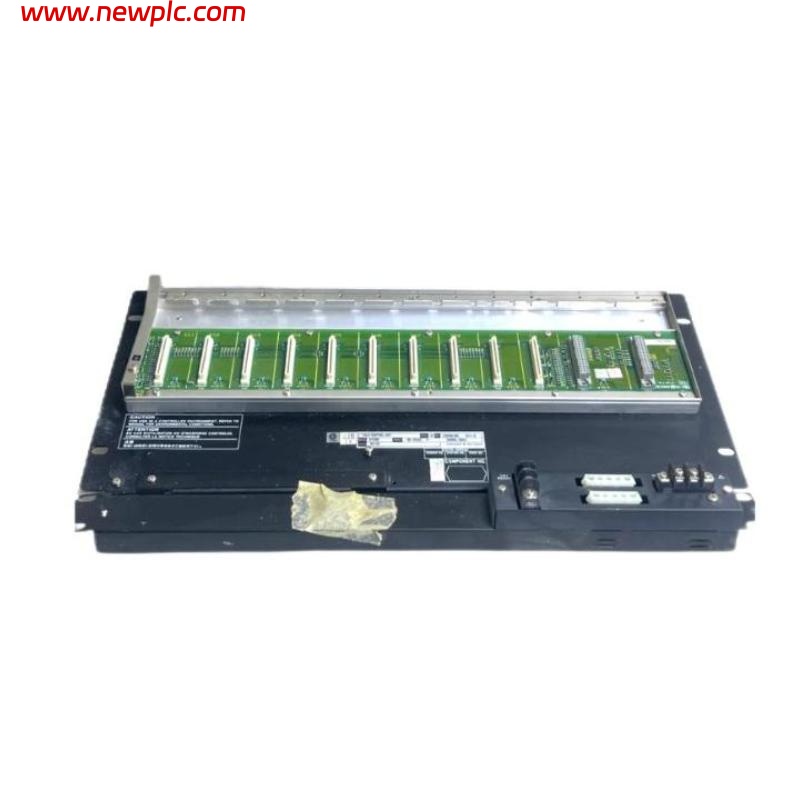

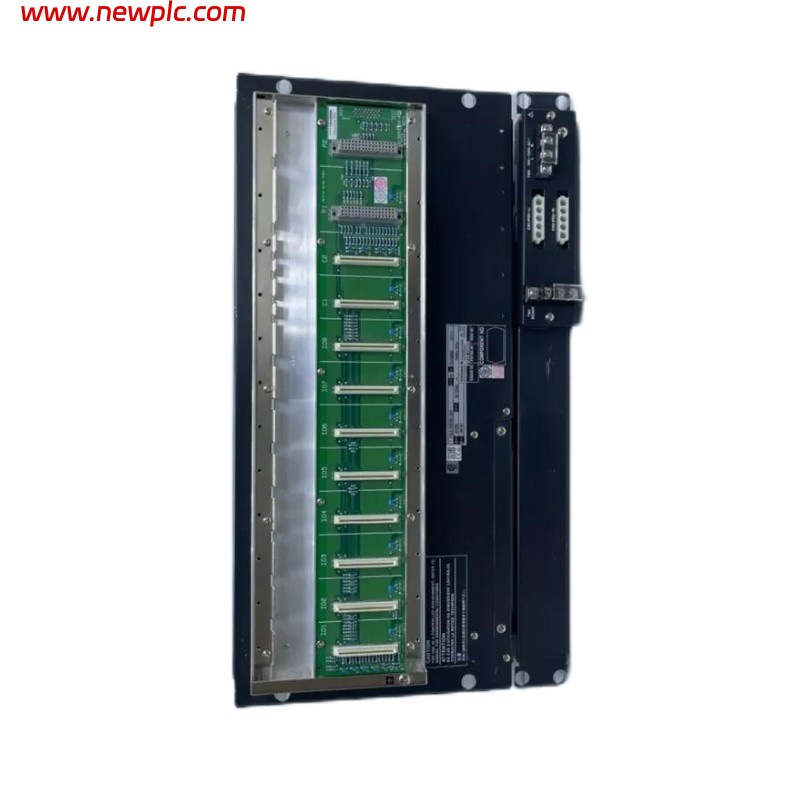

| Model | AFV30D |
| Type | Duplexed Field Control Unit |
| Mounting | 19-inch rack mountable |
| Network Interface | Vnet/IP (dual-redundant gigabit Ethernet-based control network) |
| I/O Bus | ESB Bus / Optical ESB Bus |
| Max ESB/Optical ESB Nodes | Up to 13 (with LFS1750-V21 node expansion) |
| Transmission Speed (ESB Bus) | 128 Mbps |
| Transmission Topology | Bus topology (dual-redundant or single) |
| Transmission Distance | Max. 10 m (YCB301), up to 50 km with Optical ESB Repeater Modules |
| Supported Cables | YCB301 for ESB / Quartz single-mode optical fiber (LC connector) |
| Processor Configuration | Dual-redundant |
| Power Supply | 100-120V AC ±10%, 220-240V AC ±10%, or 24V DC ±10% |
| Dimensions (W×H×D) | 207 × 265.9 × 482.6 mm |
| Weight | 8.0 kg |
| Operating Temperature | 0 – 50°C |
| Operating Humidity | 10–90% RH (non-condensing) |
| Compliance | CSA, CE, EAC, FM Non-Incendive, Type n and i for Hazardous Location |
FAQ
FAQ
Q1: What communication protocol does the AFV30D support?
A1: It supports Yokogawa’s Vnet/IP, a dual-redundant gigabit Ethernet-based real-time control network.
Q2: Is the AFV30D configured for redundancy?
A2: Yes, AFV30D is fully duplexed including processor, communication, and power modules.
Q3: How many ESB or Optical ESB nodes can the AFV30D connect to?
A3: With the LFS1750-V21 node expansion package, it supports up to 13 ESB/Optical ESB node units.
Q4: How is the AFV30D installed?
A4: It is rack-mounted in a standard 19-inch enclosure, suitable for integration into industrial control cabinets.
Q5: What is the maximum transmission distance supported?
A5: Up to 10 meters with standard YCB301 cables, or up to 50 kilometers using optical repeater modules.
Q6: Is the AFV30D certified for hazardous environments?
A6: Yes, it complies with FM and CSA non-incendive standards and supports Type n and intrinsic safety (Type i).
Q7: What power input options are supported?
A7: The unit accepts 100-120V AC, 220-240V AC, and 24V DC inputs with ±10% voltage tolerance.
Q8: What are the operating environment requirements?
A8: Operating temperature is 0 to 50°C with relative humidity from 10–90% (non-condensing), making it suitable for industrial use.
