Technical Specifications
| Parameter | Value |
|---|---|

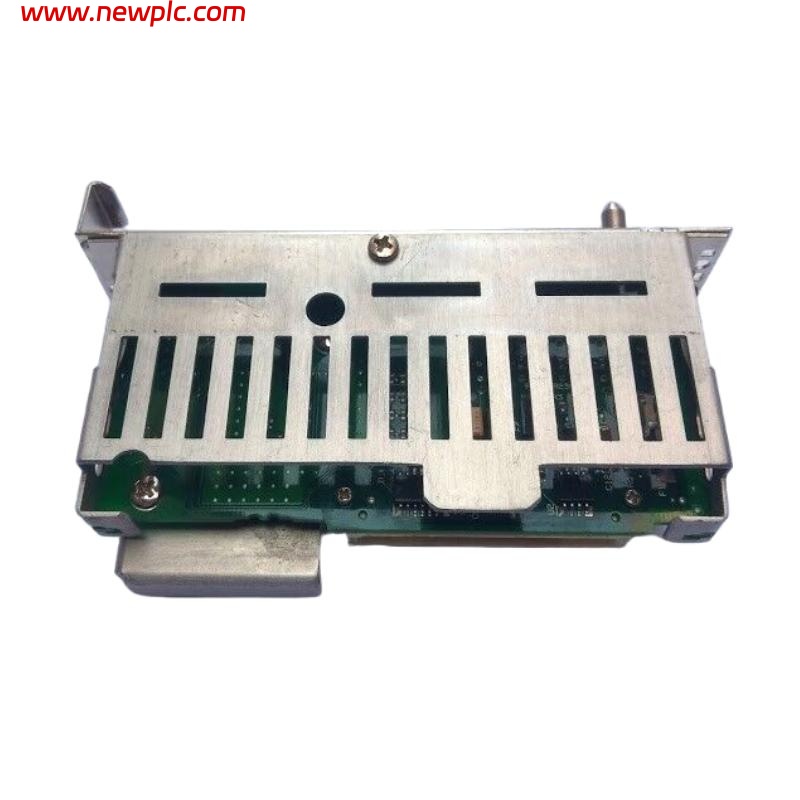

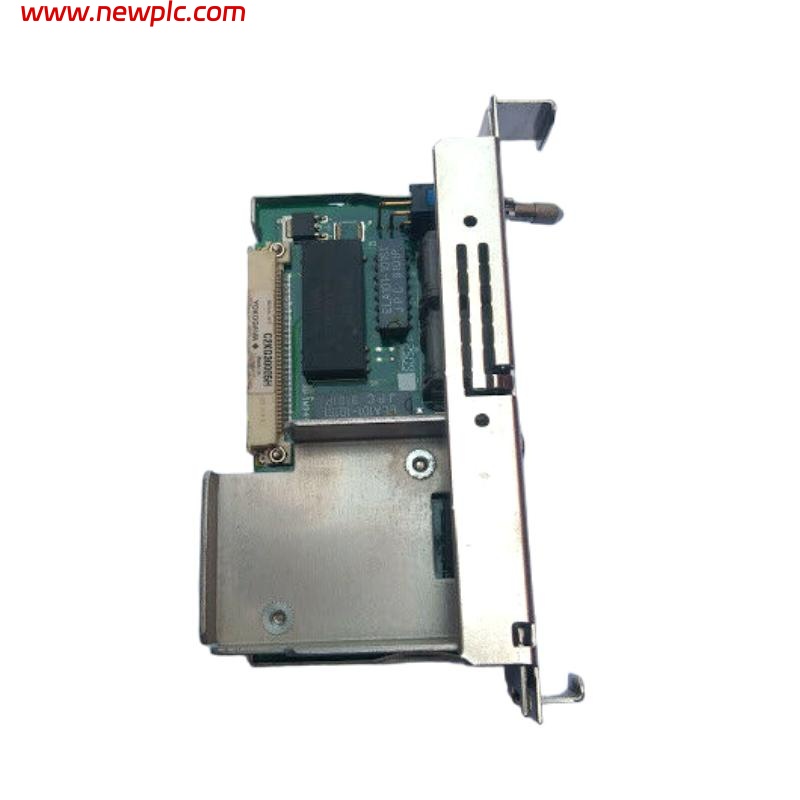

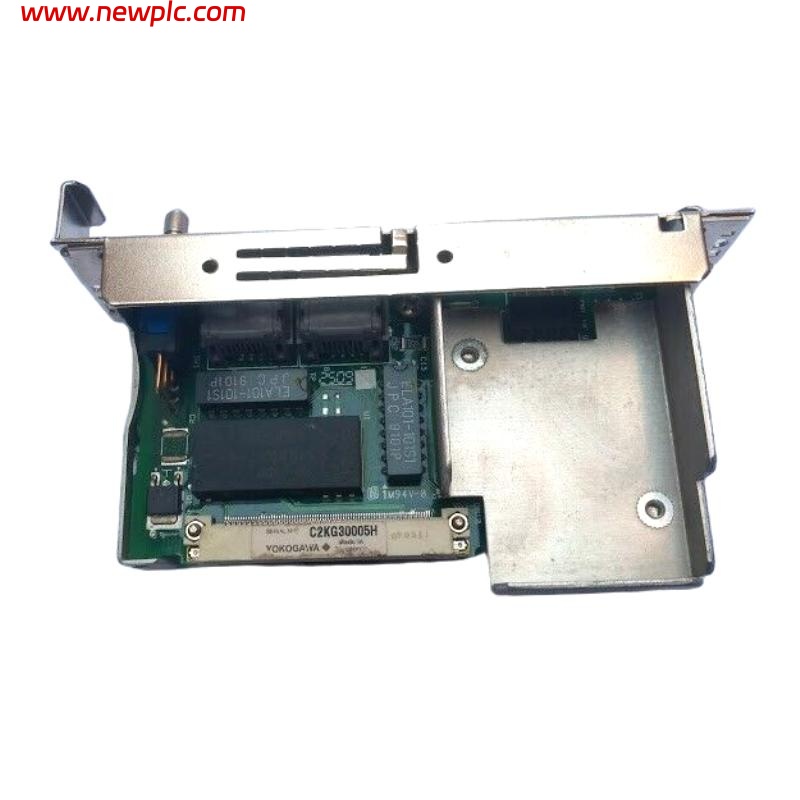

| Product Model | Yokogawa AIP504-11 S1 V Net Coupler Unit |
| Function | V net communication coupler for reliable data exchange |
| Supported Protocol | V net (redundant network system) |
| Power Supply | 24 V DC (typical) |
| Power Consumption | 5 W |
| Operating Temperature | 0 – 55 °C |
| Storage Temperature | -20 – 70 °C |
| Humidity Range | 10 – 90 % RH (non-condensing) |
| Dimensions | 200 × 130 × 40 mm |
| Weight | 0.5 kg |
| Mounting | DIN rail or panel mounting |
| Interface Type | Dual redundant communication ports |
| Cooling Method | Natural air cooling |
FAQ
FAQ
Q1: What is the primary application of this module?
A1: It is mainly used for V net network redundancy coupling to ensure stable data transfer between control systems.
Q2: Does the unit support redundant configuration?
A2: Yes, it supports redundant architecture to enhance reliability and fault tolerance.
Q3: What are the power input requirements?
A3: It is recommended to use a 24 V DC power supply, with power consumption 5 W.
Q4: What is the operating temperature range?
A4: The module can operate within a temperature range of 0 to 55 °C.
Q5: What installation options are available?
A5: It supports both DIN rail and panel mounting to fit various site requirements.
Q6: What are the features of the communication interface?
A6: Equipped with dual redundant ports to ensure continuity and reliability of communication.
Q7: Is additional cooling equipment required?
A7: No, the module is designed with natural air cooling and does not need extra cooling devices.
Q8: What is the weight of the unit?
A8: The weight is 0.5 kg, making it lightweight and easy to install or maintain.
