Technical Specifications
| Parameter | Specification |
|---|---|

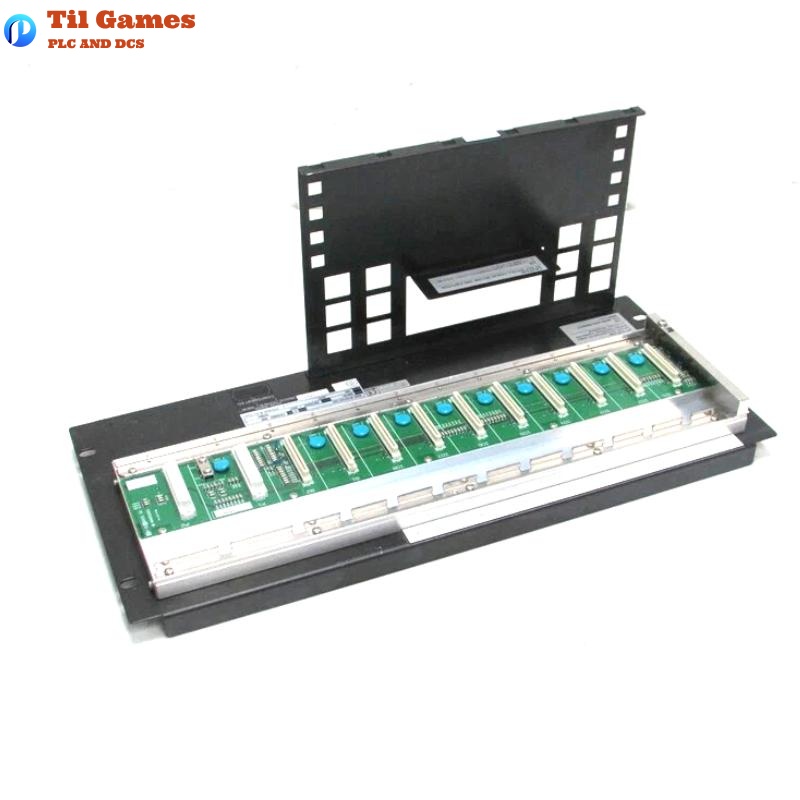

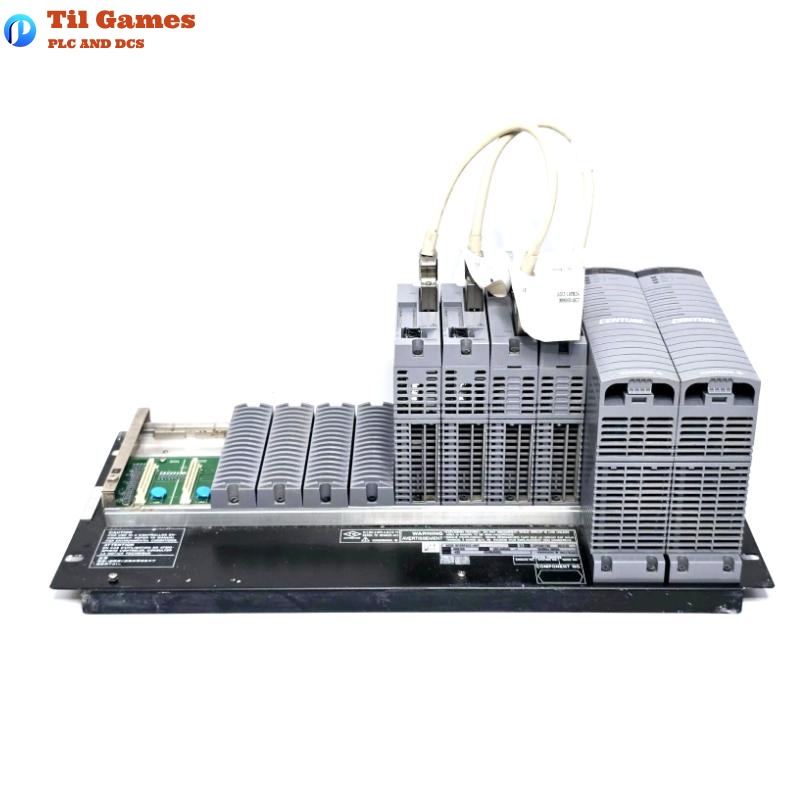

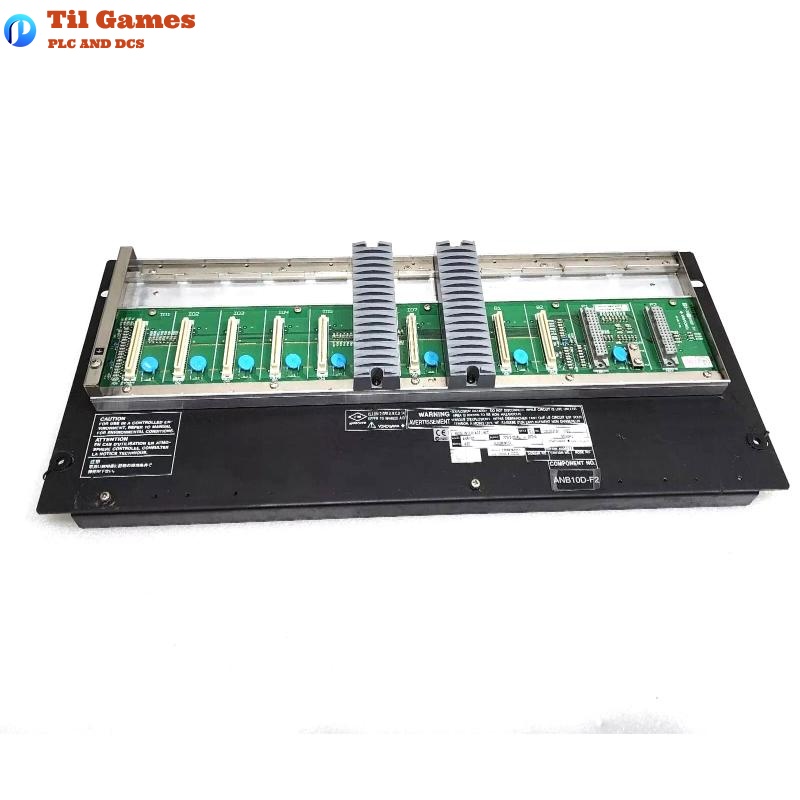

| Model | ANB10D ESB Bus Node Unit |
| Power Supply | 100-120 V AC, 220-240 V AC, 24 V DC |
| Power Consumption | 100-120 V AC: 200 VA, 120 W |
| 220-240 V AC: 230 VA, 120 W | |
| 24 V DC: 5.5 A | |
| Weight | 10 kg (including 8 I/O Modules) |
| Dimensions | 482.6 × 221.5 × 205 mm |
| Mounting | 19-inch Rack Mounting |
| Mounting Screws | M5 x 4 screws |

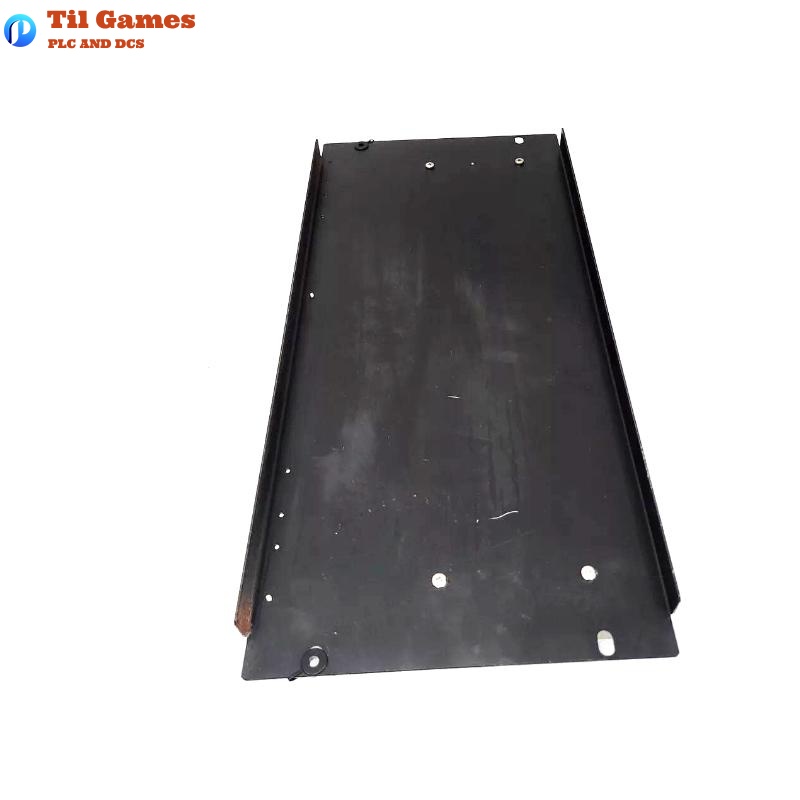

| Insulation Base | Included accessory |
| I/O Modules (max) | 8 |
| Power Supply Modules | Two (for dual-redundant configuration) |
| ESB Bus Interface Slave Module | Two (for dual-redundant configuration) |
| Connection | ESB Bus Coupler Module (EC401 or EC402) |
| Operating Temperature Range | -20°C to 70°C |
| Installation Notes | Follow specified installation guidelines for I/O modules |
FAQ
FAQ
Q1: What is the power supply requirement for the ANB10D?
A1: The ANB10D can operate with 100-120 V AC, 220-240 V AC, or 24 V DC power supply, depending on the configuration selected.
Q2: How many I/O modules can be installed on the ANB10D?
A2: The ANB10D supports a maximum of 8 I/O modules.
Q3: What is the weight of the ANB10D?
A3: The ANB10D weighs approximately 10 kg, including 8 I/O modules.
Q4: What is the recommended mounting method for the ANB10D?
A4: The ANB10D should be mounted on a 19-inch rack using M5 x 4 screws. An insulation base is included as an accessory.
Q5: What are the environmental conditions for the ANB10D?
A5: The ANB10D is designed for use in environments with an operating temperature range from -20°C to 70°C.
Q6: Can the ANB10D be used with a dual-redundant configuration?
A6: Yes, the ANB10D supports dual-redundant power supply and ESB bus interfaces.
Q7: How is the ANB10D connected to the Field Control Unit (FCU)?
A7: The ANB10D is connected to the FCU via an ESB bus using the ESB Bus Coupler Module (EC401 or EC402).
Q8: What is the maximum number of ANB10D units that can be connected to an FCU?
A8: Depending on the FCU model, up to 8 ANB10D units can be connected to an FCU. Specific limits apply based on the FCU’s configuration.
