Technical Specifications
| Item | Description |
|---|---|

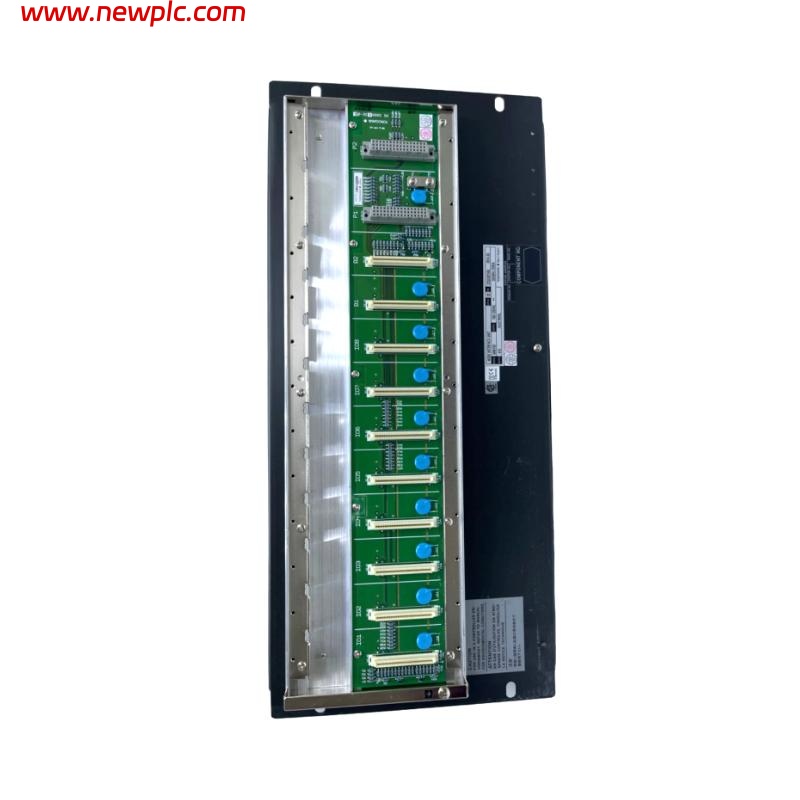

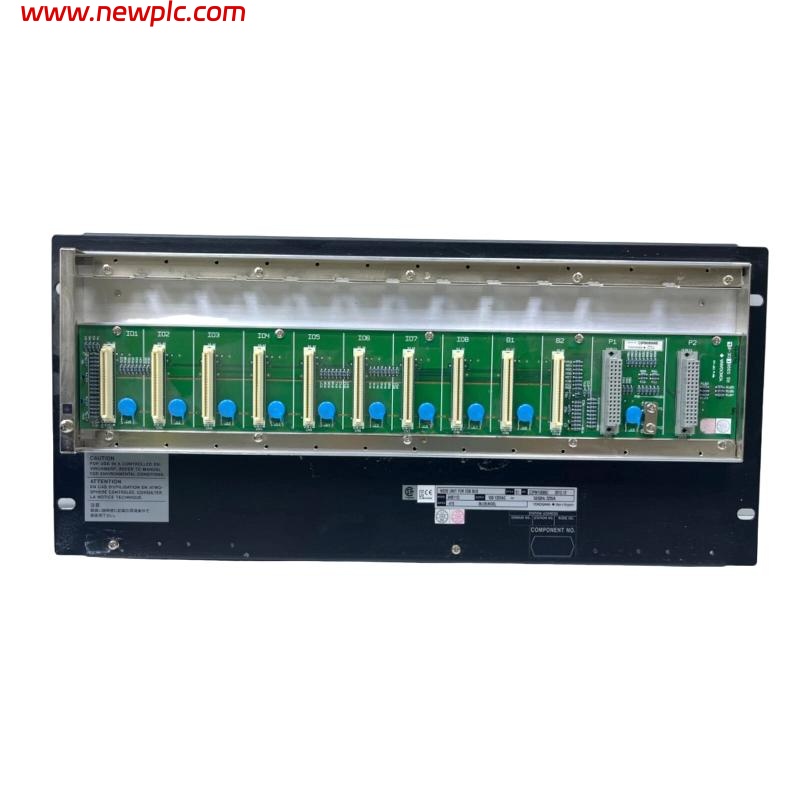

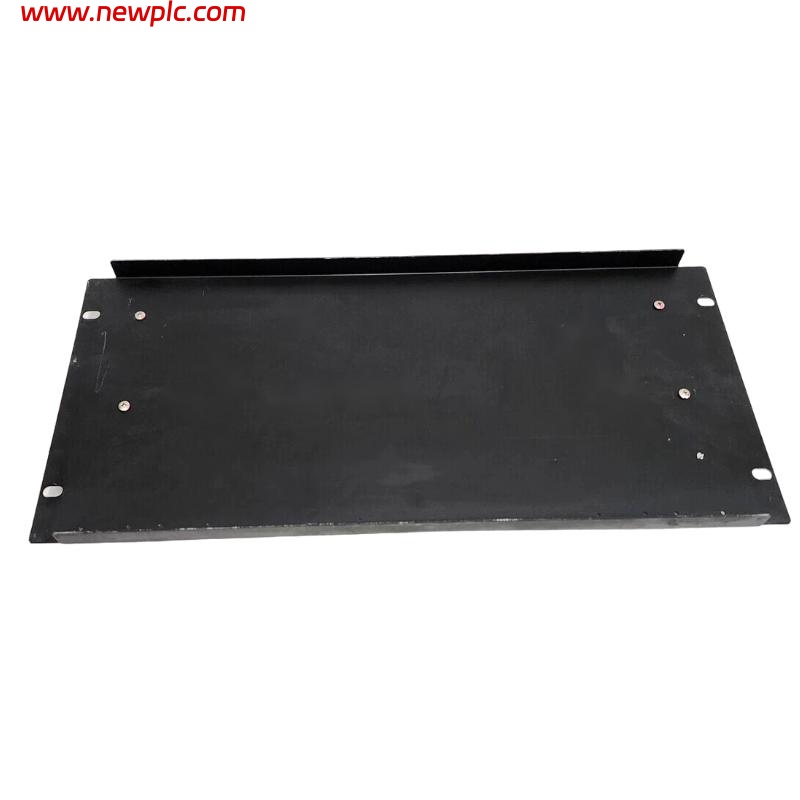

| Product Name | Yokogawa ANB10D-415 ESB Bus Node Unit |
| Model | ANB10D-415/CU2N/NDEL |
| Type | ESB Bus Node Unit with Dual-Redundant Power Supply |
| Power Supply | Dual-redundant power supply (-4 suffix) |
| Voltage Options | 100–120 V AC, 220–240 V AC, or 24 V DC |
| Power Consumption | – 100–120 V AC: 200 VA / 120 W – 220–240 V AC: 230 VA / 120 W – 24 V DC: 5.5 A |
| Maximum Connections | Up to 8 node units per FCU (depending on FCU model) |
| Mounting | 19-inch rack mounting with M5 screws and insulation bash |
| Dimensions | 482.6 × 221.5 ×205 mm |
| Weight | 10 kg |
| Communication Interface | Standard ESB bus interface |
| Supported Modules | Compatible with various Yokogawa node units and I/O modules |
| Environmental Conditions | Suitable for industrial environments; refer to documentation for specifics |
FAQ
FAQ
Q1: What is the primary function of the ANB10D-415?
A1: This node unit communicates analog and contact I/O signals with a Field Control Unit (FCU) via an ESB bus and supplies power to I/O modules.
Q2: What power supply configurations does it support?
A2: It supports dual-redundant power supply configurations to ensure high system availability and fault tolerance.
Q3: How many node units can be connected to each FCU?
A3: Up to 8 node units can be connected to each FCU, depending on the FCU model.
Q4: What is the mounting method?
A4: It utilizes 19-inch rack mounting with M5 screws and insulation bash for easy integration into existing control panels.
Q5: What are its dimensions and weight?
A5: The dimensions are 482.6 × 440 × 205 mm, and the weight is 10 kg.
Q6: What voltage options does it support?
A6: It supports 100–120 V AC, 220–240 V AC, or 24 V DC voltage options to accommodate different power supply environments.
Q7: What communication interface does it support?
A7: It is equipped with a standard ESB bus interface to ensure compatibility and stable communication with other devices.
Q8: What modules is it compatible with?
A8: It is compatible with various Yokogawa node units and I/O modules, providing flexible system configuration options.
