Technical Specifications
| Parameter | Specification |
|---|---|

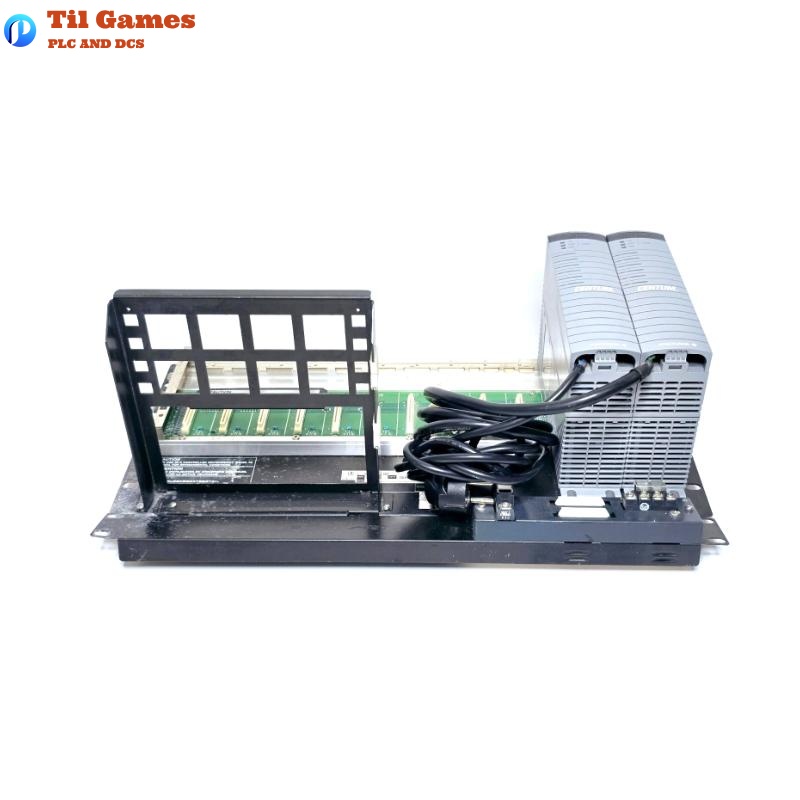

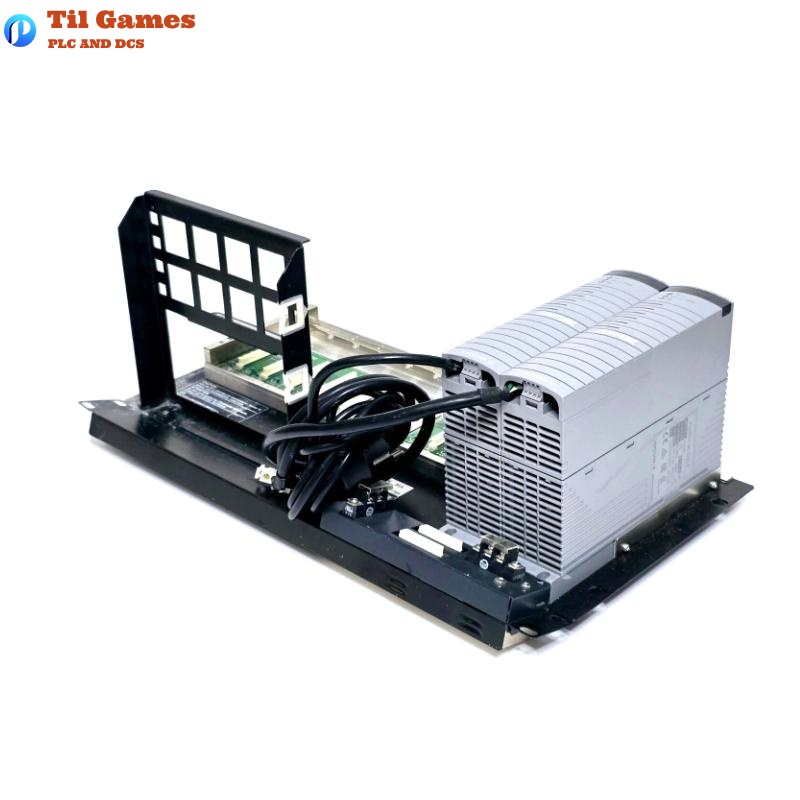

| Model | ANB11D Optical ESB Bus Node Unit |
| Application | Dual-redundant ESB bus with optical repeater (for N-IO/FIO) |
| Power Supply Voltage | 100-120 V AC / 220-240 V AC / 24 V DC (specified via suffix) |
| Power Consumption | 100-120 V AC: 200 VA / 120 W 220-240 V AC: 230 VA / 120 W 24 V DC: 5.5 A / 120 W |
| Mounting Type | 19-inch rack mount (M5 x 4 screws) |

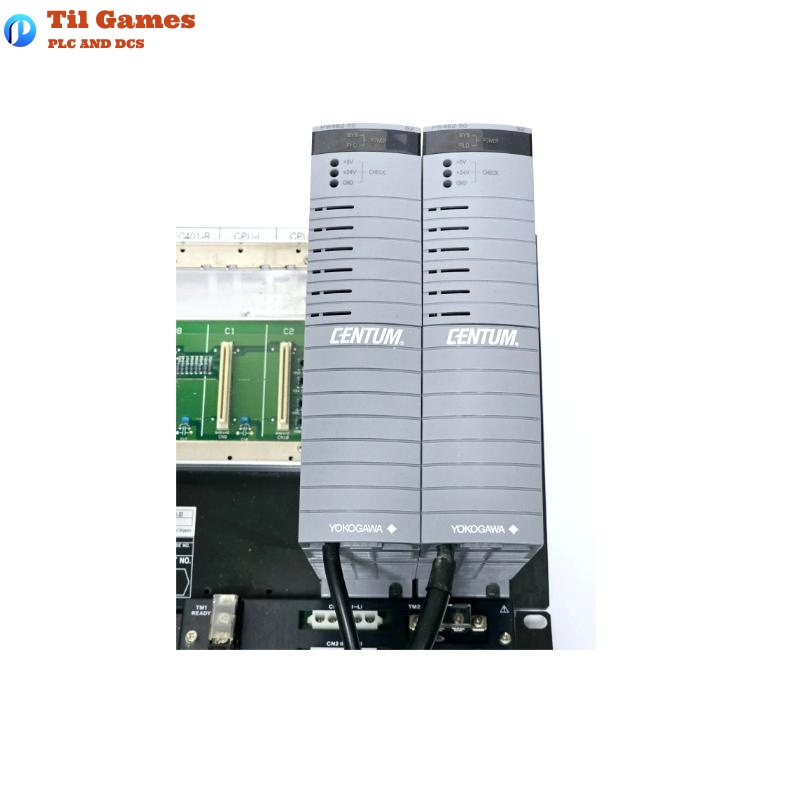

| Module Configuration | Dual power supply modules (PW481 / PW482 / PW484) Max. 8 I/O Modules ANT502 (5 km) or ANT512 (5–50 km) for optical bus |
| Dimensions (W x H x D) | 482.6 × 221.5 × 205 mm |
| Weight | Approx. 10 kg (with 8 I/O modules) |
| Environmental Monitoring Option | HKU Interface (/HU2A, /HU2B) |
| Bus Connectivity | Connected via Optical ESB Bus to ANT401, ANT411, A2EN501 |
| Redundancy Support | Dual-redundant power and optical repeater configuration |
| Standards Compliance | CENTUM VP System, ISA G3 (optional), ATEX/IECEx (with option) |
FAQ
FAQ
Q1: How many optical ESB node units can ANB11D connect?
A1: Up to 13 ESB bus node units including ANB11D can be connected per FCU, depending on FCU type.
Q2: What types of power supply are supported by ANB11D?
A2: It supports 100-120 V AC, 220-240 V AC, and 24 V DC, specified through suffix codes.
Q3: What is the supported optical communication distance of ANB11D?
A3: It supports 5 km (via ANT502) or up to 50 km (via ANT512) optical repeater modules.
Q4: Does ANB11D support redundancy?
A4: Yes, it is designed with dual-redundant power supply and optical repeater modules.
Q5: How many I/O modules can be installed in ANB11D?
A5: It can support up to 8 I/O modules.
Q6: Can ANB11D monitor cabinet environmental conditions?
A6: Yes, when option /HU2A or /HU2B is specified, environmental data is sent to the FCU.
Q7: What is the mounting method of ANB11D?
A7: It mounts on a standard 19-inch rack using M5 screws and includes insulation bushings.
Q8: Is ANB11D suitable for explosive environments?
A8: Yes, with suffix E or F and option code /ATDOC, it complies with explosion protection standards.
