Technical Specifications
| Parameter | Value |
|---|---|

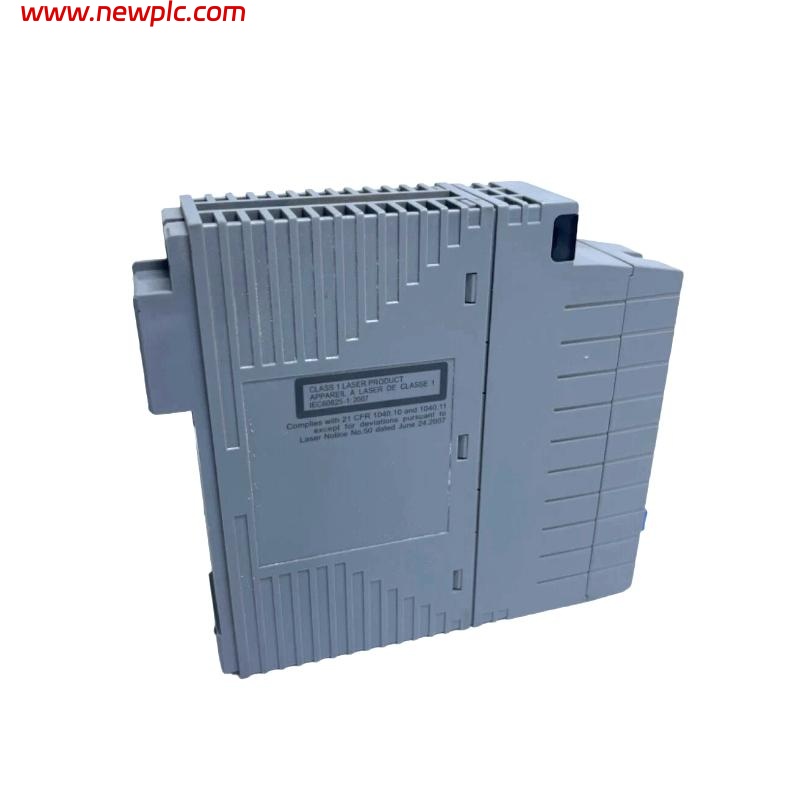

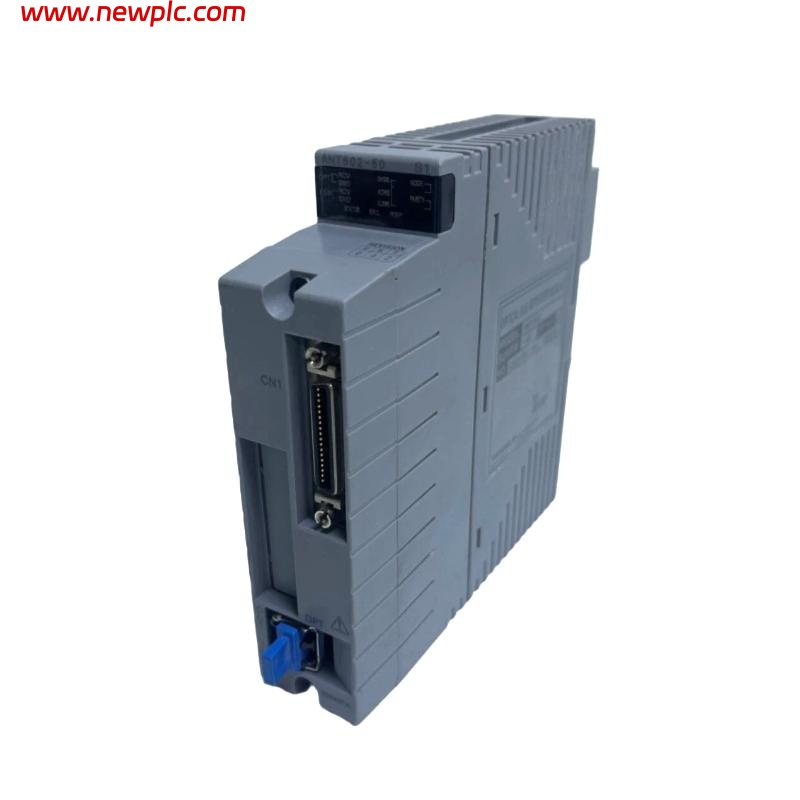

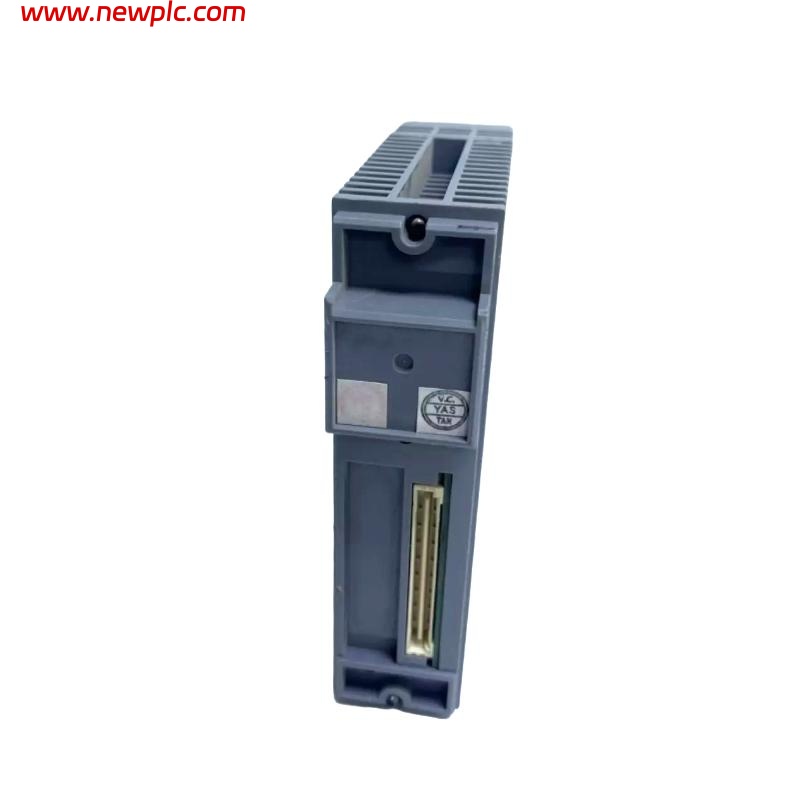

| Model | Yokogawa ANT401-50/CU1N Fiber Optic Bus Repeater Master Module |
| Function | Fiber optic bus repeater for V-net network extension and signal regeneration |
| Dimensions | 142.5 x 130 x 32.8 mm |
| Weight | 0.3 kg |
| Installation | Mounted on dedicated base unit (system rack) |
| Power Supply | Supplied through base unit (redundant supported) |
| Transmission Medium | Multi-mode fiber optic cable |
| Transmission Distance | Up to 2 km (depending on cable quality) |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 70 °C |
| Relative Humidity | 10% to 90% non-condensing |
| Compatibility | Yokogawa CENTUM CS 3000, VP, and related systems |
FAQ
FAQ
Q1: What is the main function of this module?
A1: Its primary role is to repeat and regenerate fiber optic signals, enabling extended communication distance and reliability for V-net networks.
Q2: How is the ANT401-50/CU1N installed?
A2: It is mounted on a dedicated base unit within the system rack.
Q3: What is the maximum supported fiber transmission distance?
A3: With multi-mode fiber optic cable, it supports distances of up to 2 km.
Q4: Does the module support redundant power supply?
A4: Yes, it receives power through the base unit and supports redundancy.
Q5: What is the operating temperature range?
A5: The operating range is 0 to 55 °C, suitable for industrial applications.
Q6: Is the ANT401-50/CU1N compatible with CENTUM CS 3000 systems?
A6: Yes, it is fully compatible with CENTUM CS 3000, VP, and related systems.
Q7: What is the module’s weight, and is it easy to maintain?
A7: It weighs 0.3 kg, making it compact, lightweight, and easy to handle during maintenance.
Q8: What storage conditions should be observed?
A8: Storage temperature should be between -20 and 70 °C, with relative humidity between 10% and 90% non-condensing.
