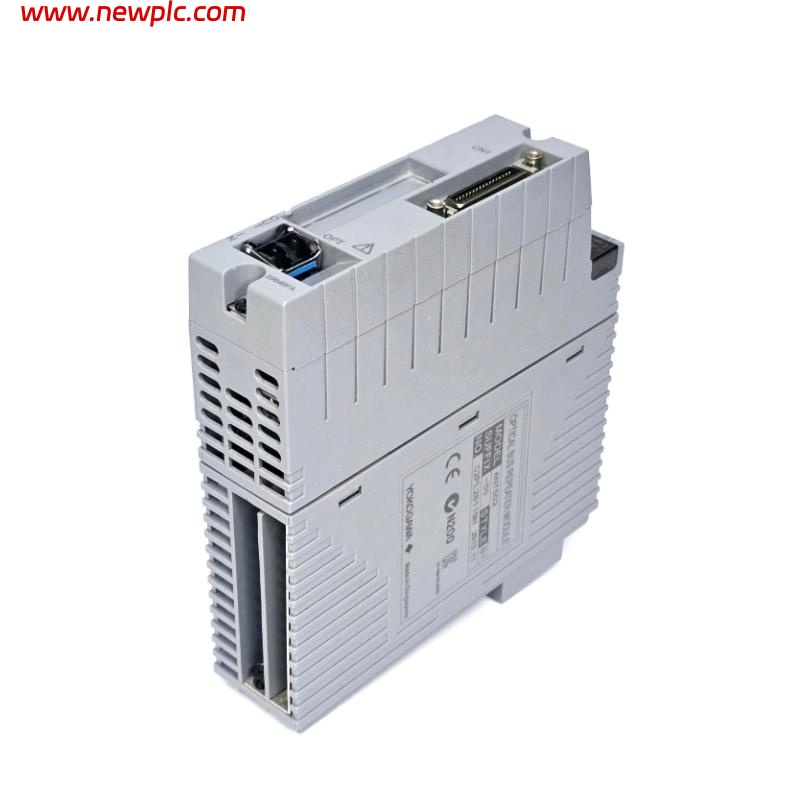

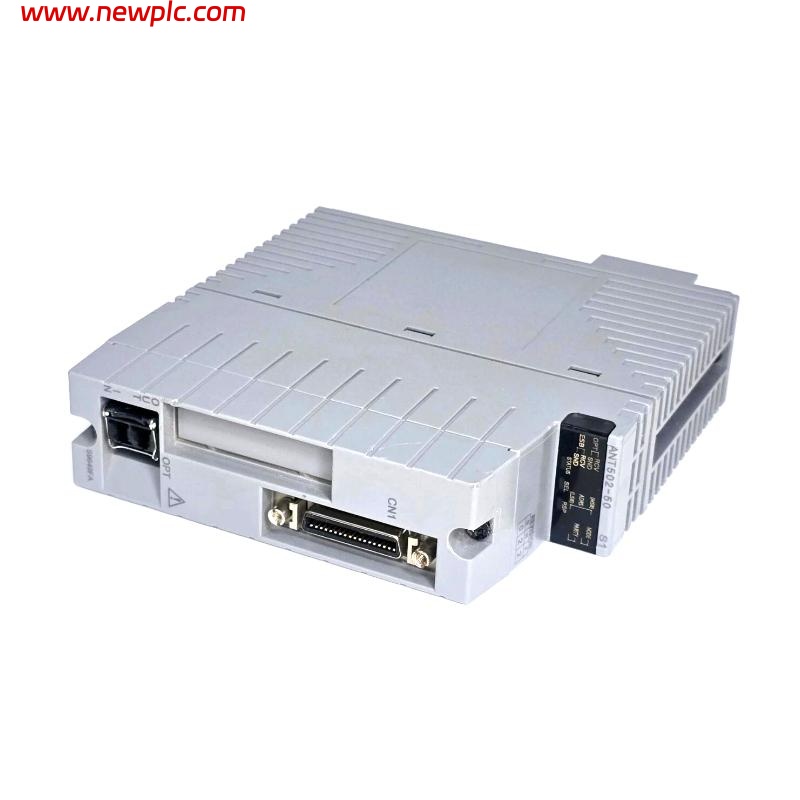

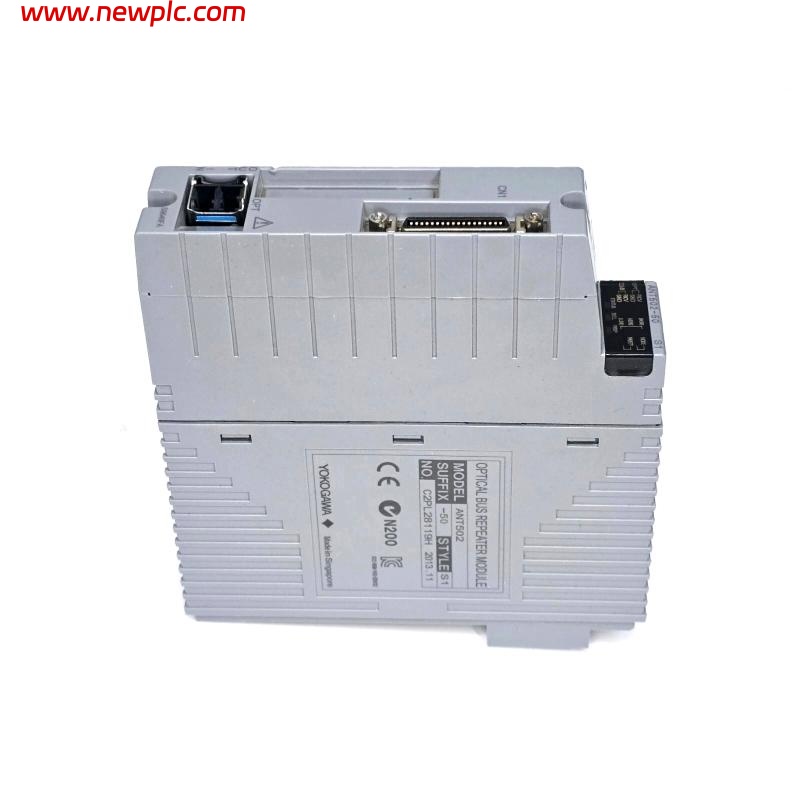

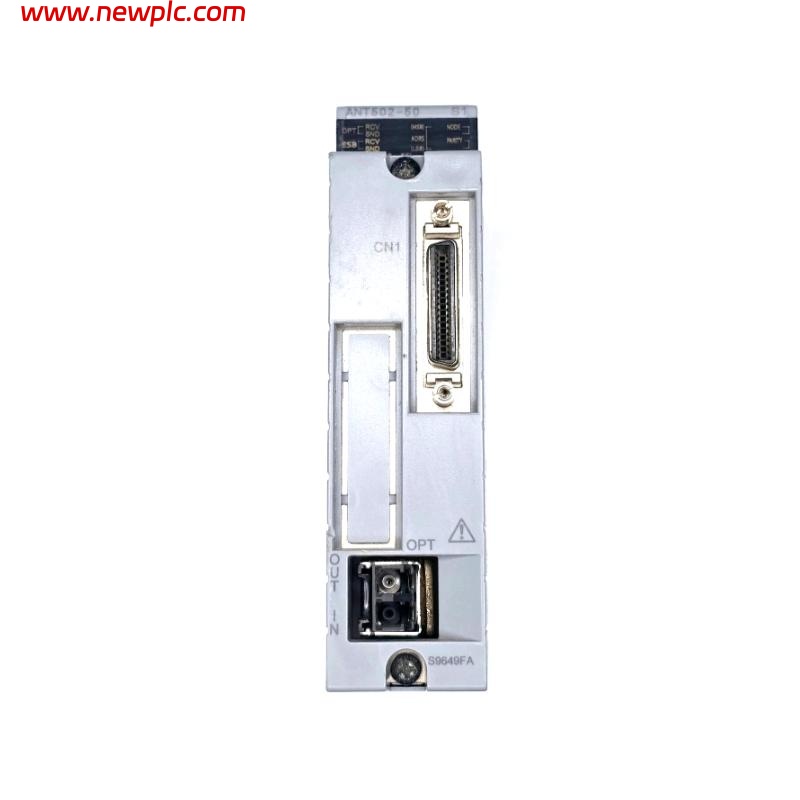

Yokogawa ANT502 Optical ESB Bus Repeater Module

FAQ

Q1: What is the primary function of the Yokogawa ANT502 module?
A1: The ANT502 is an Optical ESB Bus Repeater Slave Module that converts ESB bus signals to optical signals for long-distance transmission up to 5 km.

Q2: Can the ANT502 be installed in any unit?
A2: No, it can be installed in the Optical ESB Bus Node Unit (ANB11) or the Unit for Optical ESB Bus Repeater Module (ANT10U).

Q3: What is the maximum transmission distance of the ANT502?
A3: The maximum transmission distance is 5 km when paired with the ANT401 master module.

Q4: How many modules can be connected in a chain or star configuration?
A4: Up to 8 modules can be connected in either chain or star configurations.

Q5: Does the ANT502 support monitoring of cabinet environmental conditions?
A5: Yes, if ordered with the /HU1A or /HU1B option, it can transmit cabinet environmental information to the FCU.

Q6: What type of optical fiber is required for the ANT502?
A6: It requires a quartz single-mode optical fiber with 2 cores, compliant with JIS C6835 SSMA-9.3/125 or IEC 60793-2-50 B1.1 standards.

Q7: What is the optical connector type used in the ANT502?
A7: The ANT502 uses an LC-type optical connector, compliant with IEC61754-20.

Q8: What is the weight and size of the ANT502?
A8: The ANT502 measures 155.9 x 32.8 x 130 mm and weighs 0.25 kg.
