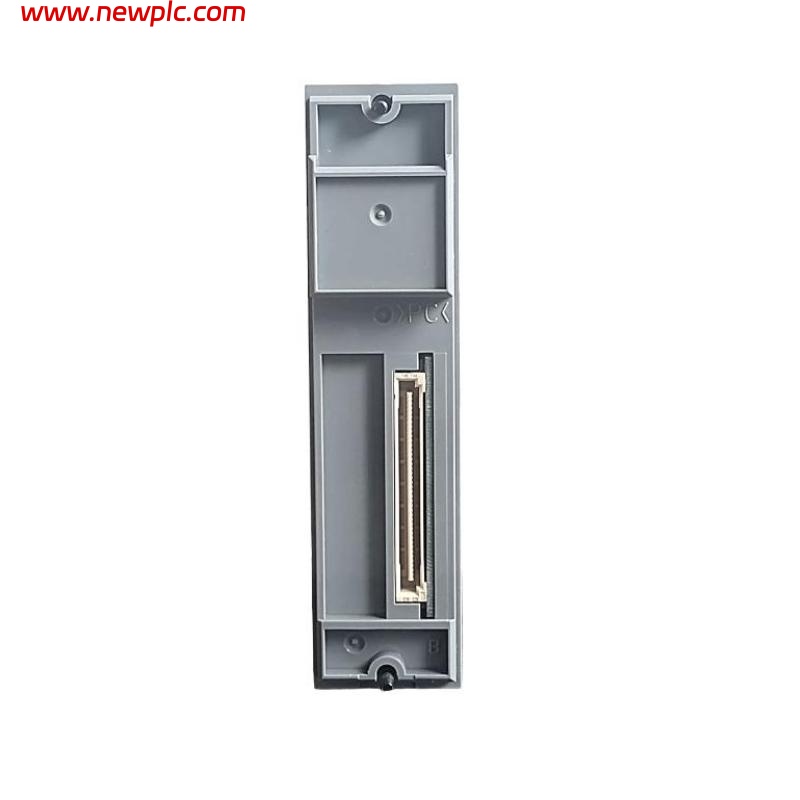

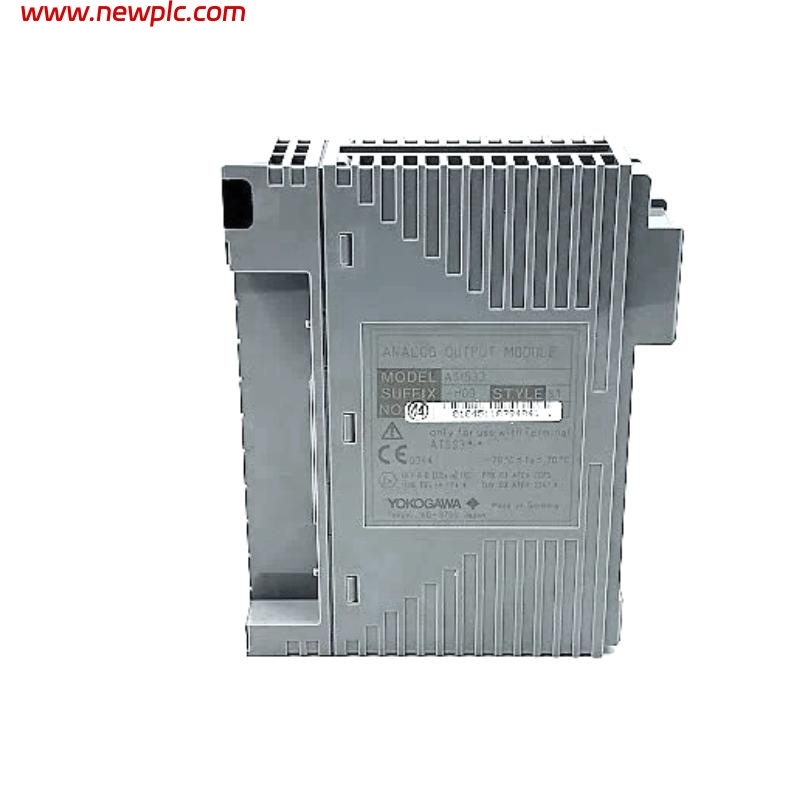

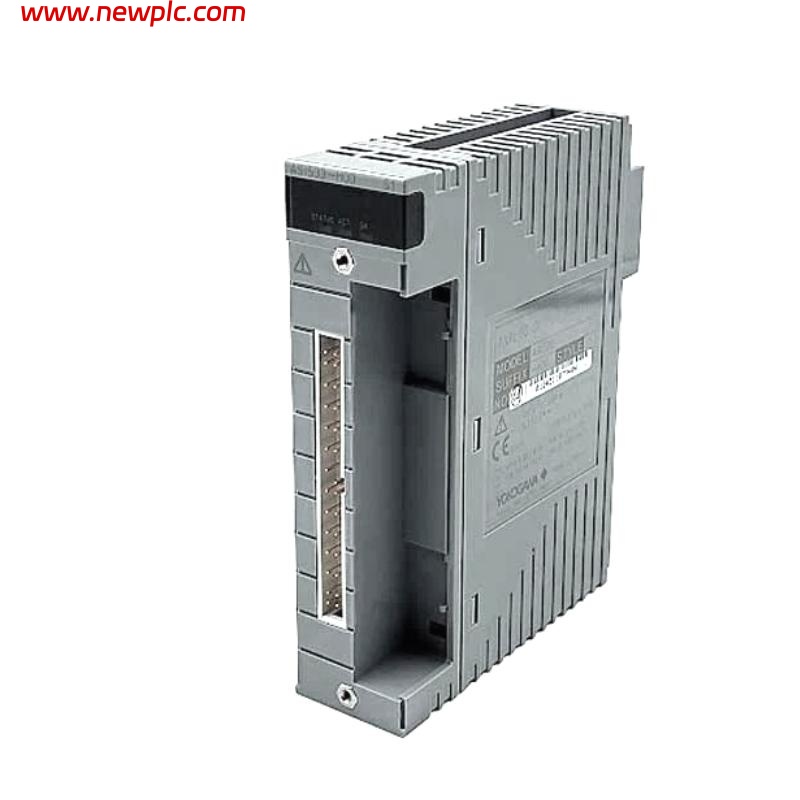

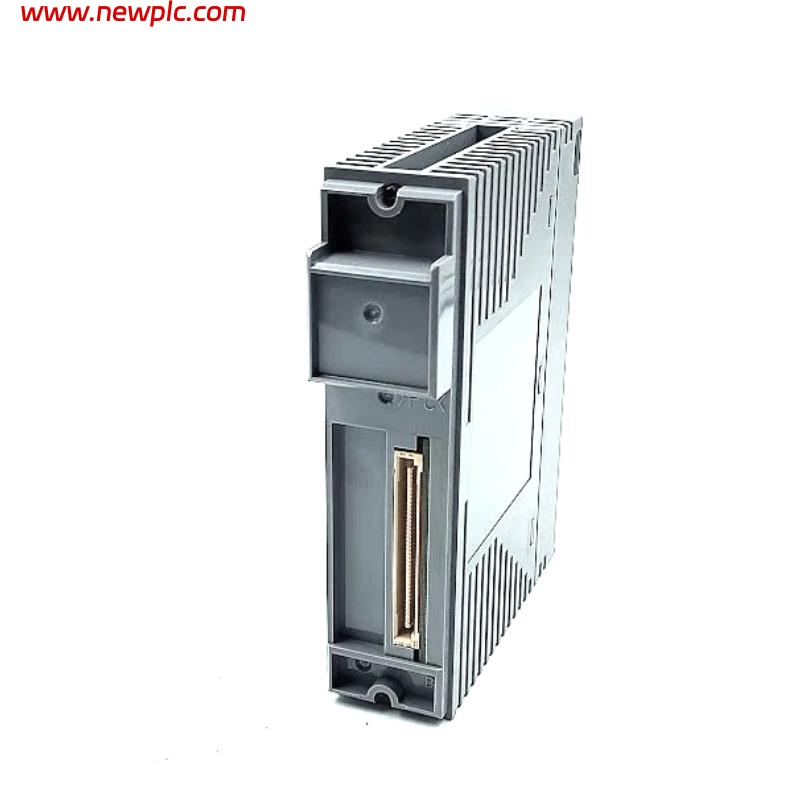

Yokogawa ASI533 Analog Output Module

FAQ

• Q1: What is the maximum load resistance supported by the ASI533 module at 20 mA?
  A1: The module supports 0–750 Ω at 20 mA output current.

• Q2: How does the ASI533 ensure signal accuracy for process control?
  A2: It maintains ±48 µA accuracy at 23°C with isolated channels and stable DC output.

• Q3: What is the response time for analog output changes?
  A3: The module has a response time of 100 ms.

• Q4: Can the ASI533 module communicate using HART protocol?
  A4: Yes, HART-compatible models of ASI533 are available for digital communication over the analog loop.

• Q5: What are the environmental operating limits for the module?
  A5: The module operates reliably between -10°C and +60°C.

• Q6: How is the ASI533 module powered?
  A6: It requires a 24 V DC nominal power supply.

• Q7: How are multiple channels isolated in the ASI533?
  A7: Each of the 8 output channels is individually isolated to prevent cross-talk and ensure signal integrity.

• Q8: What are the physical dimensions and weight of the module?
  A8: The module measures 130 x 107.5 x 32.8 mm and weighs 0.3 kg.

Analog Output Module ASI533 Yokogawa
