Technical Specifications
| Parameter | Specification |
|---|---|

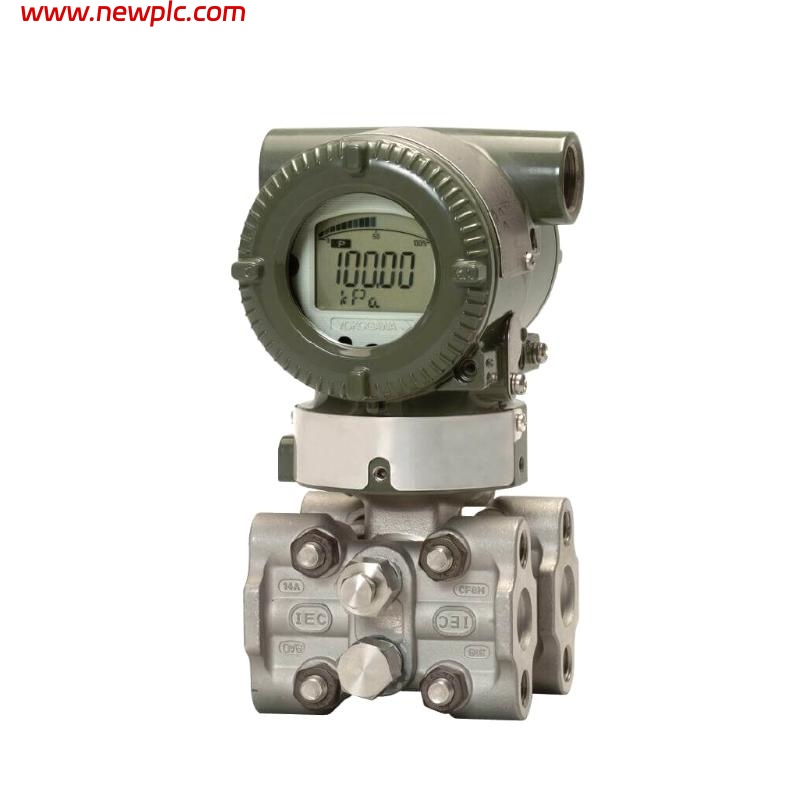

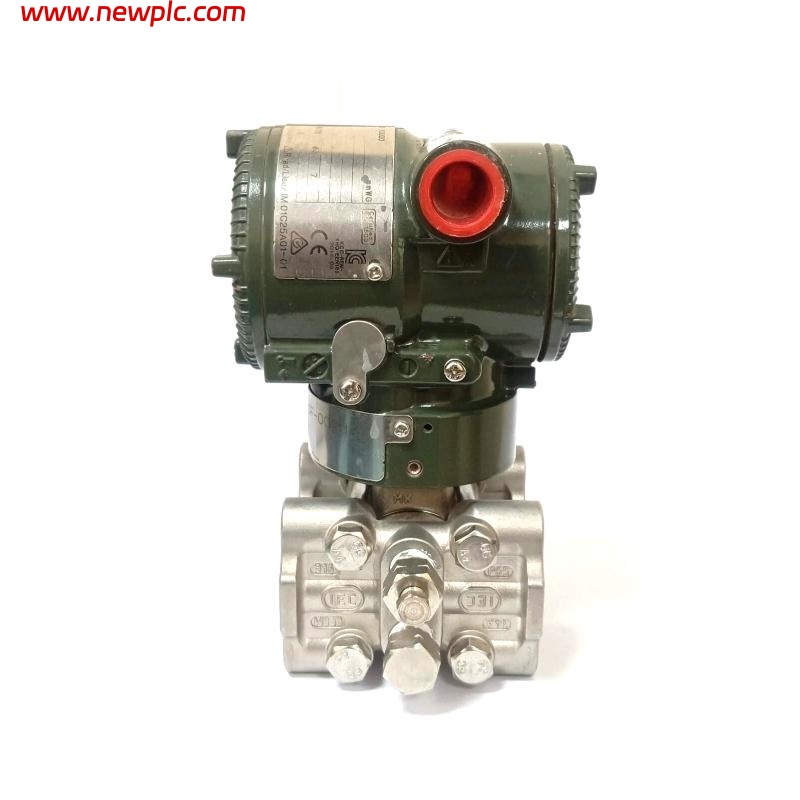

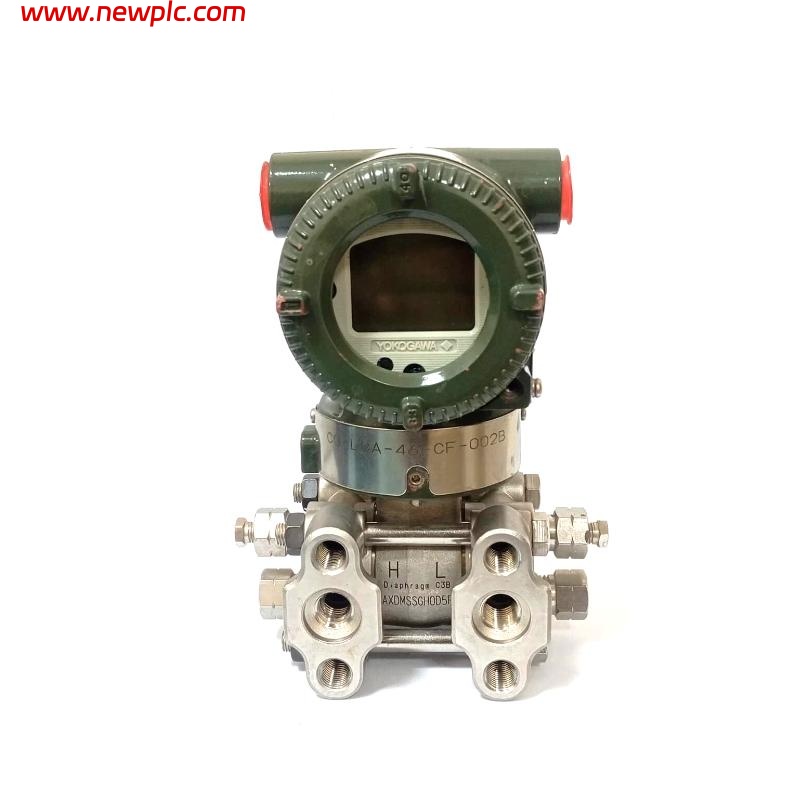

| Model | Yokogawa EJA110E-JMS5G-917EJ/T12/D3/HC/Z Differential Pressure Transmitter |
| Output Signal | 4 to 20 mA DC with HART digital communication |
| Measurement Span (capsule M) | 1 to 100 kPa (4 to 400 inH₂O) |
| Reference Accuracy | ±0.055% of span (M capsule standard) |
| Total Accuracy | ±0.17% of span @1:1 rangedown |
| Process Temperature Range | -40 to 120 °C (-40 to 248 °F) |
| Ambient Temperature Range | -40 to 85 °C (-40 to 185 °F) |
| Ambient Humidity | 0–100% RH |
| Working Pressure Limit | up to 16 MPa (2300 psi) |
| Burst Pressure | up to 69 MPa (10,000 psi) |
| Response Time | ≤90 ms (capsule M) |
| Power Supply | 10.5–42 V DC |
| Load Resistance | 250–600 Ω for digital communication |
| Protection Grade | IP66/IP67, Type 4X |
| Dimensions | 115 × 175 × 110 mm |
| Weight | 3.7 kg |
FAQ
FAQ
Q1: What is the output signal type of the EJA110E-JMS5G-917EJ/T12/D3/HC/Z?
A1: It provides a 4–20 mA DC signal superimposed with HART digital communication.
Q2: What is the measurement range of this model?
A2: The capsule M measures differential pressure from 1 to 100 kPa.
Q3: What is the reference accuracy of the transmitter?
A3: The reference accuracy is ±0.055% of span under standard conditions.
Q4: What is the maximum working pressure this transmitter can handle?
A4: It can withstand up to 16 MPa (2300 psi) working pressure.
Q5: What is the ingress protection level of the housing?
A5: The housing is rated IP66/IP67 and complies with Type 4X standards.
Q6: What is the response time of the device?
A6: The response time for the M capsule is approximately 90 milliseconds.
Q7: What is the operating temperature range for the process fluid?
A7: The process temperature range is from -40 to 120 °C.
Q8: How much does the EJA110E-JMS5G-917EJ/T12/D3/HC/Z weigh?
A8: The weight of the transmitter is approximately 3.7 kg.
