Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |

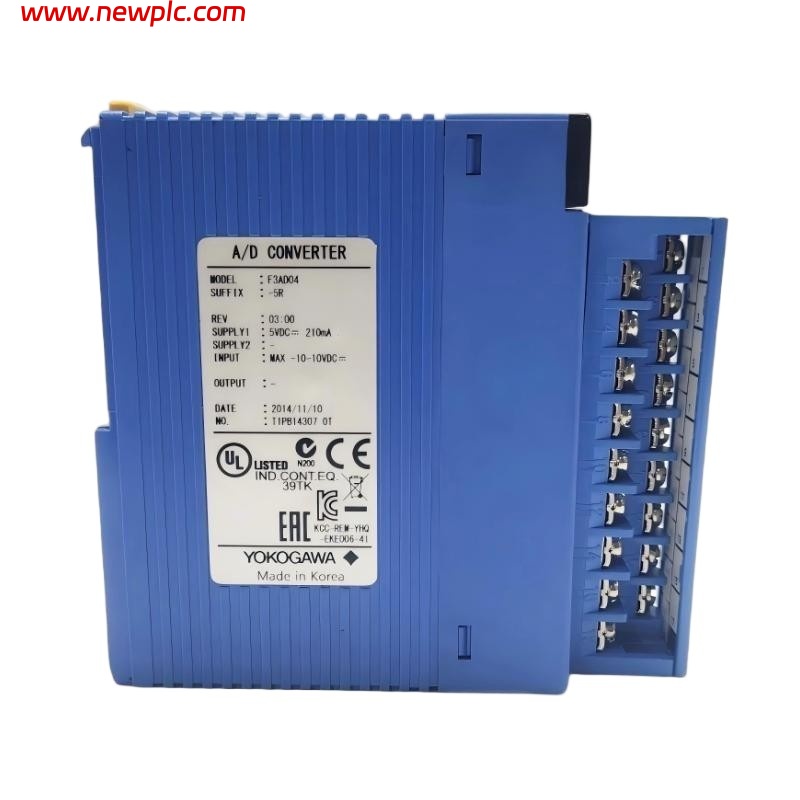

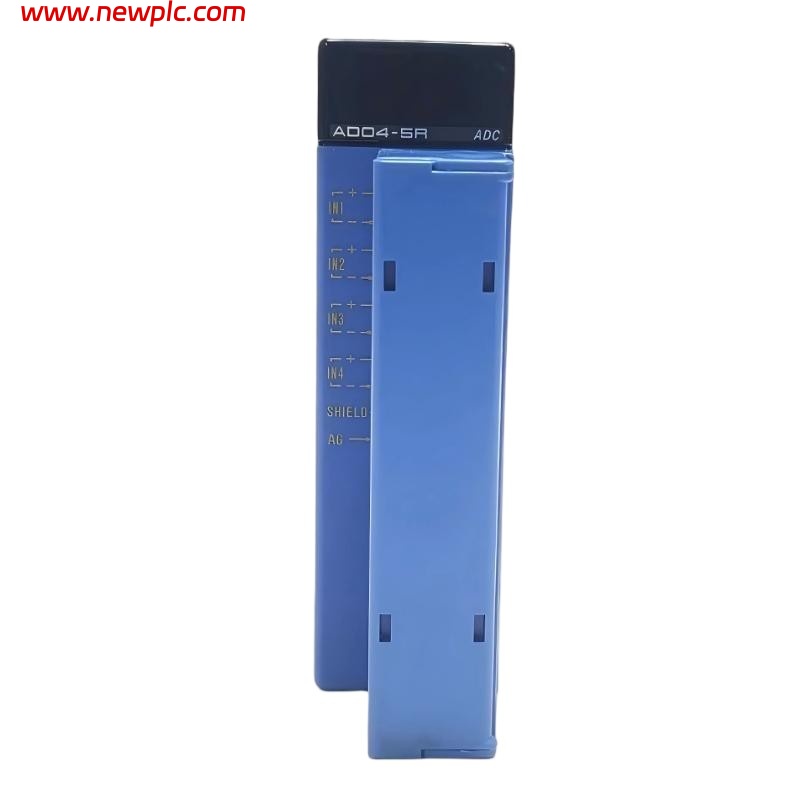

| Model Number | F3AD04‑5R |
| Product Type | Analog Input Module for FA‑M3 PLC |
| Module Function | 4‑channel high‑resolution analog‑to‑digital conversion |
| Input Channels | 4 differential analog inputs |
| A/D Resolution | 16‑bit high‑resolution A/D converter |
| Conversion Speed | Up to 50 μs per point (selectable cycle) |
| Input Signal Ranges | Selectable per channel: 0–5 V, 1–5 V, −10–10 V, 0–10 V DC |
| Isolation | Photocoupler isolation between input and internal circuits |
| Maximum Rating | ±18 V DC or ±25 mA DC (absolute max) |
| External Connection | Terminal block compatible with FA‑M3 base unit |
| Mounting | PLC rack / FA‑M3 base unit slot |
| Power Consumption | Supplied from FA‑M3 backplane |
| Operating Temperature | Standard industrial PLC environment (typically 0–55°C) |
| Dimensions | Approx. 28.9 mm (W) × 100 mm (H) × 83 mm (D) (typical PLC module size) |
| Weight | Approx. 100–200 g (module only) |
FAQ
FAQ
Q1. What type of module is this product?
It is an analog input module designed to convert real‑world analog signals into digital data for processing by a PLC.
Q2. How many analog inputs does it support?
It supports four differential analog input channels.
Q3. What signal ranges can each channel measure?
Each channel can be set for multiple DC voltage ranges such as 0–5 V, 1–5 V, −10–10 V, and 0–10 V.
Q4. What is the conversion resolution of this module?
The module uses a 16‑bit high‑resolution A/D converter for precise measurement.
Q5. How fast does the module convert analog signals?
Conversion speeds can be as fast as roughly 50 microseconds per channel measurement.
Q6. Is the analog input isolated from the internal circuitry?
Yes. The input terminals are isolated from the internal circuitry by photocouplers to reduce noise.
Q7. What industrial environment is this module intended for?
It is intended for FA‑M3 programmable logic controller environments in industrial automation applications.
Q8. What are the physical dimensions and weight of the module?
It has compact PLC module dimensions (around 28.9 mm × 100 mm × 83 mm) and weighs roughly 100–200 g.
