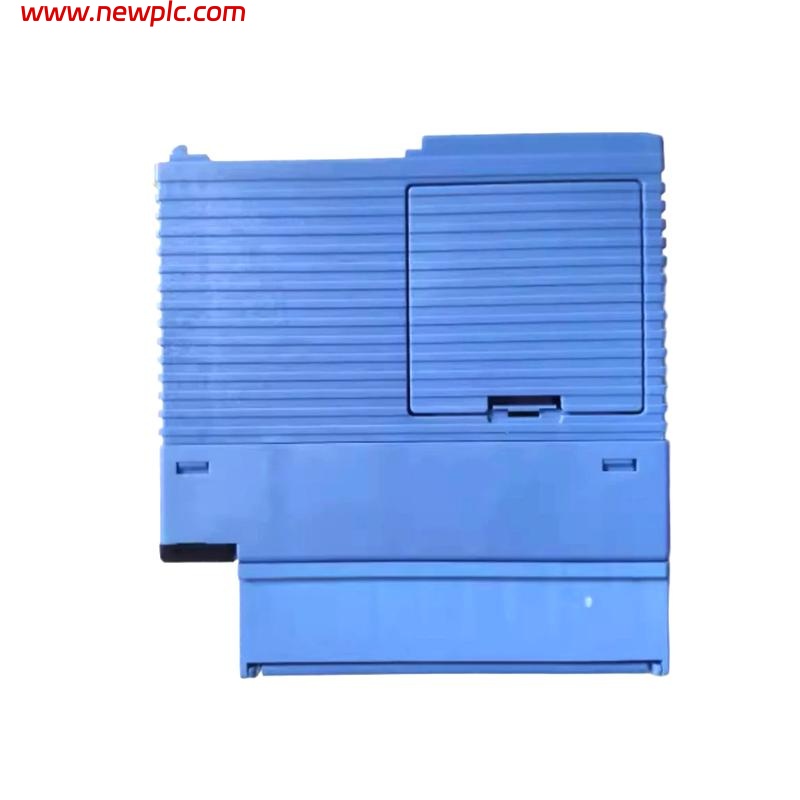

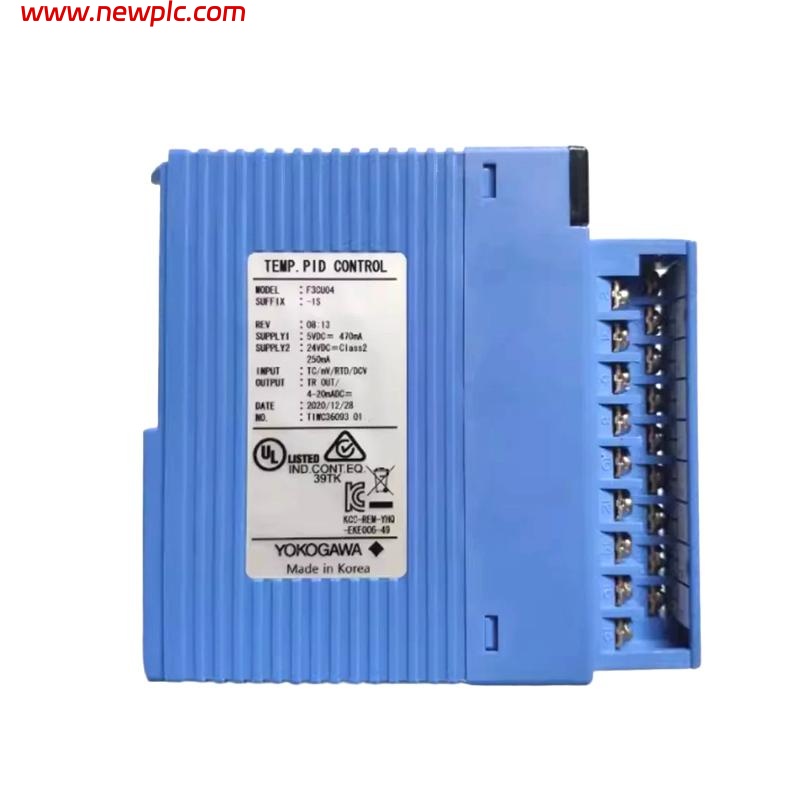

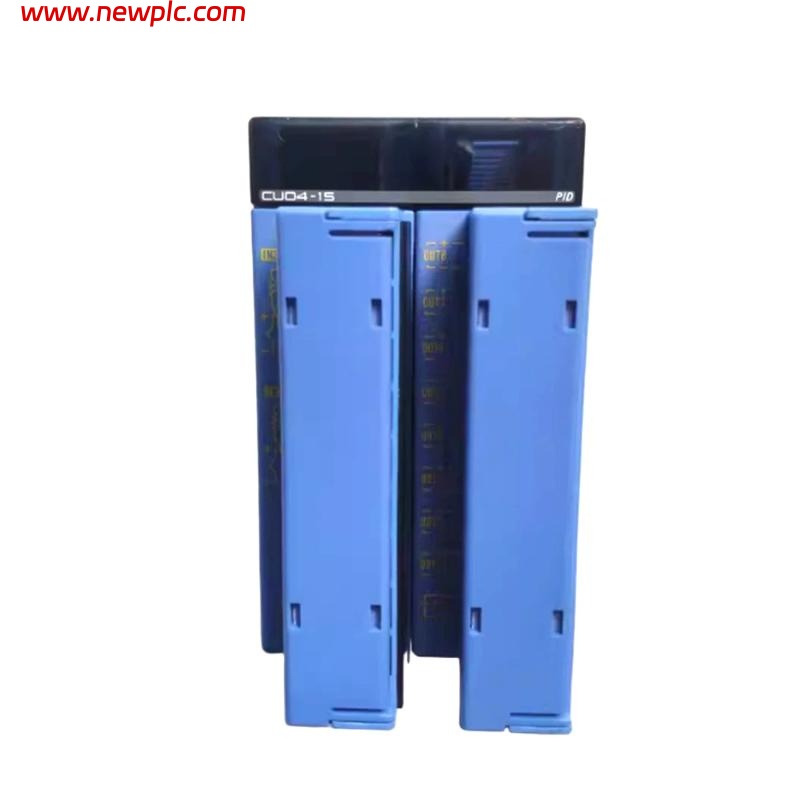

Yokogawa F3CU04-1S Temperature PID Control Module

FAQ

• Q1: What types of temperature sensors are supported by the F3CU04-1S module?
  A: The module supports thermocouples, RTDs, and DC voltage inputs, allowing flexible sensor integration.

• Q2: How many control loops can the F3CU04-1S handle simultaneously?
  A: It can control up to four loops simultaneously when installed in a dual-slot configuration.

• Q3: What is the input sampling period for the module?
  A: The input sampling period is 200 ms for four loops or 100 ms for two loops, enabling high-speed control.

• Q4: What type of output signal does the module provide for PID control?
  A: The module outputs a continuous analog signal in the form of 4–20 mA for PID control.

• Q5: What is the accuracy and resolution of the analog output?
  A: The output accuracy is ±1.0% of full scale with a resolution of 0.05% of full scale.

• Q6: Does the module store PID parameters when power is off?
  A: Yes, the module includes a backup function that retains input types, ranges, set points, and PID parameters.

• Q7: What is the maximum allowable load resistance for the analog output?
  A: The maximum allowable load resistance is 600 Ω.

• Q8: What are the physical dimensions and weight of the F3CU04-1S module?
  A: The module dimensions are 58 × 100 × 106.1 mm, and it weighs 0.35 kg.

F3CU04 F3CU04-1S Temperature PID Control Module Yokogawa
