Technical Specifications
| Item | Specification |
|---|---|

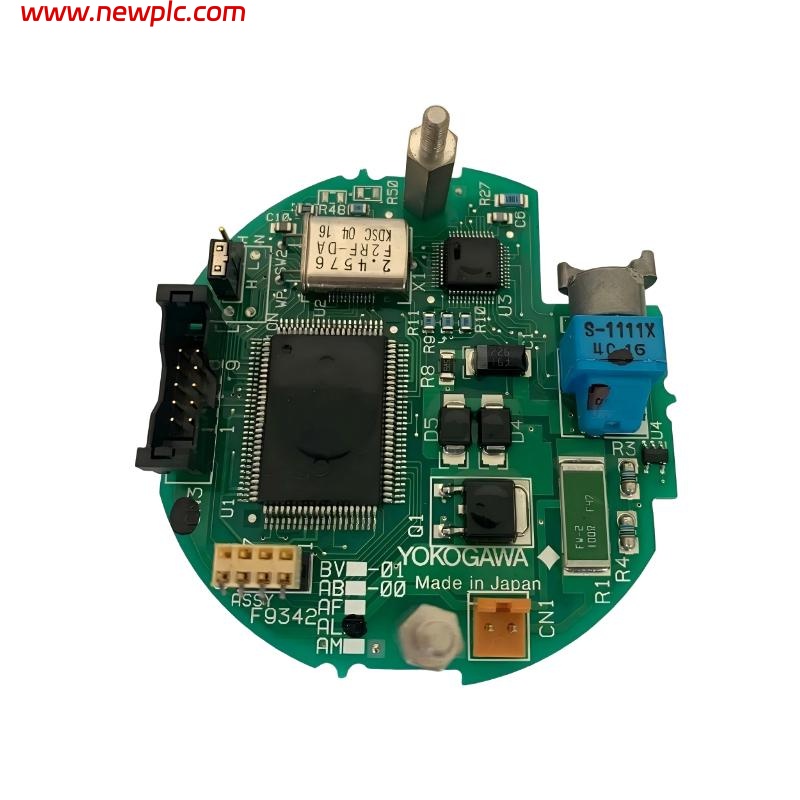

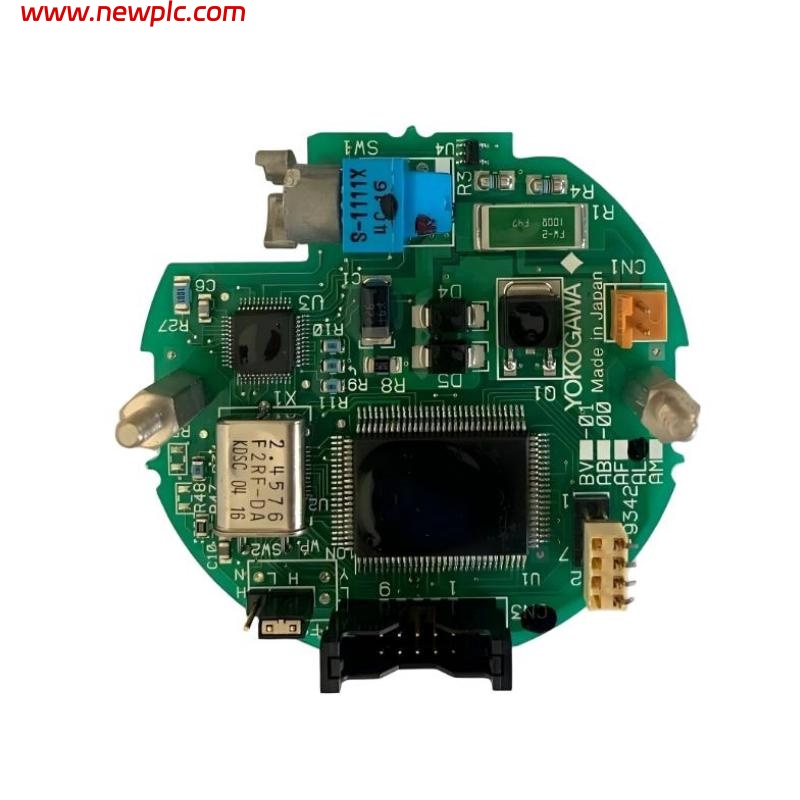

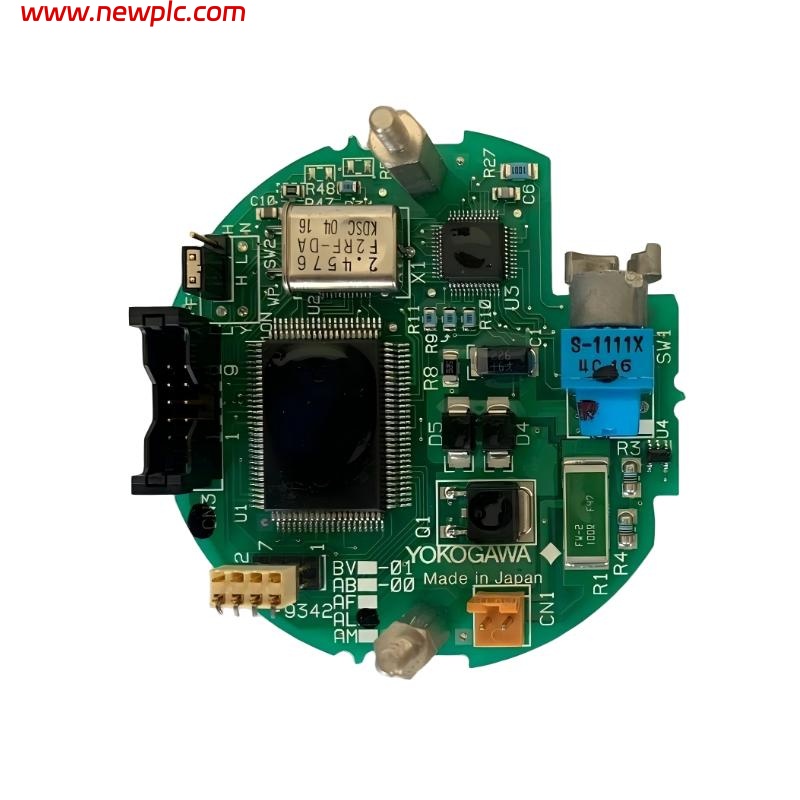

| Model | Yokogawa F9342AL |
| Product Type | Pressure Transmitter CPU Assembly |
| Series | EJA / EJX Transmitter Series |
| Function | Central processing unit for pressure transmitter, responsible for signal processing, computation, and communication |
| Processor | Embedded microcontroller optimized for analog/digital conversion and process control |
| Communication Protocol | HART, FOUNDATION Fieldbus (depending on model configuration) |
| Input Type | Differential, gauge, or absolute pressure inputs |
| Power Supply | 24 V DC nominal |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +90°C |
| Material | Aluminum and industrial-grade polymers for PCB and enclosure |
| Mounting Type | Integrated into transmitter housing |
| Dimensions | 85 × 65 × 22 mm |
| Weight | 0.2 kg |
| Application | Used in Yokogawa EJA/EJX series pressure transmitters for accurate pressure measurement, diagnostics, and data communication |
| Certifications | CE, SIL2/SIL3 capable (depending on transmitter configuration) |
FAQ
FAQ
Q1: What is the main function of the F9342AL CPU Assembly?
A1: It serves as the central processing unit of the Yokogawa pressure transmitter, handling signal acquisition, processing, computation, and communication.
Q2: Which transmitter models is it compatible with?
A2: It is used in EJA and EJX series pressure transmitters, such as EJA110, EJA120, and EJX530.
Q3: What communication protocols are supported?
A3: HART and FOUNDATION Fieldbus, depending on the specific configuration.
Q4: What is the operating temperature range?
A4: It operates reliably between -40°C and +85°C.
Q5: Can the CPU Assembly be replaced individually?
A5: Yes, the F9342AL can be replaced individually as a spare, provided it matches the original transmitter model.
Q6: What is the power supply requirement?
A6: Nominal 24 V DC to ensure stable signal processing and communication.
Q7: Does it support safety certification?
A7: Depending on configuration, it can support SIL2 or SIL3 certification for industrial safety systems.
Q8: What should be noted during installation?
A8: Disconnect power before installation, avoid static discharge to the PCB, and ensure the CPU Assembly is correctly secured within the transmitter housing.
