Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Yokogawa Electric Corporation |

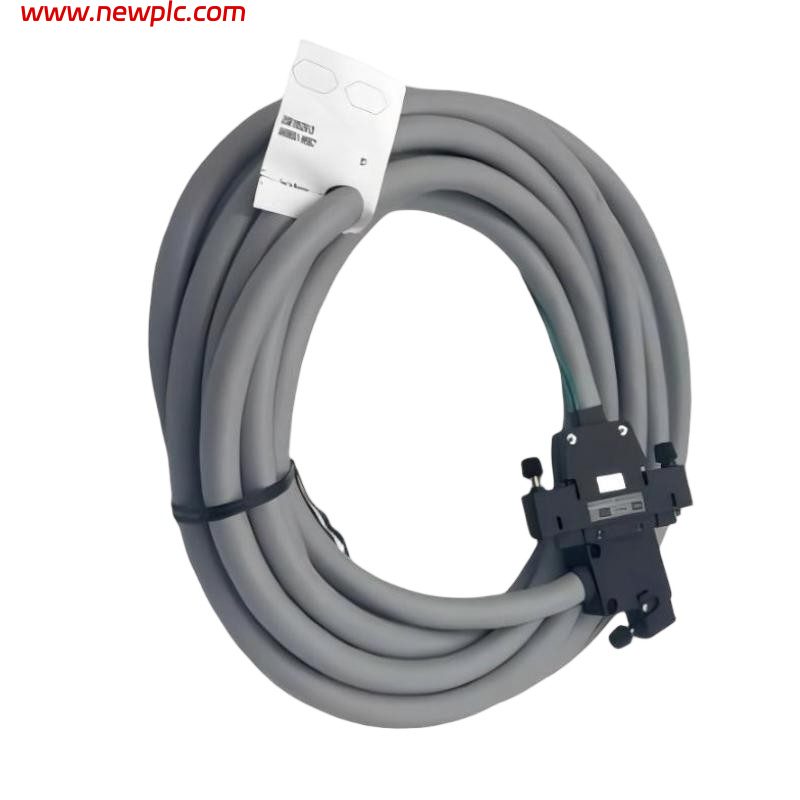

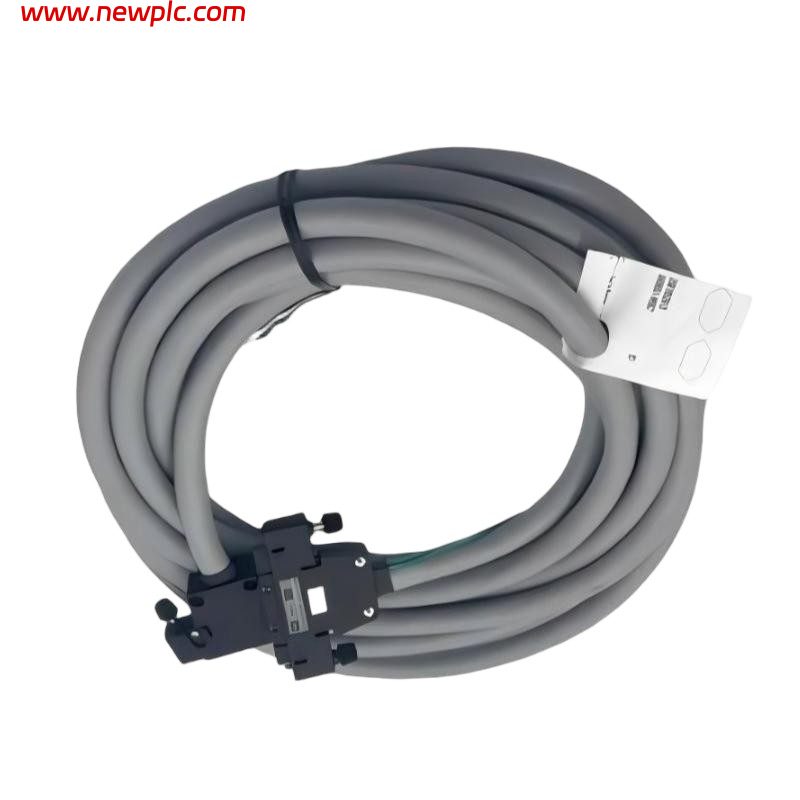

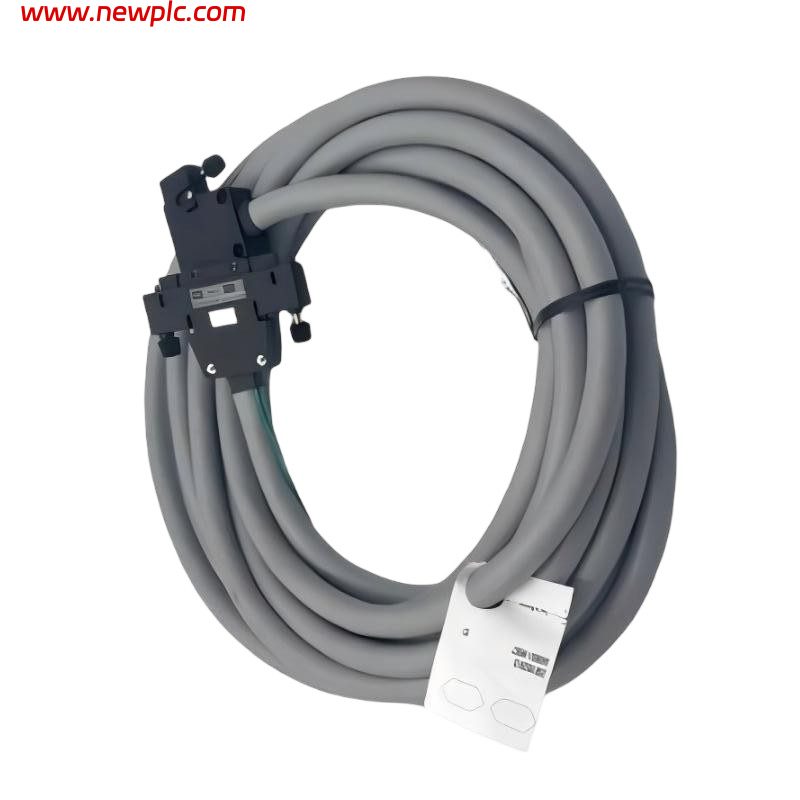

| Product Model | GRVCAB-678FA |
| Product Type | Terminal Cable for Network Switch for Vnet/IP |
| Series | Vnet/IP Network Switch Accessories |
| Function | Provides a serial communication connection between a PC and a Yokogawa Vnet/IP network switch for configuration and diagnostics |
| Communication Interface | RS-232C |
| Switch Connector | RJ-11 |
| PC Connector | D-Sub 9-pin (DB9) |
| Cable Length | 5 m |
| Communication Method | Serial (CLI) |
| Configuration Tool | VT100-compatible terminal software |
| Compatible Devices | Yokogawa GRVSW Series Vnet/IP Network Switches |
| Compatible Systems | Yokogawa CENTUM VP, ProSafe-RS, and other Vnet/IP-based control systems |
| Application | Switch configuration, diagnostics, maintenance, and firmware setup |
| Installation | Direct connection between a PC COM port and the V.24 port of a Vnet/IP network switch |
| Operating Environment | Industrial automation and process control systems |
| Dimensions | Approx. 5000 × 12 × 12 mm |
| Weight | Approx. 0.25 kg |
| Condition | New and original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the Yokogawa GRVCAB-678FA used for?
The GRVCAB-678FA is used to establish a serial communication link between a computer and a Yokogawa Vnet/IP network switch. It enables engineers to configure, troubleshoot, and monitor the switch through its Command Line Interface (CLI).
Q2: Which connectors are used on the GRVCAB-678FA?
The cable features an RJ-11 connector for the network switch and a 9-pin D-Sub (DB9) connector for the computer’s serial communication port.
Q3: Which Yokogawa systems are compatible with the GRVCAB-678FA?
The cable is designed for GRVSW Vnet/IP network switches used in CENTUM VP, ProSafe-RS, and other Yokogawa Vnet/IP-based automation systems.
Q4: What are the dimensions and weight of the GRVCAB-678FA?
The cable has approximate dimensions of 5000 × 12 × 12 mm and weighs approximately 0.25 kg.
Q5: What communication interface does the GRVCAB-678FA use?
The cable uses an RS-232C serial communication interface, allowing access to the switch’s CLI through a VT100-compatible terminal application.
Q6: Can the GRVCAB-678FA be used for switch diagnostics?
Yes. In addition to initial configuration, it can be used to verify switch status, perform diagnostics, modify network settings, and support maintenance activities through the CLI.
Q7: What should be checked before using the GRVCAB-678FA?
Before connecting the cable, verify that the network switch is compatible, the PC has an available serial interface or USB-to-serial adapter, and the terminal software is configured with the correct communication parameters.
Q8: What are the advantages of the Yokogawa GRVCAB-678FA?
The GRVCAB-678FA provides a reliable serial connection for switch configuration, simplifies network maintenance, supports direct CLI access, enables efficient troubleshooting, and is specifically designed for Yokogawa Vnet/IP industrial Ethernet switches.
