Technical Specifications
| Item | Description |
|---|---|

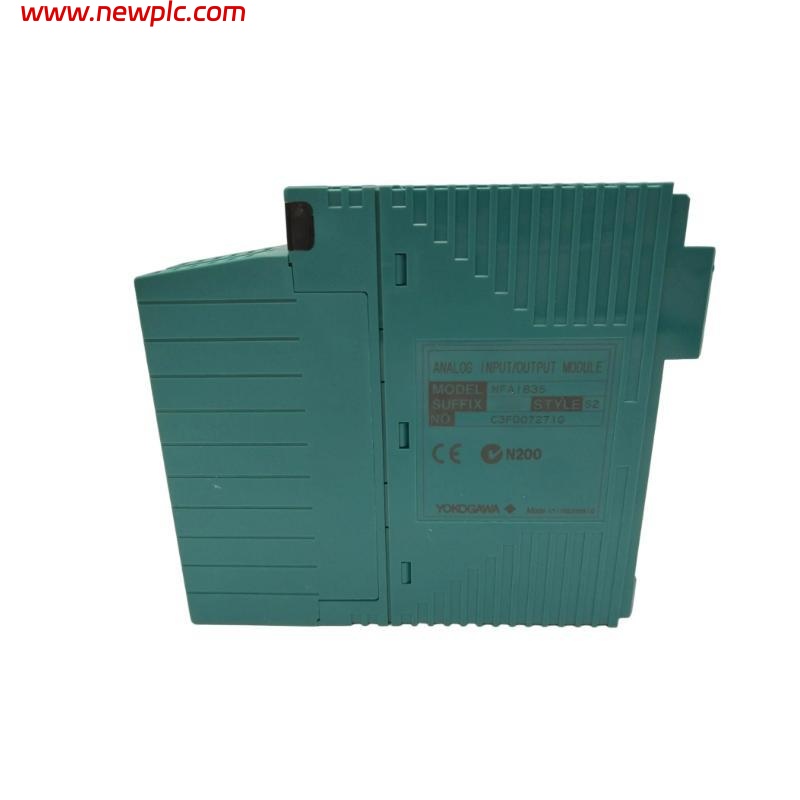

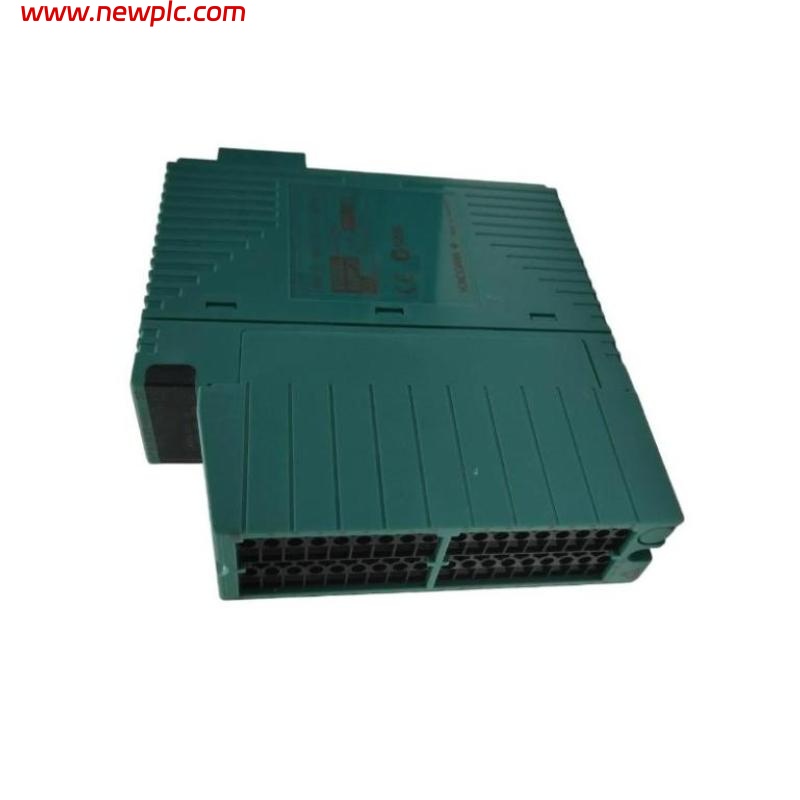

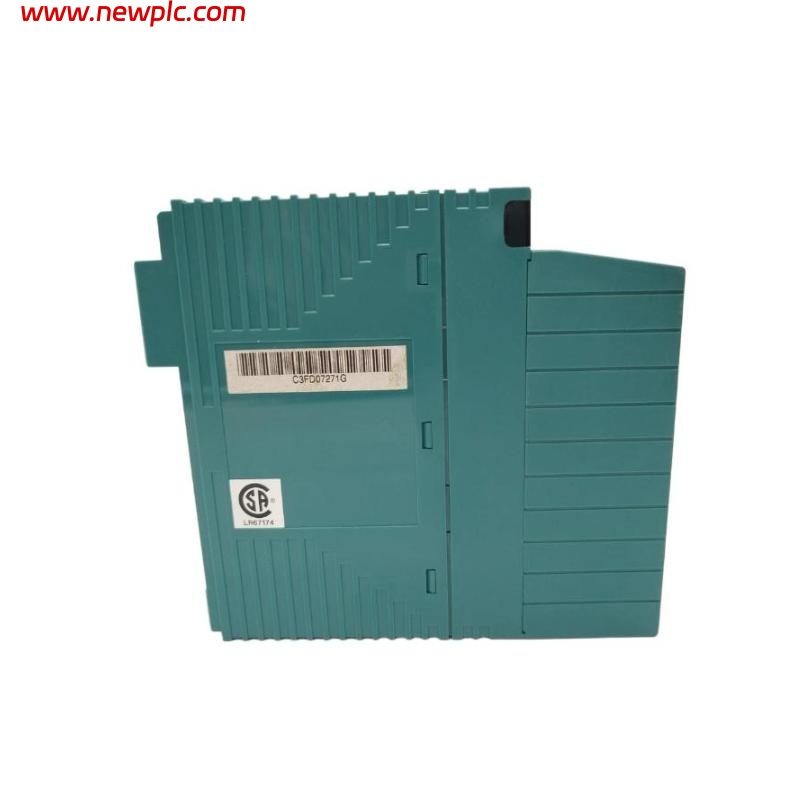

| Product Model | Yokogawa NFAI835 |
| Product Type | Analog Input/Output Module |
| Manufacturer | Yokogawa |
| Function | Provides analog input and output channels for process control and monitoring systems |
| Input Channels | 8 channels (configurable for voltage or current input) |
| Output Channels | 8 channels (configurable for voltage or current output) |
| Input Range | 0–10 V, 0–20 mA, 4–20 mA |
| Output Range | 0–10 V, 0–20 mA, 4–20 mA |
| Resolution | 16-bit A/D and D/A conversion |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-system isolated |
| Response Time | ≤ 10 ms typical |
| Power Supply | 24 V DC nominal |
| Power Consumption | Approx. 4 W |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN-rail or rack-mountable |
| Compliance | CE, UL, RoHS |
| Dimensions | 150 × 90 × 50 mm |
| Weight | 0.6 kg |
FAQ
FAQ
Q1: What is the main function of the Yokogawa NFAI835 module?
It provides analog input and output channels for process control and monitoring systems.
Q2: How many input and output channels are available?
It has 8 input channels and 8 output channels, all configurable.
Q3: What types of signals can it handle?
Voltage (0–10 V) and current (0–20 mA or 4–20 mA).
Q4: What is the resolution and accuracy of the module?
16-bit resolution with ±0.1% of full scale accuracy.
Q5: Is the module isolated?
Yes, both channel-to-channel and channel-to-system isolation are provided.
Q6: What is the typical response time?
≤ 10 ms.
Q7: What is the operating temperature range?
0 °C to +55 °C.
Q8: How is the module mounted?
It can be mounted on a DIN rail or rack.
