Technical Specifications
| Item | Specification |
|---|---|

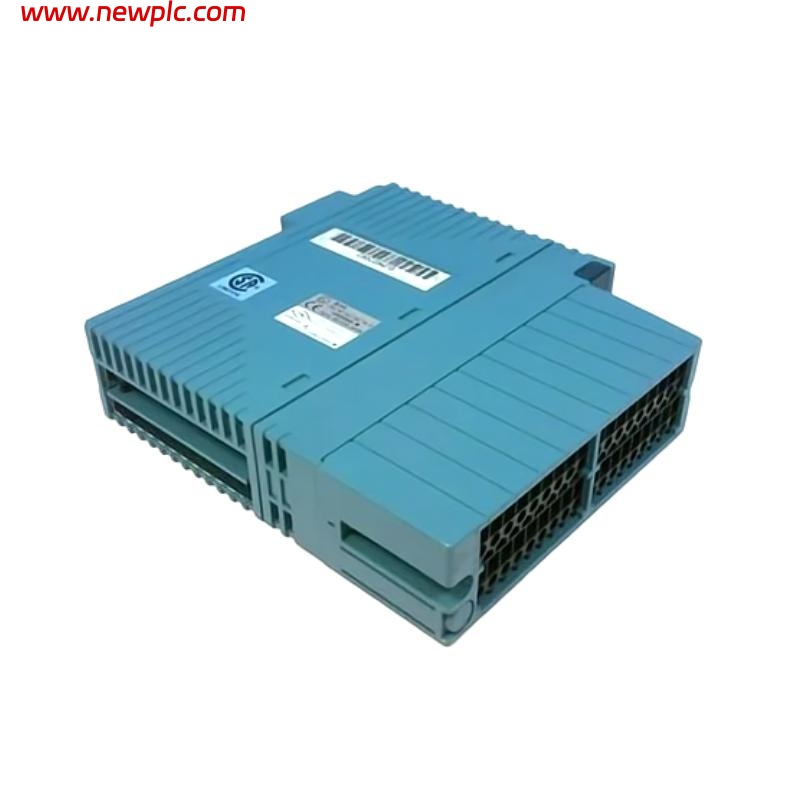

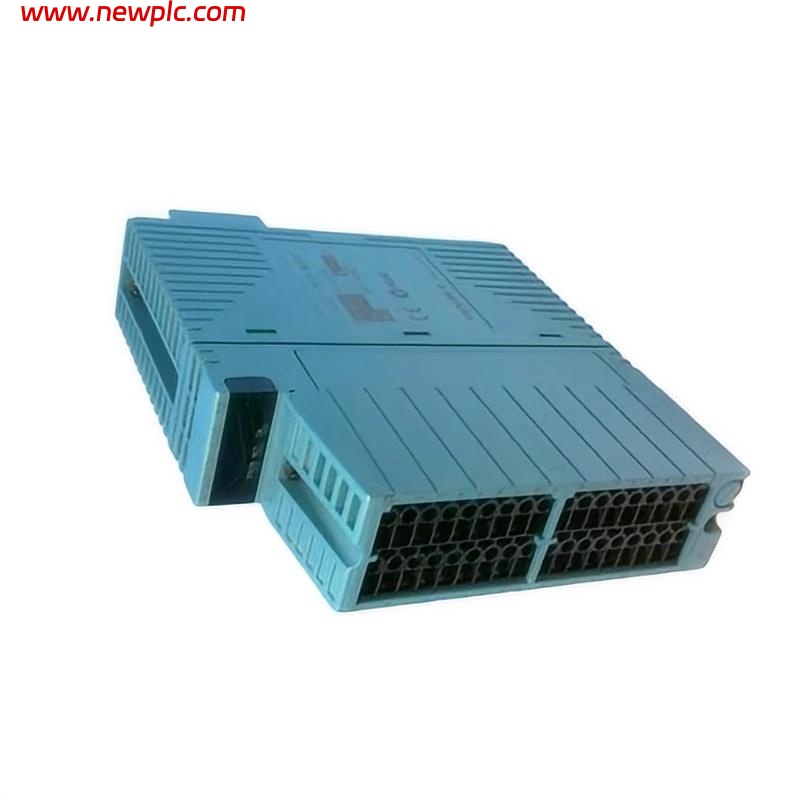

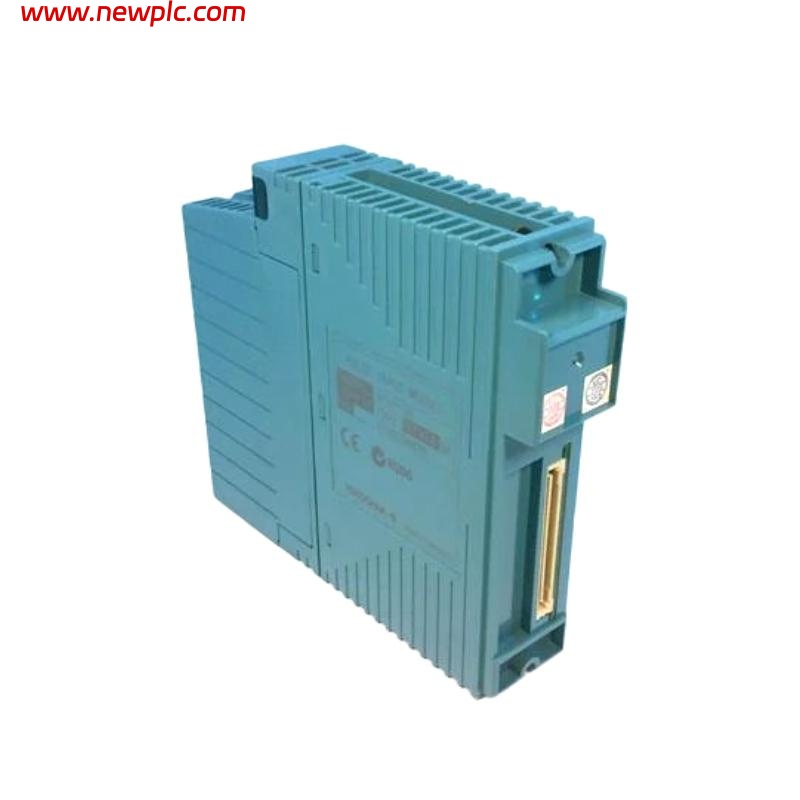

| Product Model | Yokogawa NFAP135-S00 |
| Product Type | Pulse Input Module |
| Input Channels | 4 channels |
| Input Signal Type | Pulse signals (Square wave, TTL, Contact) |
| Frequency Range | 0.1 Hz to 10 kHz |
| Input Voltage | 5 V DC / 12 V DC / 24 V DC |
| Isolation | Optical isolation between channels and system |
| Accuracy | ±0.1% FS |
| Supply Voltage | 24 V DC |
| Operating Temp. | 0 to 55 ℃ |
| Storage Temp. | -20 to 70 ℃ |
| Dimensions | 32.8 × 107.5 × 130 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What is the main function of the NFAP135-S00 Pulse Input Module?
It is used to acquire and process signals from pulse sensors or counters.
Q2: How many input channels does the module have?
The module provides 4 independent pulse input channels.
Q3: What types of input signals are supported?
It supports square wave, TTL, and contact-type pulse signals.
Q4: What is the input frequency range?
The input frequency range is 0.1 Hz to 10 kHz.
Q5: What input voltage levels are supported?
It supports 5 V, 12 V, and 24 V DC input signals.
Q6: Does the module have isolation protection?
Yes, it provides optical isolation between channels and the system.
Q7: What is the operating temperature range?
The operating range is 0 to 55 ℃, and the storage range is -20 to 70 ℃.
Q8: What are the module’s dimensions and weight?
Dimensions are 32.8 × 107.5 × 130 mm, weight is 0.3 kg.
