Technical Specifications
| Item | Specification |
|---|---|

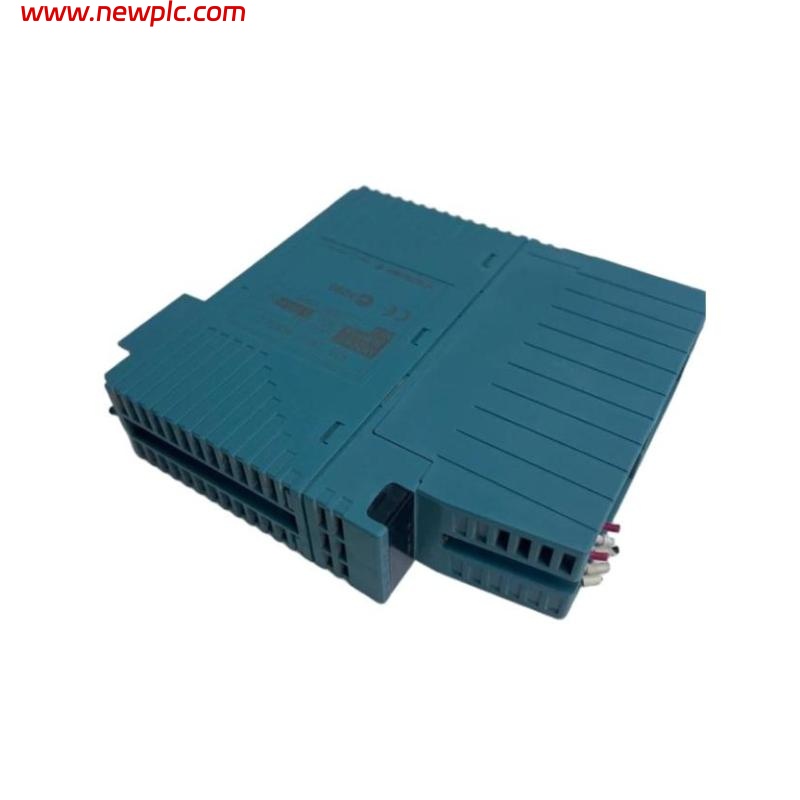

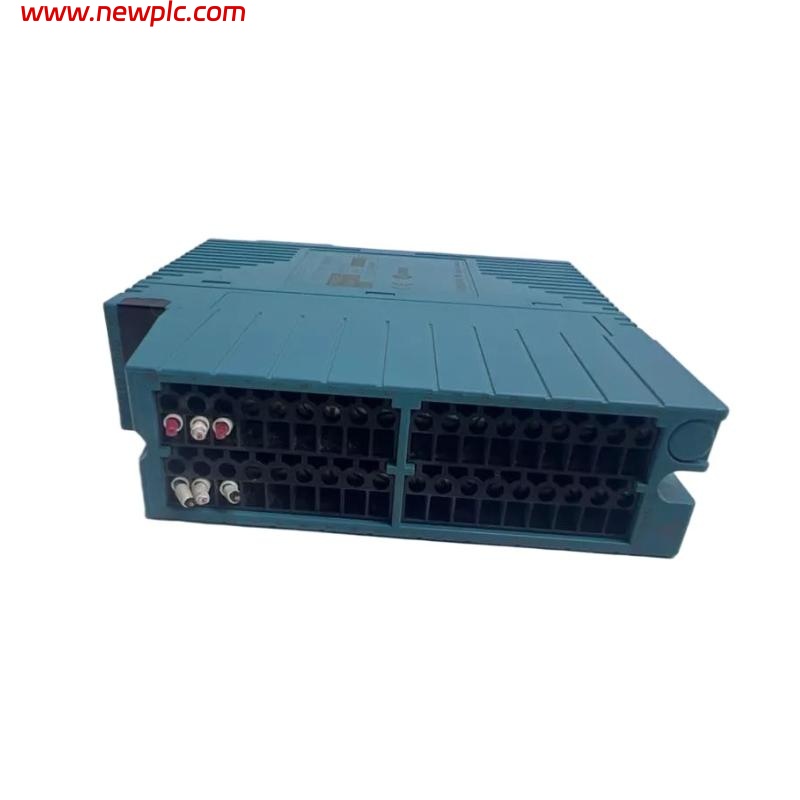

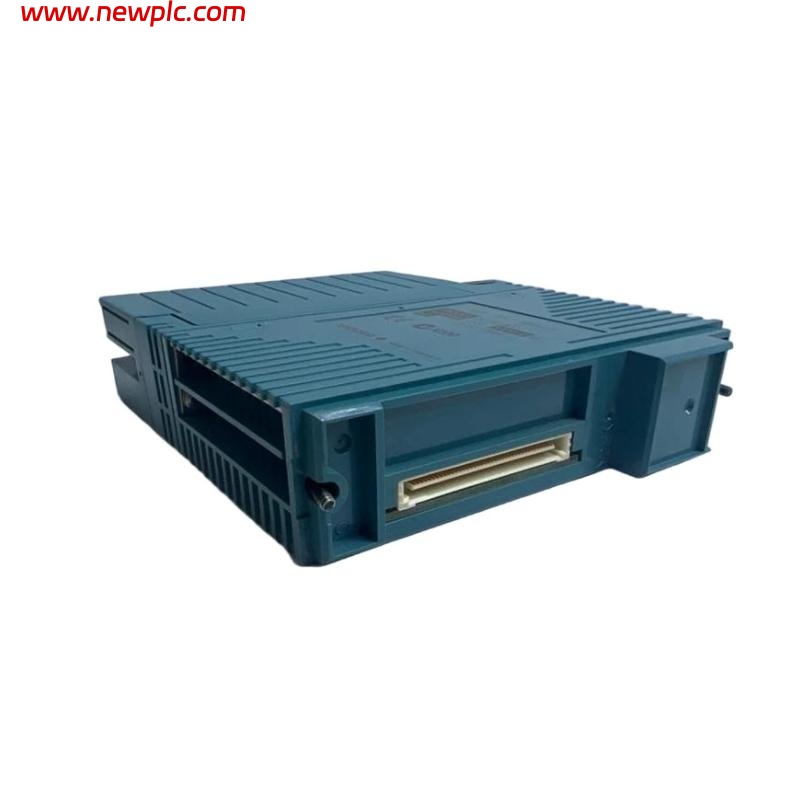

| Product Type | RTD Input Module |
| Model Number | NFAR181-S00 |
| Function | Provides resistance temperature detector (RTD) signal input for Yokogawa control systems |
| Input Channels | 8 isolated channels |
| Supported Sensors | Pt100, Pt200, Pt500, Pt1000, JPt100 |
| Input Type | 2-wire, 3-wire, 4-wire RTD connections |
| Measurement Range | -200 °C to +850 °C (depending on RTD type) |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1% of span |
| Isolation | Channel-to-channel and channel-to-system isolated |
| Conversion Time | 250 ms per channel |
| Power Supply | Supplied from base unit backplane |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 10% to 90% RH, non-condensing |
| Dimensions | 130 x 107.5 x 32.8 mm |
| Weight | 0.2 kg |
| Mounting | Installed on Yokogawa system rack |
| Applications | Industrial process control, temperature monitoring, safety systems |
FAQ
FAQ
Q1: What is the main function of the NFAR181-S00 module?
It is used to acquire temperature measurements from RTD sensors and transmit data to the Yokogawa control system.
Q2: How many channels does this module provide?
It supports 8 isolated input channels.
Q3: What types of RTD sensors are supported?
It supports Pt100, Pt200, Pt500, Pt1000, and JPt100.
Q4: What connection methods are available for RTDs?
2-wire, 3-wire, and 4-wire RTD connections are supported.
Q5: What is the measurement accuracy of the module?
The accuracy is ±0.1% of span.
Q6: Is the module isolated?
Yes, it provides channel-to-channel and channel-to-system isolation.
Q7: What are the dimensions and weight of the module?
Dimensions: 130 x 107.5 x 32.8 mm; Weight: 0.2 kg.
Q8: In what applications is this module commonly used?
It is widely used in industrial process automation, safety monitoring, and precise temperature control.
