Technical Specifications
| Parameter | Specification |
|---|---|

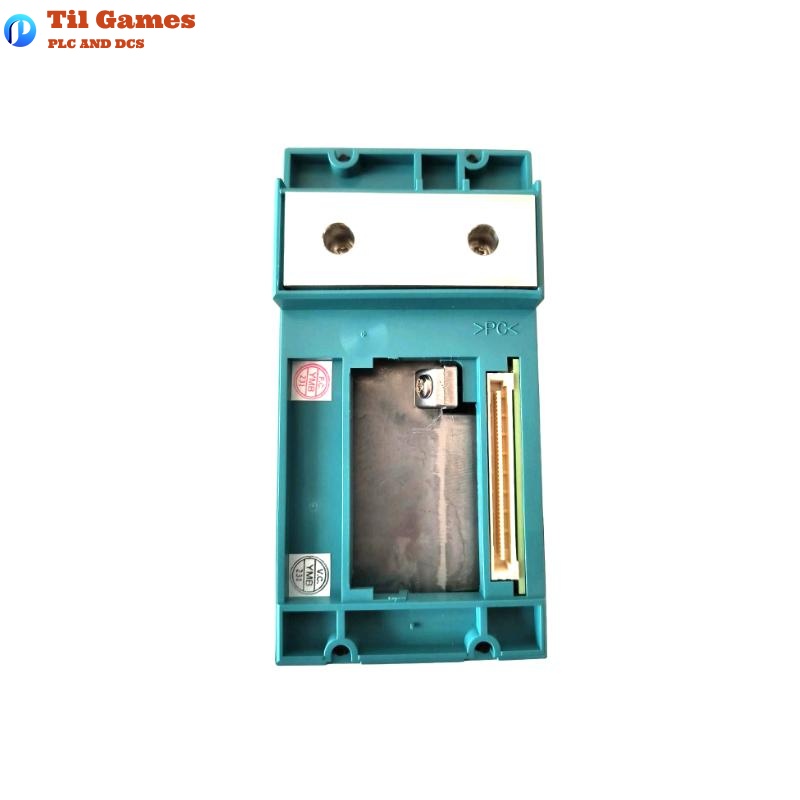

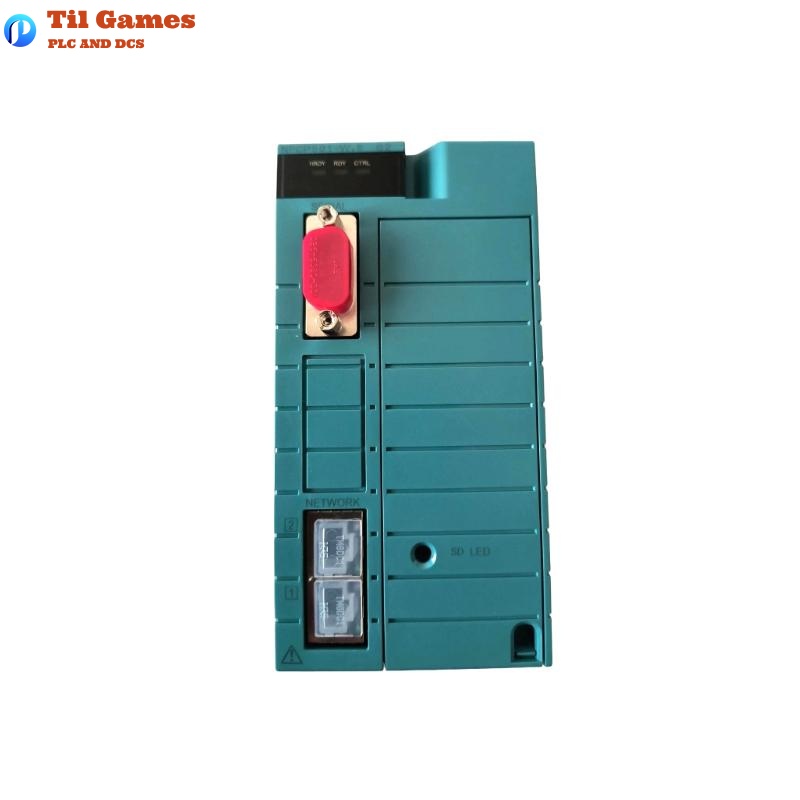

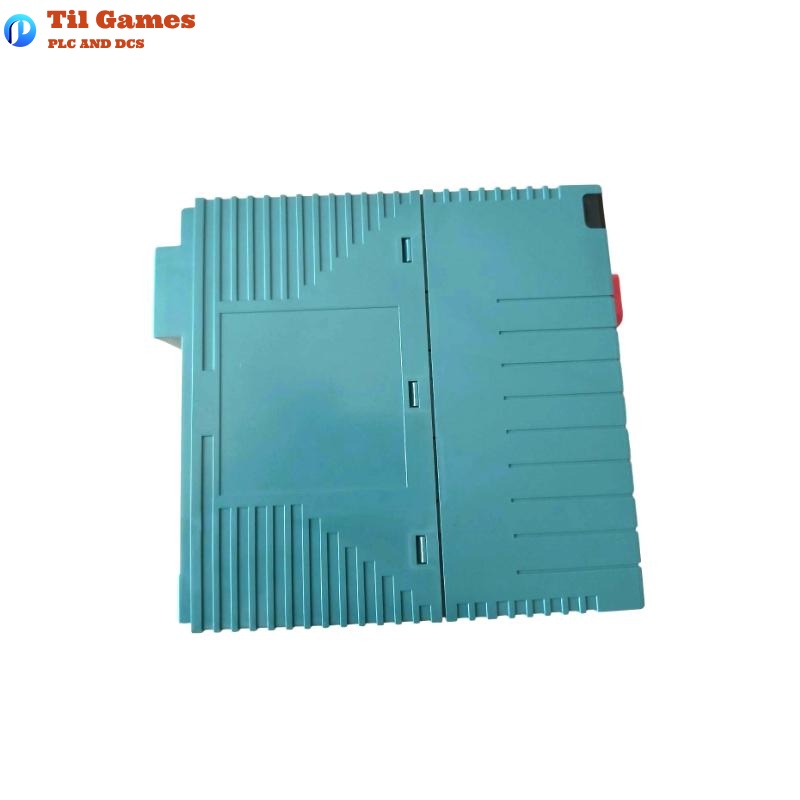

| Model | NFCP501-W05 (CPU Module with 2 Ethernet ports, Extended Functions) |
| Processor | Intel Atom E3815 1.46 GHz |
| Main Memory | 256 MB ECC RAM |
| Static RAM | 2 MB ECC, battery-backed |
| Secondary Memory | 1 GB onboard flash memory |
| External Media | SD card slot (SDHC 4–32 GB, Class 10) |
| Serial Port | 1 x RS-232C (D-sub 9-pin, male) |
| Network Interfaces | 2 x Ethernet (RJ-45) |
| Ethernet Speed | 10/100/1000 Mbps (10BASE-T, 100BASE-TX, 1000BASE-T) |
| I/O Interface | SB Bus (duplexed supported) |
| RAS Features | Watchdog timer, temperature monitor, diagnostics |
| Battery | 1000 mAh graphite fluoride lithium battery (exchangeable online) |
| Power Supply Voltage | 5 V DC ±5% |
| Power Consumption | Max. 1200 mA |
| LED Indicators | 3 CPU status, 2 Ethernet status, 1 SD card, 1 EXEC LED |
| Switches | RESET, SHUT DOWN, FUNC, EXEC |
| Dimensions (W x H x D) | 65.8 x 130 x 149.3 mm |
| Weight | 0.9 kg |
| Duplex Configuration | Supported (requires same model, suffix, and software version) |
| Slot Occupation | 2 slots |
FAQ
FAQ
Q1: Does the NFCP501-W05 support CPU redundancy?
A1: Yes, it supports CPU duplex configuration with identical model, suffix codes, and software version.
Q2: What communication interfaces are available on the NFCP501-W05?
A2: It has two Ethernet ports (RJ-45) and one RS-232C serial port for data communication.
Q3: What memory specifications does it offer?
A3: It includes 256 MB ECC RAM, 2 MB ECC static RAM (battery-backed), and 1 GB onboard flash memory.
Q4: Is SD card expansion supported?
A4: Yes, one SDHC slot is available, supporting Class 10 cards ranging from 4 GB to 32 GB.
Q5: What is the operating voltage and current consumption?
A5: It operates on 5 V DC ±5% with a maximum current draw of 1200 mA.
Q6: What is the operating temperature range?
A6: The module supports extended temperatures from -20°C to +70°C.
Q7: What are the dimensions and weight of the module?
A7: The module measures 65.8 x 130 x 149.3 mm and weighs 0.9 kg.
Q8: What control systems is the NFCP501-W05 compatible with?

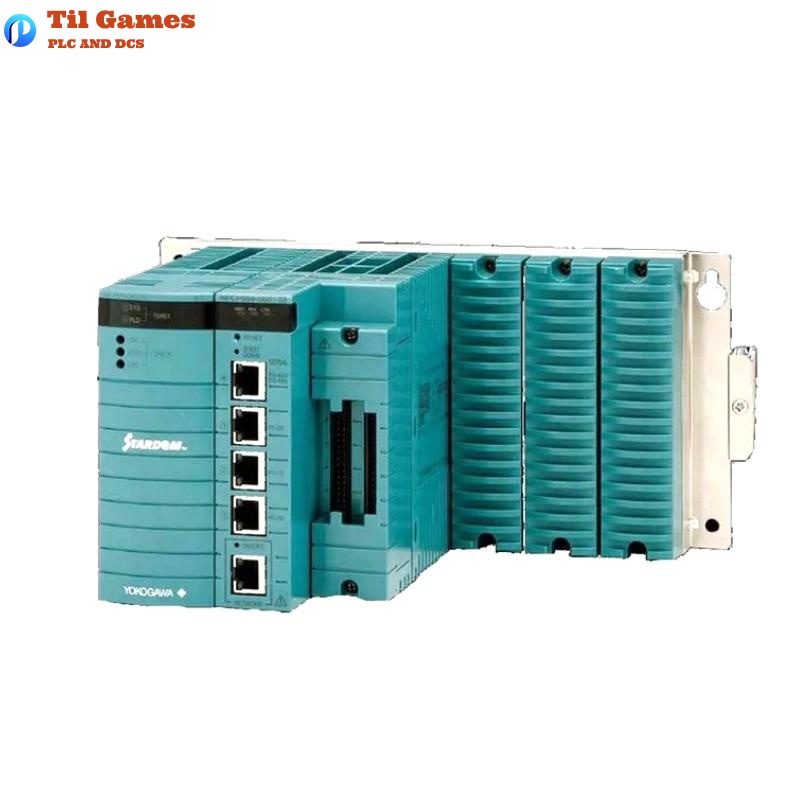

A8: It is designed for Yokogawa’s STARDOM FCN-500 autonomous controller systems as the core CPU module.
