Technical Specifications
| Parameter | Specification |
|---|---|

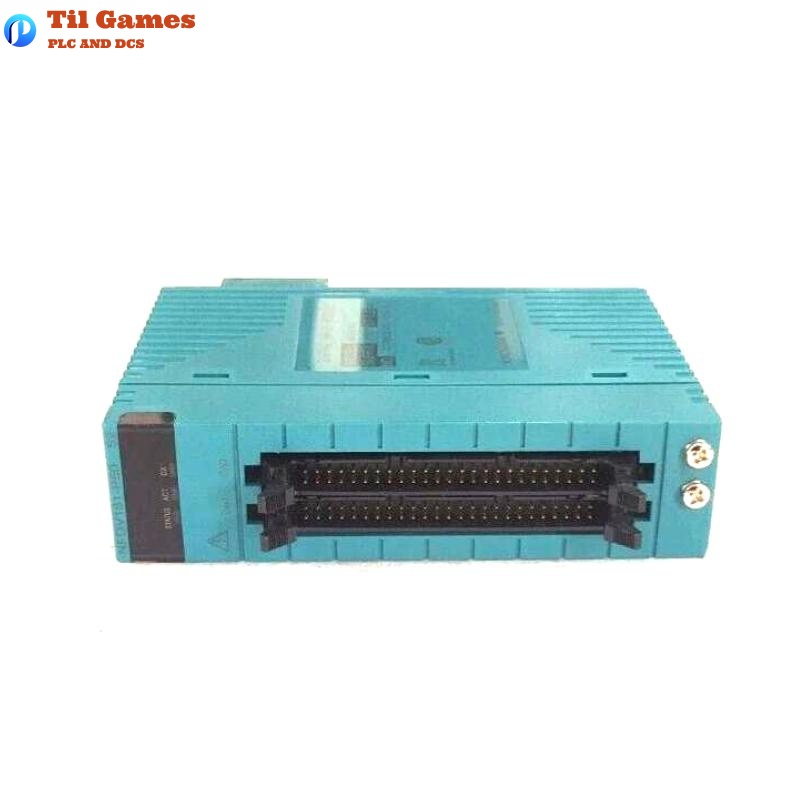

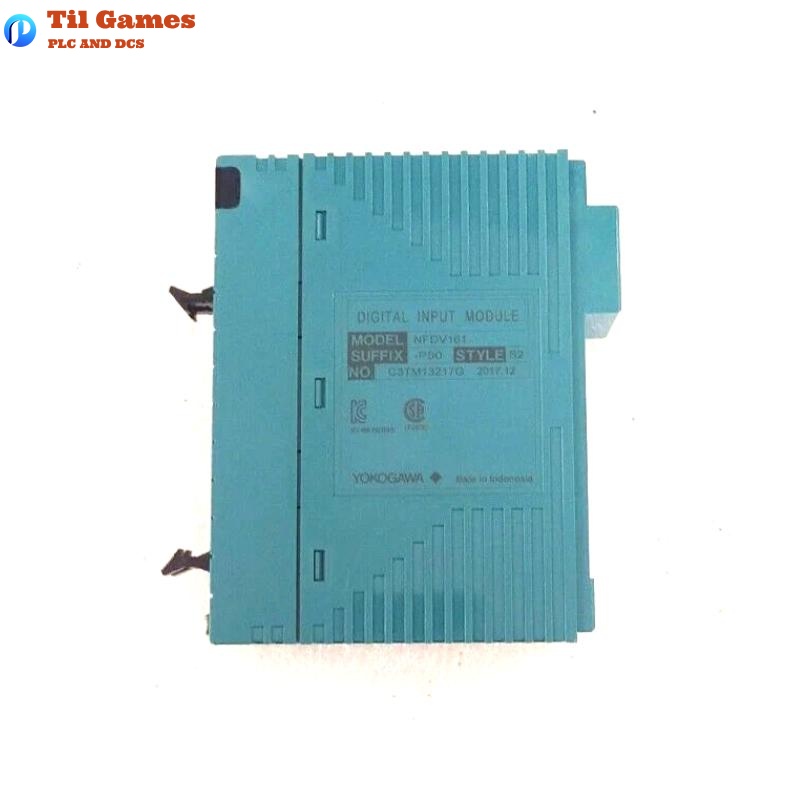

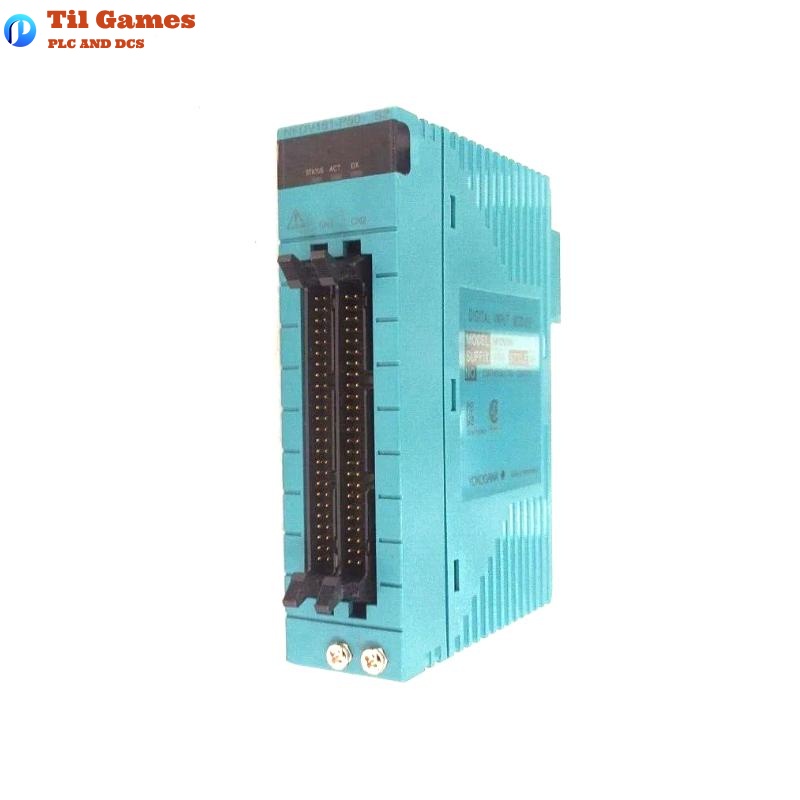

| Model | NFDV161-P50 |
| Type | Digital Input Module |
| Number of Input Channels | 64 |
| Rated Input Voltage | 24 V DC |
| Input ON Voltage | 20 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Input Current at Rated Voltage | 2.5 mA ±20% per channel |
| Instantaneous Max Input Voltage | 30 V DC |
| Withstanding Voltage (Input-System) | 2000 V AC, 1 minute |
| Withstanding Voltage (Between Commons) | 500 V AC, 1 minute (every 16 channels) |
| Functions | Status input, push button edge detection (CH 1-32) |
| Input Response Time | ≤ 8 ms (status input) |
| Minimum ON Detection Time | 20 ms (push button input) |
| Max ON/OFF Cycle | 25 Hz (push button input) |
| Max Current Consumption | 550 mA (5 V DC) |
| External Connection | MIL connector cable |
| Dimensions | 130 x 107.5 x 32.8 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: How many digital input channels does the NFDV161-P50 support?
A1: It supports 64 digital input channels.
Q2: What is the rated input voltage of the module?
A2: The rated input voltage is 24 V DC.
Q3: What is the maximum instantaneous input voltage allowed?
A3: It allows a maximum instantaneous input voltage of 30 V DC.
Q4: Does it support push button input detection?
A4: Yes, push button edge detection is supported on channels 1 to 32.
Q5: What is the input response time of the module?
A5: The response time is 8 milliseconds or less for status input.
Q6: What type of external connection does it use?
A6: It uses a MIL connector cable.
Q7: What are the module’s dimensions and weight?
A7: The dimensions are 130 x 107.5 x 32.8 mm, and the weight is 0.3 kg.
Q8: What is the isolation capability of the module?
A8: The isolation is 2000 V AC between input signal and system, and 500 V AC between commons (per 16 channels).
