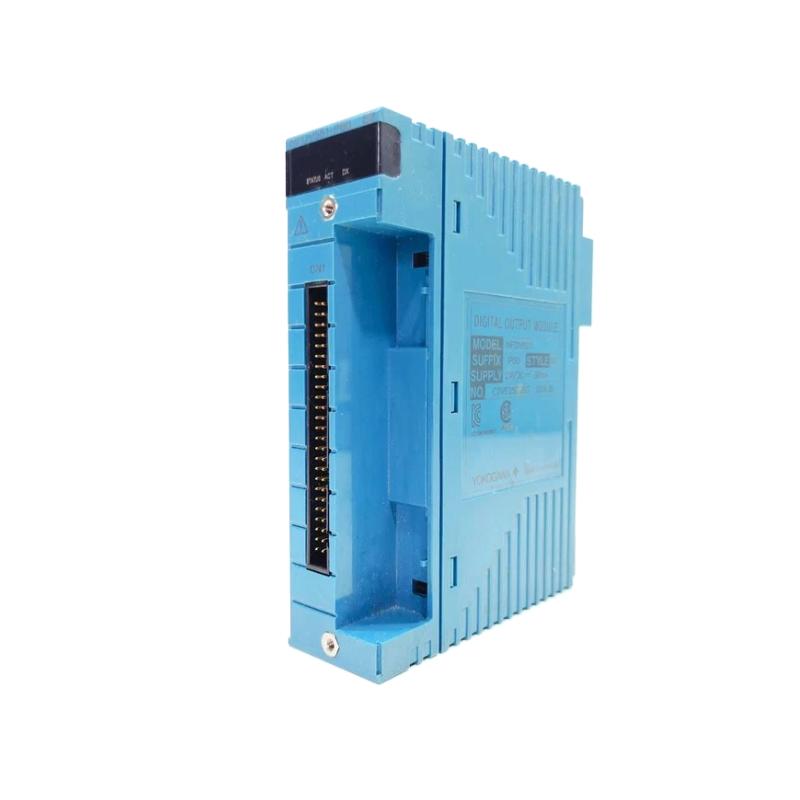

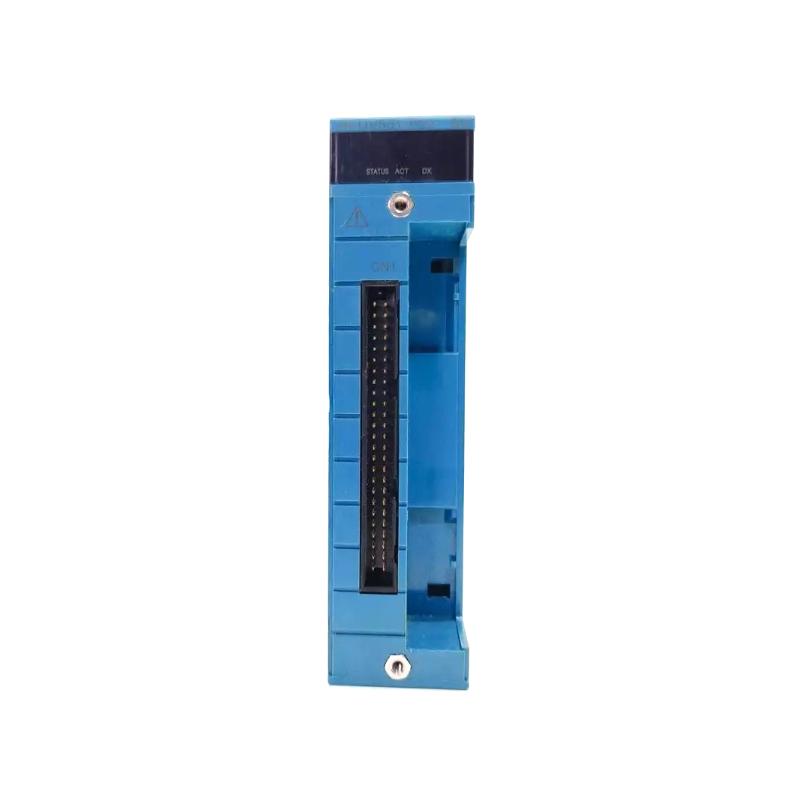

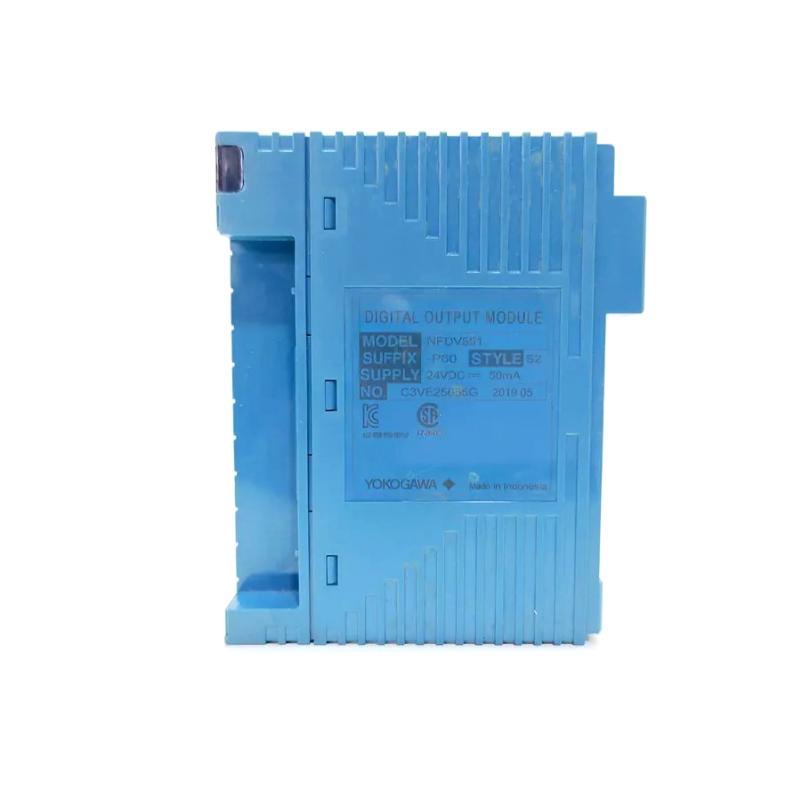

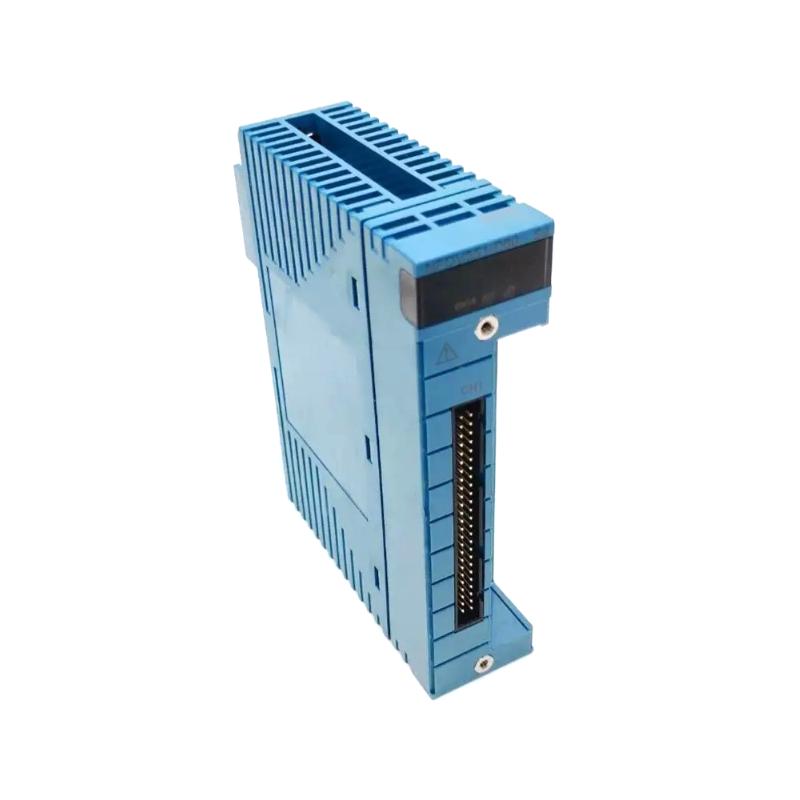

Yokogawa NFDV551-P60 Digital Output Module

Frequently Asked Questions (FAQ)

Q1: How many output channels does the NFDV551-P60 have?
A1: It supports 32 individual digital output channels.

Q2: What is the maximum load current per output channel?
A2: Each channel can handle up to 100 mA at 26.4 V DC.

Q3: What is the output type of this module?
A3: The output type is current sink.

Q4: Is there any leak current when the output is off?
A4: Yes, the maximum leak current is 0.1 mA when OFF.

Q5: Does the module support fallback functions?
A5: Yes, it supports HOLD, OFF, and NO modes, applied commonly to all channels.

Q6: What is the voltage range for the external power supply?
A6: The field power supply must be within 20.4 to 26.4 V DC.

Q7: What are the dimensions and weight of the NFDV551-P60?
A7: It measures 32.8 × 107.5 × 130 mm and weighs 0.2 kg.

Q8: Does this module have status indicators?
A8: Yes, each channel has a green LED that lights up when the output is ON.

Digital Output Module NFDV551-P60 Yokogawa
