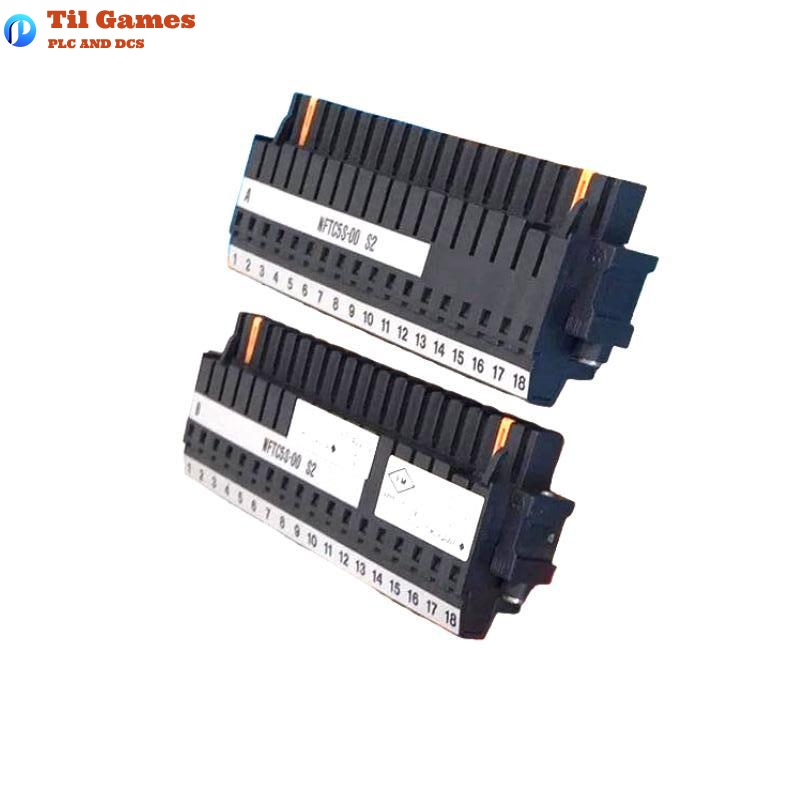

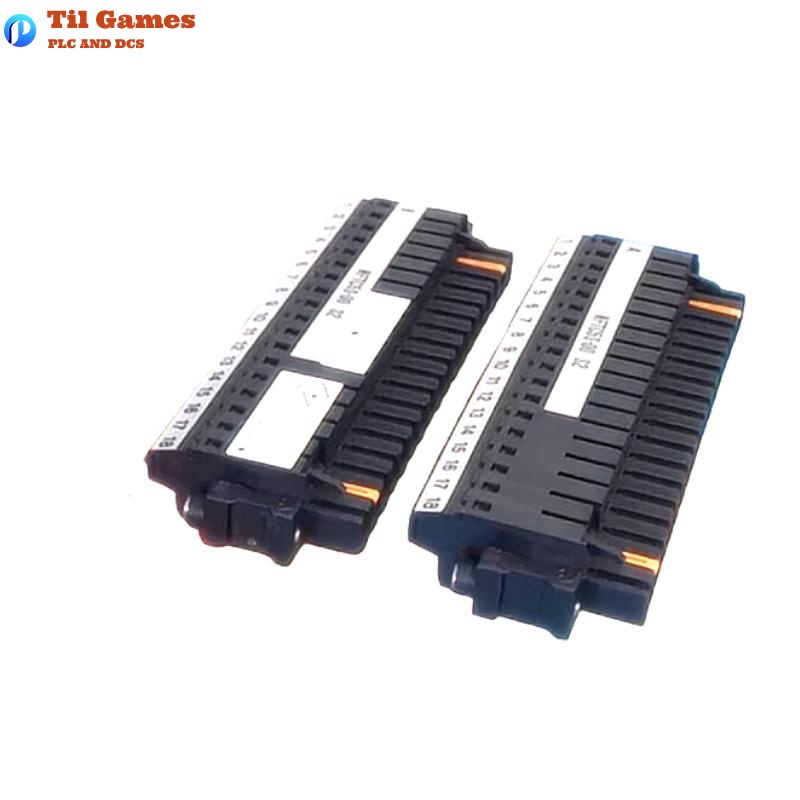

Yokogawa NFTC5S-00 Pressure Clamp Terminal Block

FAQ

Q1: What is the main function of the NFTC5S-00 terminal block?
A1: It serves as a pressure clamp terminal interface for wiring field digital signals to Yokogawa FCN/FCJ digital I/O modules such as the NFDV157 and NFDV557.

Q2: Can NFTC5S-00 be used with analog modules?
A2: No, NFTC5S-00 is designed for digital I/O modules and is not compatible with analog modules which require MIL connectors.

Q3: What wire sizes can be used with the NFTC5S-00 terminal block?
A3: It supports wire sizes from 0.5 mm² to 2 mm² without ferrules, and up to 1.5 mm² with ferrules.

Q4: Are ferrules required when connecting wires?
A4: Ferrules are optional but recommended for improved contact reliability; the block supports both bare wires and ferrules.

Q5: Does NFTC5S-00 support MIL connector cables?
A5: No, NFTC5S-00 is specifically for pressure clamp connections and does not support MIL connectors.

Q6: What is the standard peel-off length for wires when using ferrules?
A6: For ferrule connections, a peel-off length of 13 mm is recommended.

Q7: Which Yokogawa modules are compatible with NFTC5S-00?
A7: It is compatible with modules such as NFDV157 and NFDV557 that require pressure clamp terminal blocks.

Q8: What are the dimensions and weight of the NFTC5S-00?
A8: The terminal block measures 44 x 102 x 108 mm and weighs approximately 0.2 kg.

NFTC5S NFTC5S-00 Pressure Clamp Terminal Block Yokogawa
