Technical Specifications
| Parameter | Description |
|---|---|

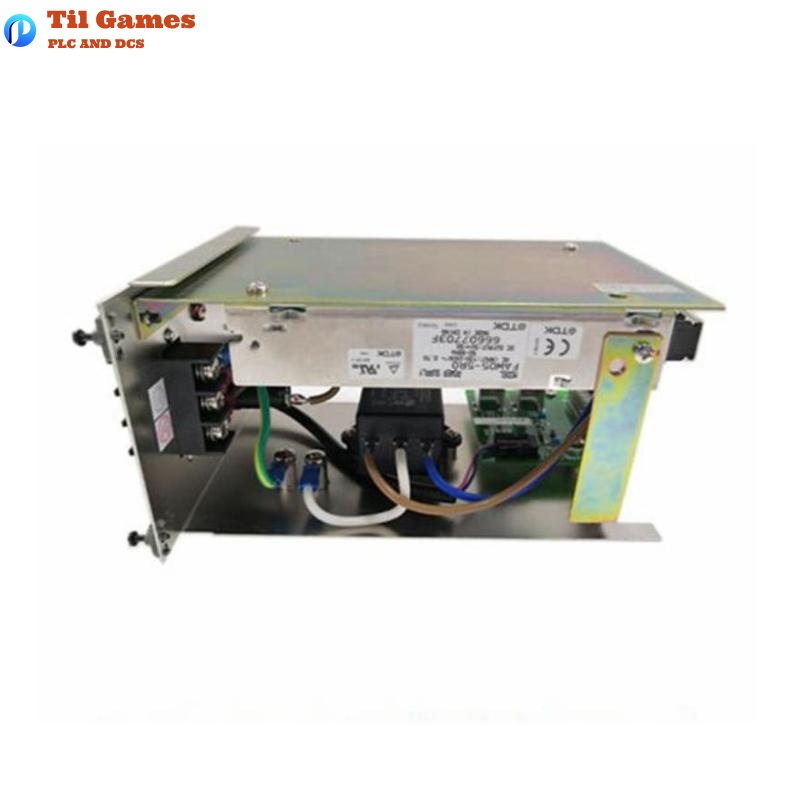

| Model | Yokogawa PW502 Power Supply Module |
| Output Voltage | 5 V DC |
| Output Current | 6 A |
| Rated Input Voltage | 24 V DC |
| Input Voltage Range | 21.6 V to 26.4 V DC |
| Power Consumption | Approx. 150 W (including power conversion loss) |
| Operating Temperature Range | 0 to 55°C |
| Storage Temperature Range | -20 to 70°C |
| Operating Humidity Range | 5% to 95% RH (non-condensing) |
| Certifications | FM, CSA, ATEX, IECEx explosion protection |
| Mounting | Base-mounted on FIO or N-IO enclosure |
| Dimensions | 200 x 130 x 90 mm |
| Weight | 1 kg |
FAQ
FAQ
Q1: What input voltage range does the PW502 support?
A1: The module supports an input voltage range of 21.6 V to 26.4 V DC, with a rated input of 24 V DC.
Q2: What is the output capability of the PW502?
A2: It delivers a stable 5 V DC at 6 A, suitable for powering FIO systems.
Q3: What environmental conditions can it operate in?
A3: Operating temperature is 0 to 55°C, and storage temperature is -20 to 70°C.
Q4: Is the PW502 certified for hazardous locations?
A4: Yes, it is certified by FM, CSA, ATEX, and IECEx for Zone 2/Division 2 hazardous areas.
Q5: Where must the PW502 be installed?
A5: It must be installed in a sealed metal cabinet with at least IP54 protection.
Q6: What systems is the PW502 designed for?
A6: It is designed for the Yokogawa ProSafe-RS safety instrumented system.
Q7: What precautions should be taken during maintenance?
A7: Power must be off and there must be no flammable gas present during maintenance.
Q8: Does the PW502 support redundancy?
A8: Yes, it can be configured in a redundant setup with another PW502 for higher reliability.
