Technical Specifications
| Parameter | Details |
|---|---|

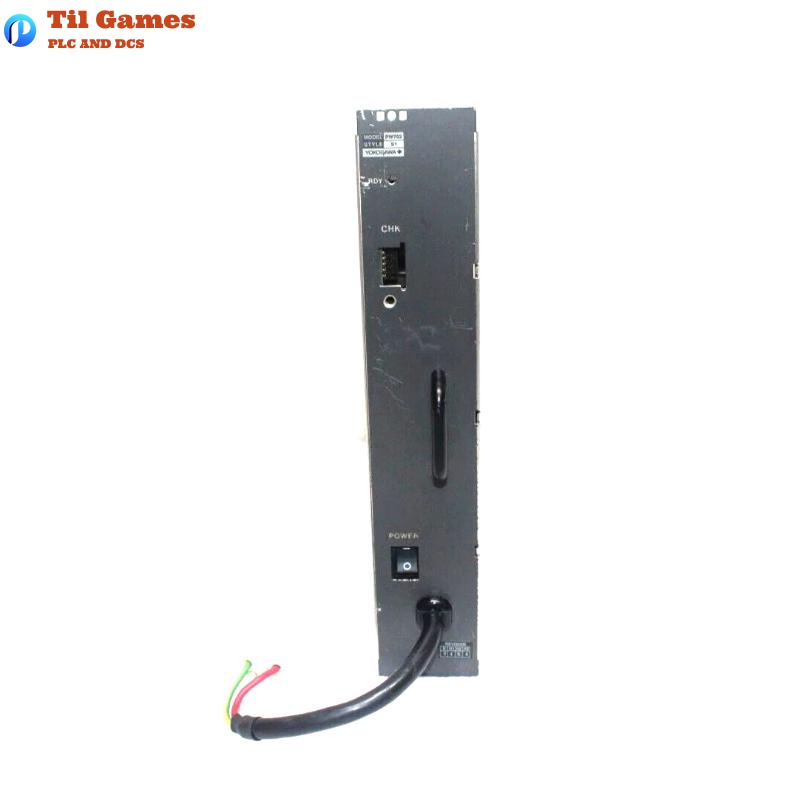

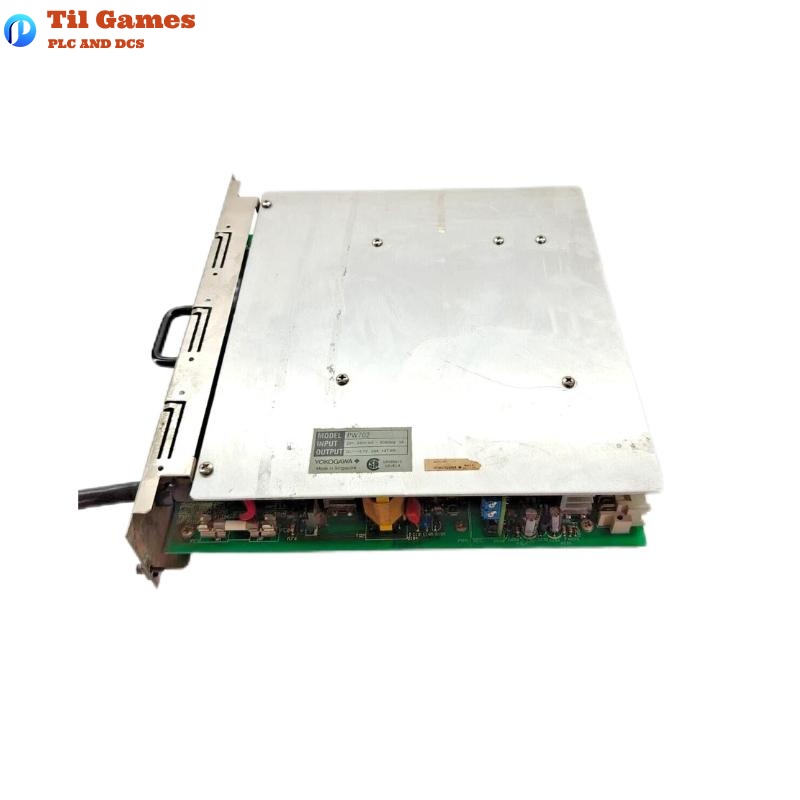

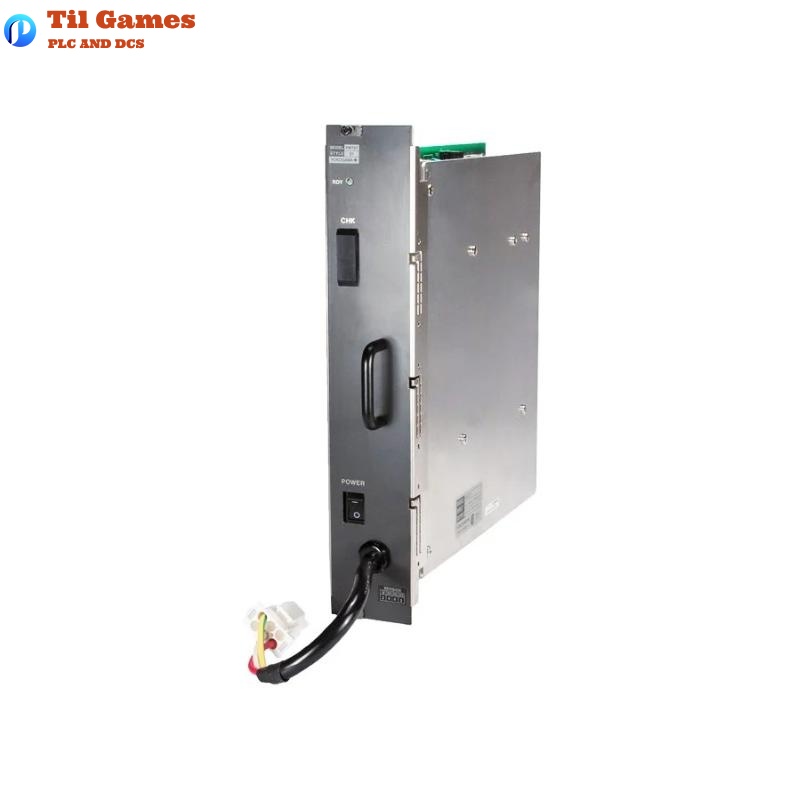

| Product Name | PW702 Power Supply Module |
| Manufacturer | Yokogawa |
| Model | PW702 |
| Function | System power supply unit |
| Input Voltage | 100–120/220–240 VAC |
| Input Frequency | 50/60 Hz |
| Output Voltage | 5 V DC, 24 V DC |
| Redundancy Support | Hot standby supported |
| Mounting Type | Base-mounted |
| Cooling Method | Natural air cooling |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 254 x 76 x 279 mm |
| Weight | 2 kg |
| Certifications | CE, CSA, UL |
FAQ
FAQ
Q1: Does the PW702 support redundant power configuration?
A1: Yes, the PW702 supports hot standby redundancy for uninterrupted operation.
Q2: What input voltages are supported by the module?
A2: It accepts 100–120 VAC and 220–240 VAC input voltages.
Q3: Is external cooling equipment required?
A3: No, it uses natural air cooling and does not require additional cooling.
Q4: What are the output voltage specifications?
A4: It provides 5 V DC and 24 V DC output for system components.
Q5: What is the operating temperature range?
A5: The operating range is 0 to 50°C; storage is -20 to 70°C.
Q6: Can the PW702 be hot-swapped during operation?
A6: Hot-swapping is not recommended; installation should be done with power off.
Q7: Does the module comply with safety certifications?
A7: Yes, it complies with CE, CSA, and UL standards.
Q8: Which Yokogawa systems is it compatible with?
A8: The PW702 is designed for use with Yokogawa’s CENTUM VP and ProSafe-RS systems.
