Technical Specifications
| Item | Specification |
|---|---|
| Model | SAI143-S33 |

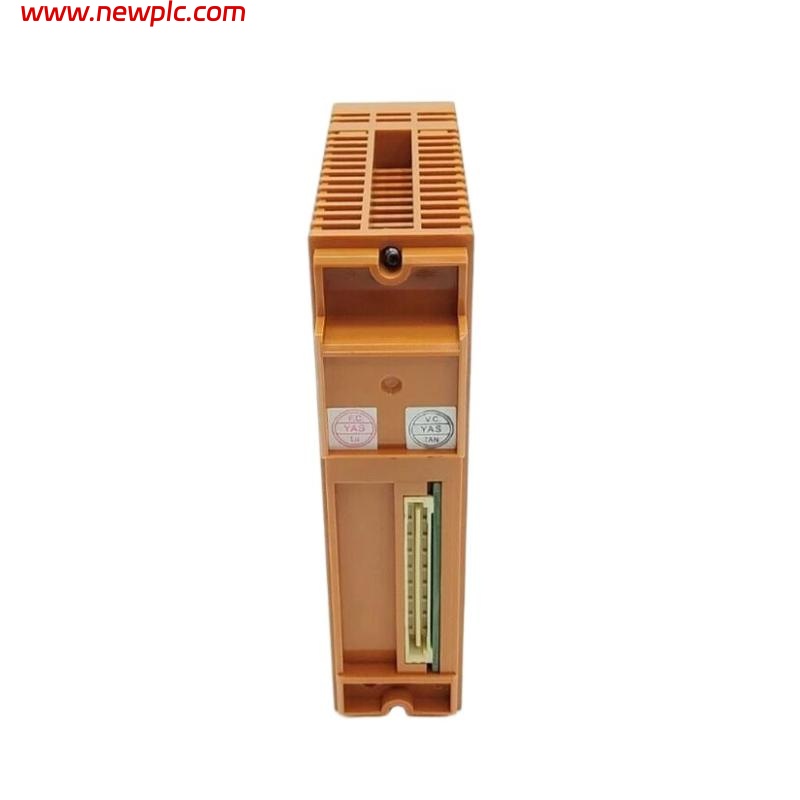

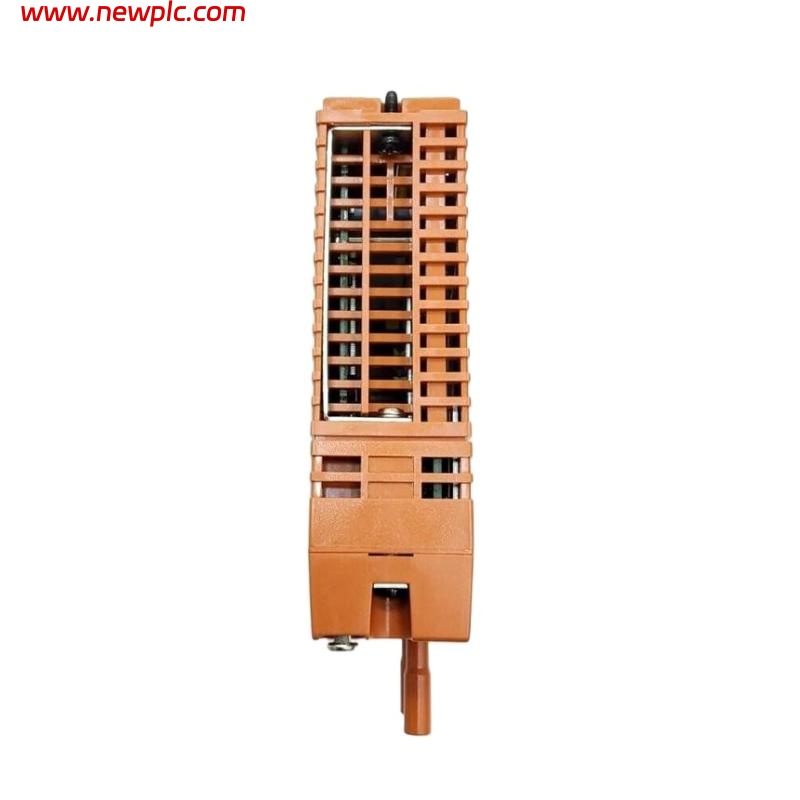

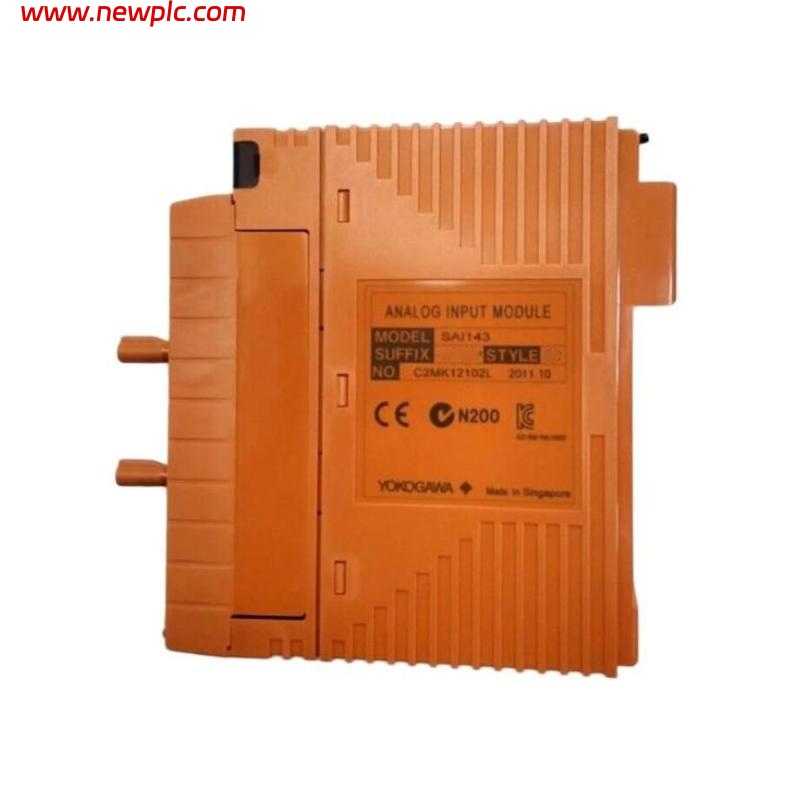

| Type | Analog Current Input Module (16 channels, module isolation) |
| Input Range | 4 to 20 mA (rated), 0 to 25 mA (permissible) |
| Input Impedance | Powered ON: 250 Ω + current value; Powered OFF: minimum 500 kΩ |
| Input Accuracy | ±16 µA (input range 1 to 23 mA) |
| Data Update Rate | 40 ms |
| Withstanding Voltage | 1.5 kV AC (input to system) |
| Power Consumption | 5 V system: 320 mA; 24 V system: 550 mA |
| External Connection | Pressure clamp terminal, MIL cable, dedicated signal cable |
| Operating Temperature | -20 to 70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Dimensions | 130 x 107.5 x 32.8 mm |
| Weight | 0.34 kg |
FAQ
FAQ
Q1: What input signal types does the SAI143-S33 module support?
A1: It supports analog current inputs of 4 to 20 mA.
Q2: What is the input impedance of the module?
A2: Powered ON: 250 Ω + current value; Powered OFF: minimum 500 kΩ.
Q3: What is the input accuracy of the module?
A3: ±16 µA for input ranges from 1 to 23 mA.
Q4: What is the data update rate of the module?
A4: The data update rate is 40 milliseconds.
Q5: What is the withstanding voltage of the module?
A5: The withstanding voltage is 1.5 kV AC from input to system.
Q6: What is the power consumption of the module?
A6: 320 mA for a 5 V system; 550 mA for a 24 V system.
Q7: What external connection methods are supported by the module?
A7: Supports pressure clamp terminals, MIL cables, and dedicated signal cables.
Q8: What is the operating temperature range of the module?
A8: The operating temperature range is -20 to 70°C.
