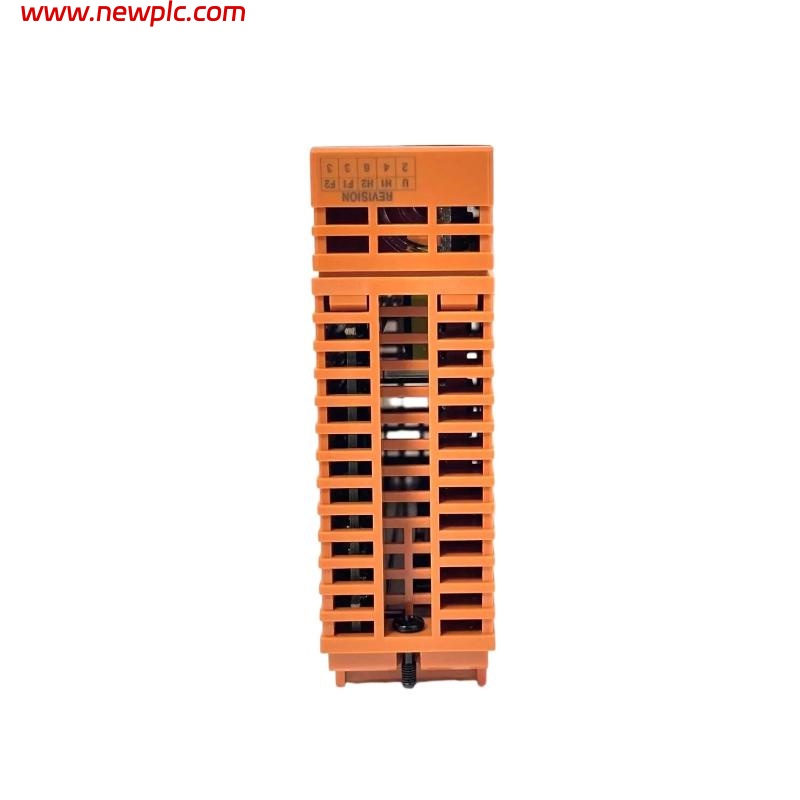

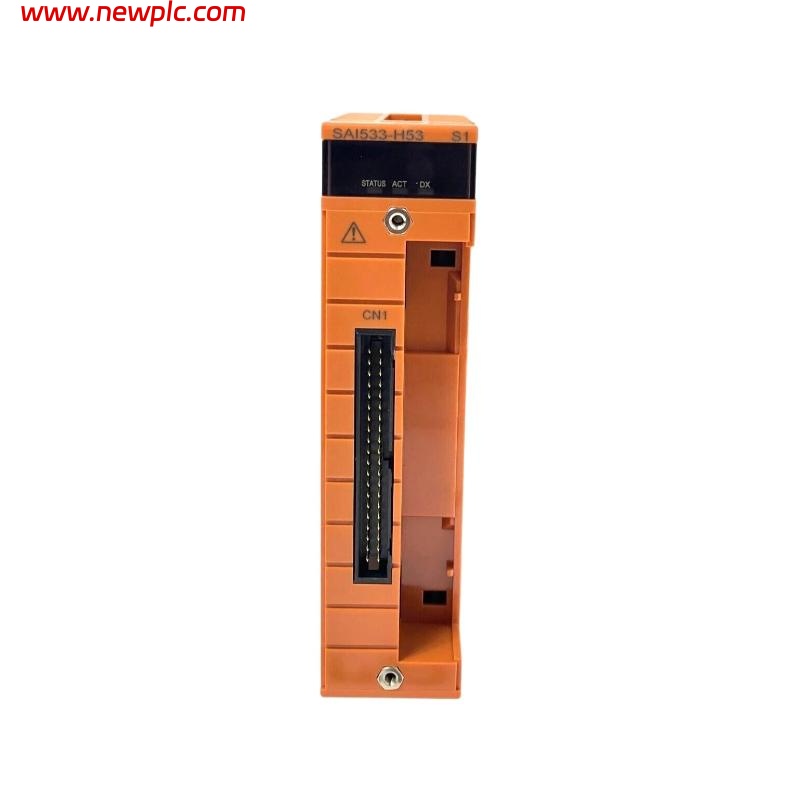

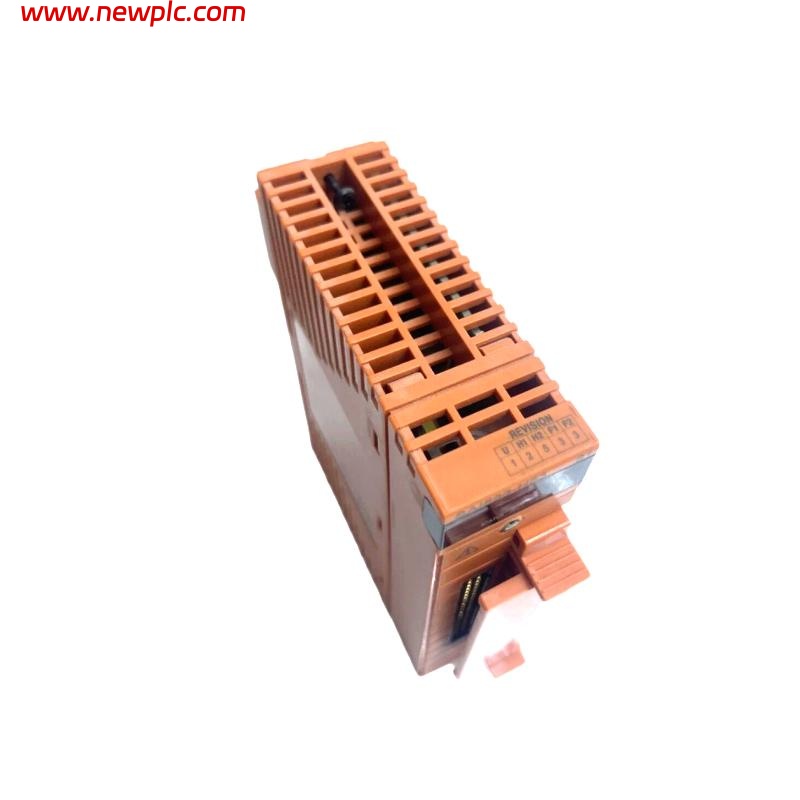

Yokogawa SAI533-H53/A4D00 Analog Output Module

FAQ

• Q1: What is the update frequency of the SAI533-H53/A4D00 analog output module?
  A1: The data update frequency is 40 ms, ensuring timely response for control processes.

• Q2: How precise is the current output of this module?
  A2: The module provides an accuracy of ±48 µA for each channel.

• Q3: What type of communication protocol does the module support?
  A3: It supports HART communication, allowing remote configuration and diagnostics.

• Q4: Can this module be used in redundant configurations?
  A4: Yes, it supports dual-redundant configurations to enhance system reliability.

• Q5: What is the allowable load resistance for each output channel?
  A5: Each channel can drive loads between 230 and 600 Ω at the rated output range.

• Q6: What is the operating temperature drift of the module?
  A6: The temperature drift is ±16 µA per 10°C, ensuring stable performance across temperature variations.

• Q7: What types of external connections are available for the module?
  A7: It can connect via pressure clamp terminals, MIL cables, or dedicated signal cables.

• Q8: What are the physical dimensions and weight of the module?
  A8: The module measures 130 x 124 x 32.8 mm and weighs 0.33 kg.

Analog Output Module SAI533-H53 SAI533-H53/A4D00 Yokogawa Yokogawa SAI533
