Technical Specifications
| Item | Specification |
|---|---|

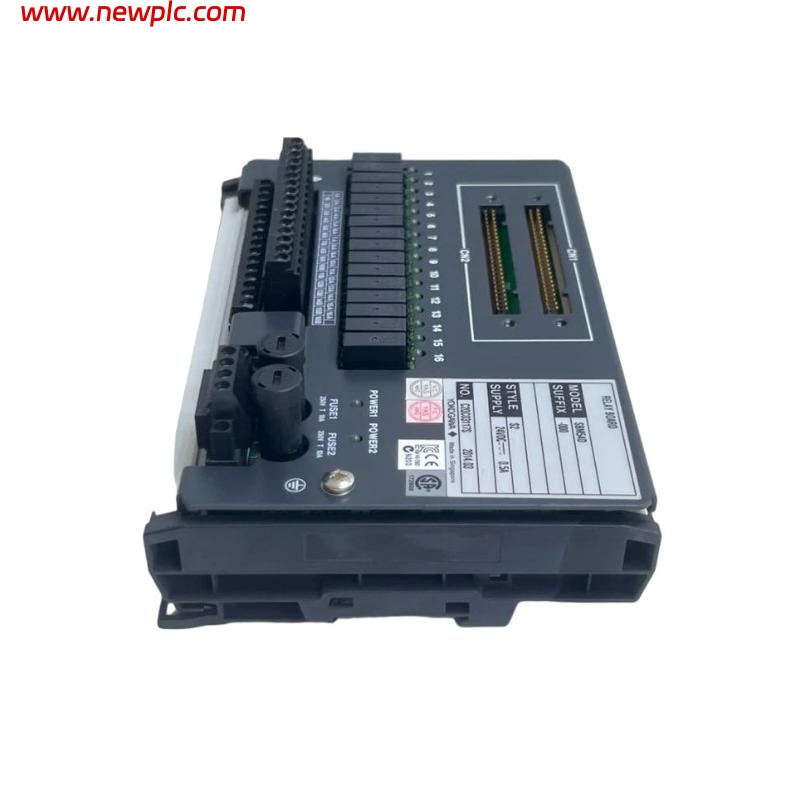

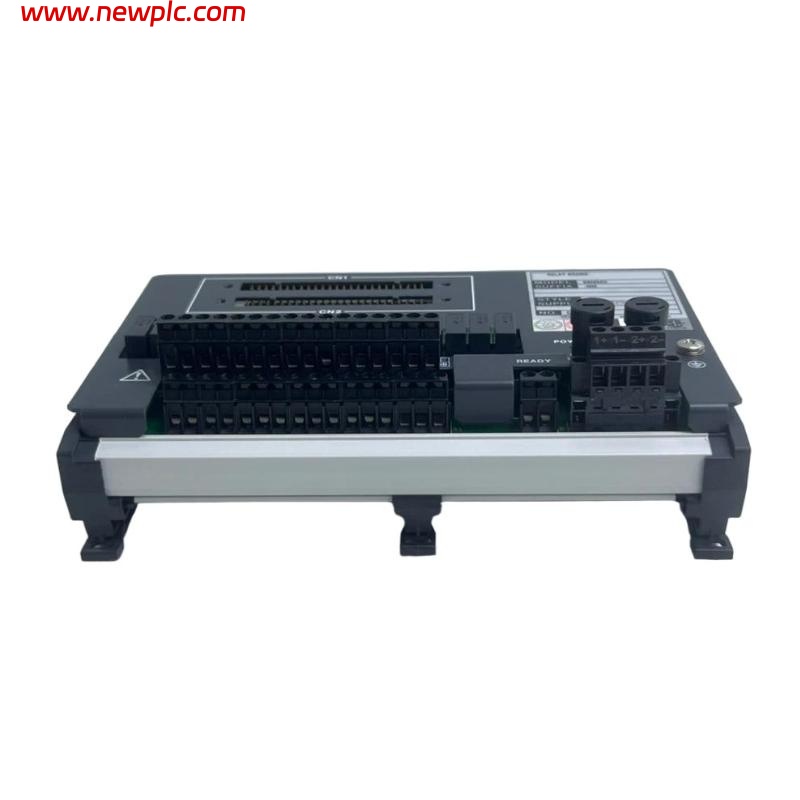

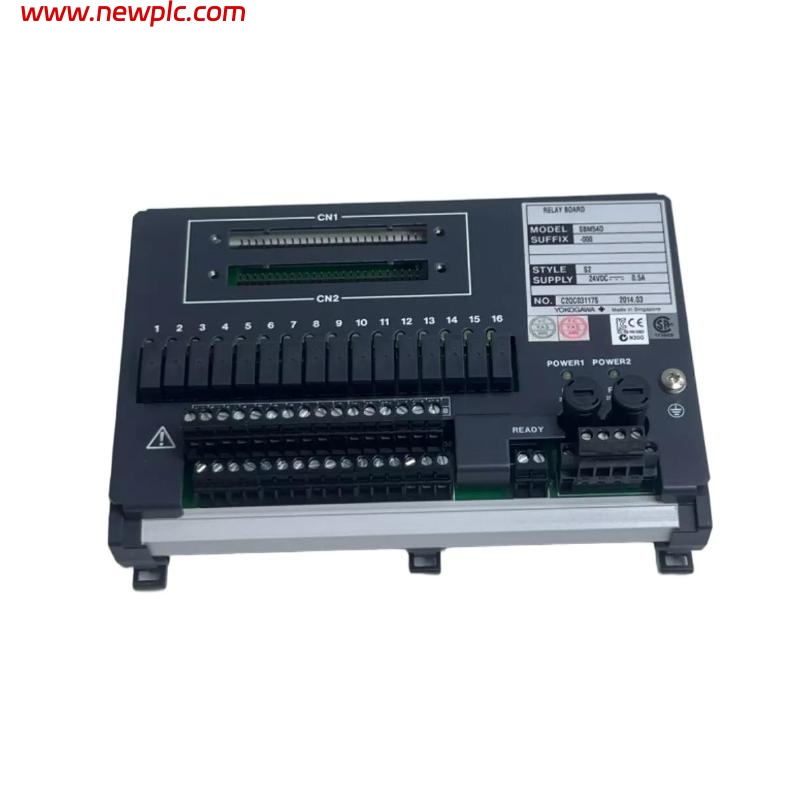

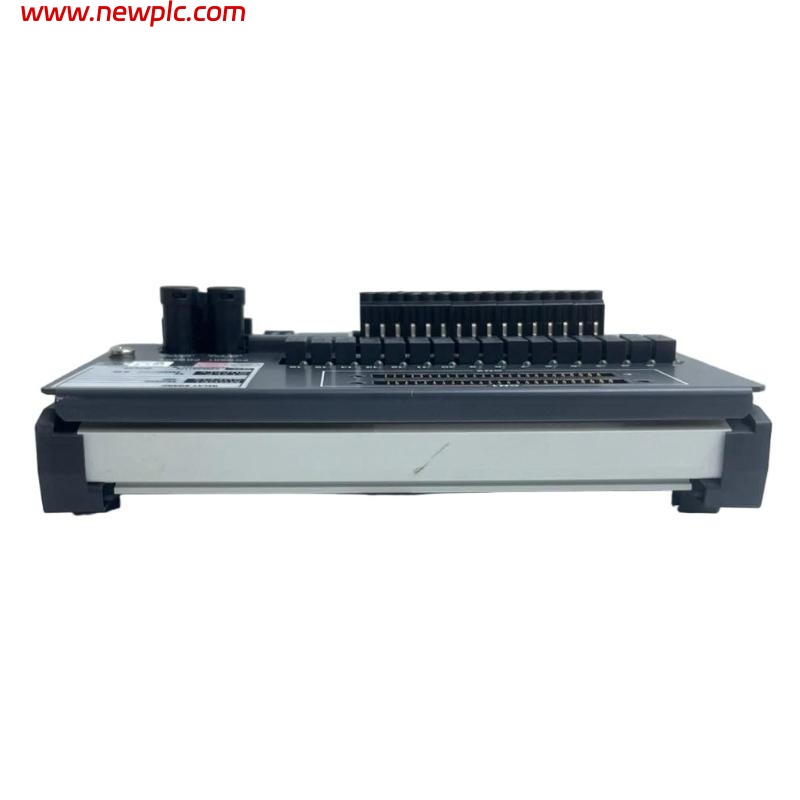

| Product Name | Yokogawa SBM54D-000 Relay Board |
| Product Type | Relay Board |
| Application | Output control in Distributed Control System (DCS) |
| Relay Type | Electromagnetic relay |
| Contact Configuration | DPDT (Double Pole Double Throw) or as per model |
| Max Switching Current | 5 A @ 250 V AC / 30 V DC |
| Max Switching Power | 1250 VA / 150 W |
| Response Time | ≤ 10 ms |
| Power Supply | 24 V DC or 24 V AC (depending on model) |
| Operating Temperature | 0°C to +55°C |
| Protection Rating | IP20 |
| Dimensions | 190 x 127.8 x 67 mm |
| Weight | 0.6 kg |
| Compatibility | Compatible with Yokogawa SBM series modules and DCS |
FAQ
FAQ
Q1: What is the main application of the SBM54D-000 board?
A1: Used in distributed control systems to perform output control by switching external loads via relays.
Q2: What types of relays are supported?
A2: Uses electromagnetic relays, typically DPDT configuration.
Q3: What is the maximum switching current and power?
A3: Maximum switching current is 5 A, maximum power is 1250 VA / 150 W.
Q4: What is the response time?
A4: Response time is ≤ 10 ms.
Q5: What is the operating voltage?
A5: Depending on the model, 24 V DC or 24 V AC.
Q6: What is the operating temperature range?
A6: 0°C to +55°C, suitable for standard industrial environments.
Q7: What are the dimensions and weight?
A7: Dimensions approximately 190 x 127.8 x 67 mm, weight about 0.6 kg.
Q8: Which systems or modules is it compatible with?
A8: Compatible with Yokogawa SBM series modules and distributed control systems.
