Technical Specifications
| Parameter | Specification |
|---|---|

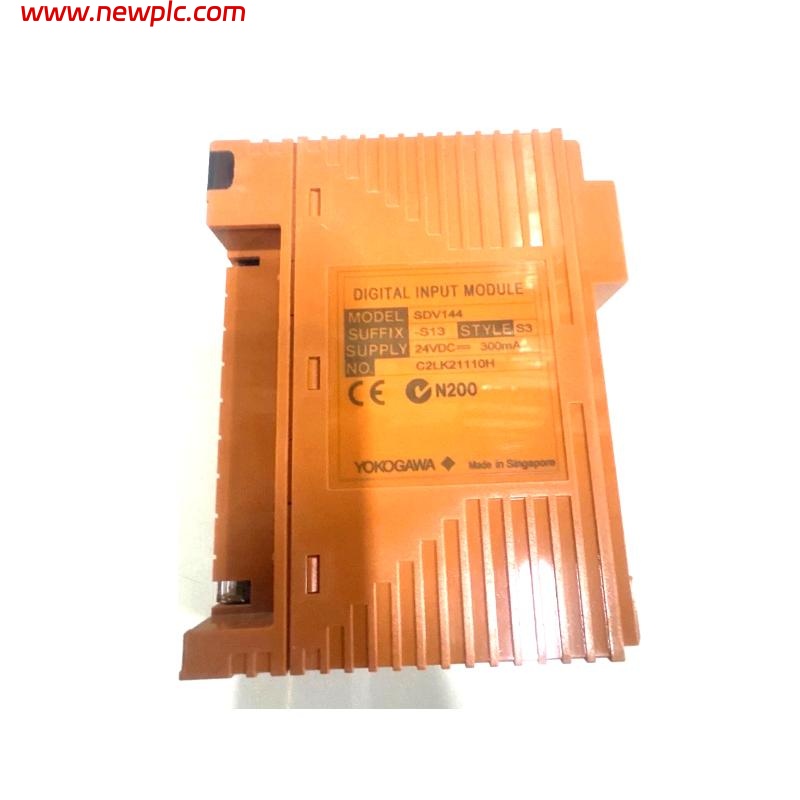

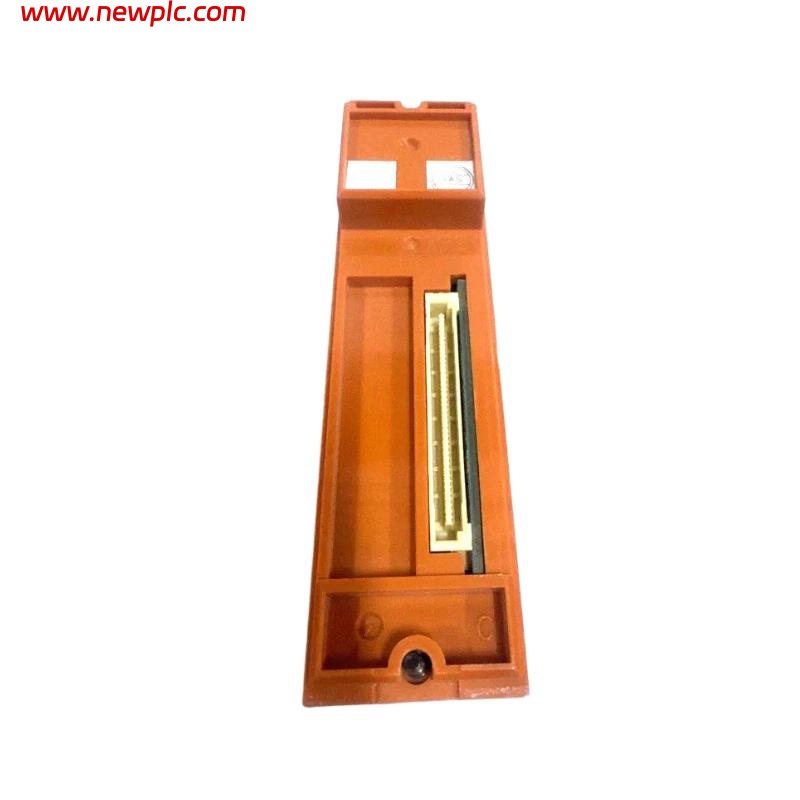

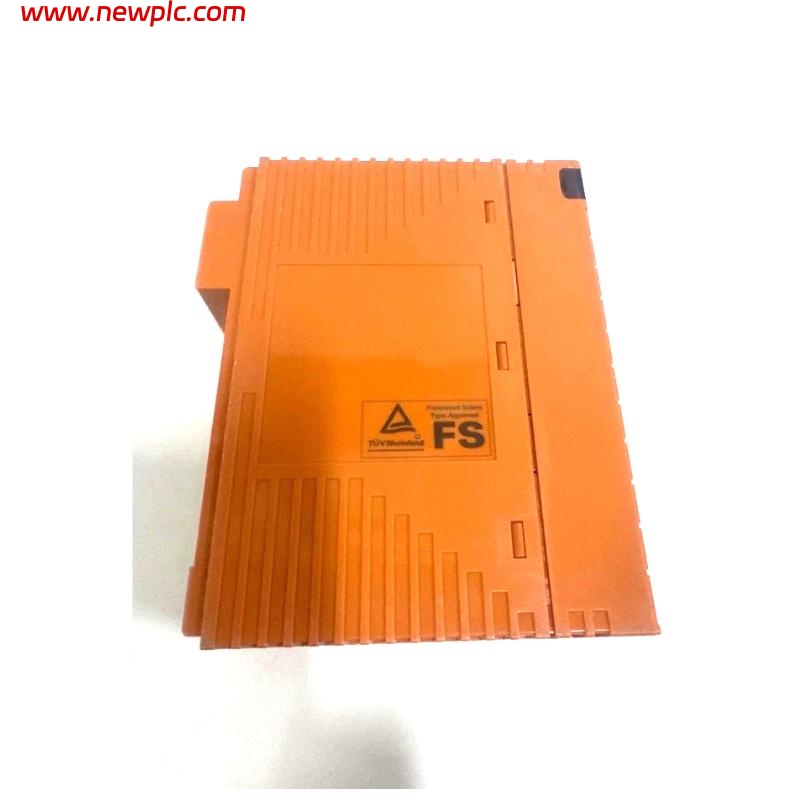

| Model | SDV144-S13/B4D10 |
| Number of Inputs | 16-channel, module isolation |
| Input Signal | No-voltage contact |
| ON Resistance | Max. 1 kΩ |
| OFF Resistance | Min. 100 kΩ |
| Input Current | 6 mA ± 20 % (External power supply, 24 V DC at 0 Ω input) |
| Contact Rating | 24 V DC ±20 %, ≥10 mA |
| External Power Supply | 24 V DC ±20 %, Current capacity: 200 mA |
| Instantaneous Max. Input Voltage | 30.0 V DC |
| Input Response Time | 40 ms maximum |
| Withstand Voltage | 2 kV AC between input signal and system for 1 minute (16-input line collectively connected) |
| Current Consumption | 290 mA max (5 V DC), 140 mA max (24 V DC) |
| Weight | Approx. 0.36 kg |
| Dimensions (W x H x D) | 130 x 32.8 x 107.5 mm |
| External Connection | Pressure clamp terminal, MIL cable, Dedicated signal cable (AKB331) |
FAQ
FAQ
-
Q1: What type of input signals can SDV144-S13/B4D10 accept?
A1: It accepts 24 V DC no-voltage contact signals with module isolation. -
Q2: Can the SDV144 module be configured for dual redundancy?
A2: Yes, dual-redundant configuration is supported with an additional module of the same specification. -
Q3: What is the maximum input voltage the module can tolerate?
A3: The instantaneous maximum permissible input voltage is 30 V DC. -
Q4: What is the response time for input signals?
A4: The maximum input response time is 40 ms. -
Q5: How is the module connected to field devices?
A5: Connections can be made via pressure clamp terminals, MIL cables, or the dedicated signal cable AKB331. -
Q6: What is the module’s current consumption under normal operation?
A6: 290 mA maximum at 5 V DC and 140 mA maximum at 24 V DC. -
Q7: What voltage isolation does the SDV144 provide?
A7: It provides 2 kV AC isolation between input signal and system for 1 minute with all 16 inputs connected collectively. -
Q8: Are there options for preventing wrong module insertion?
A8: Yes, the module supports a prevention pin (/PRP) mechanism to avoid incorrect insertion with signal cables.
