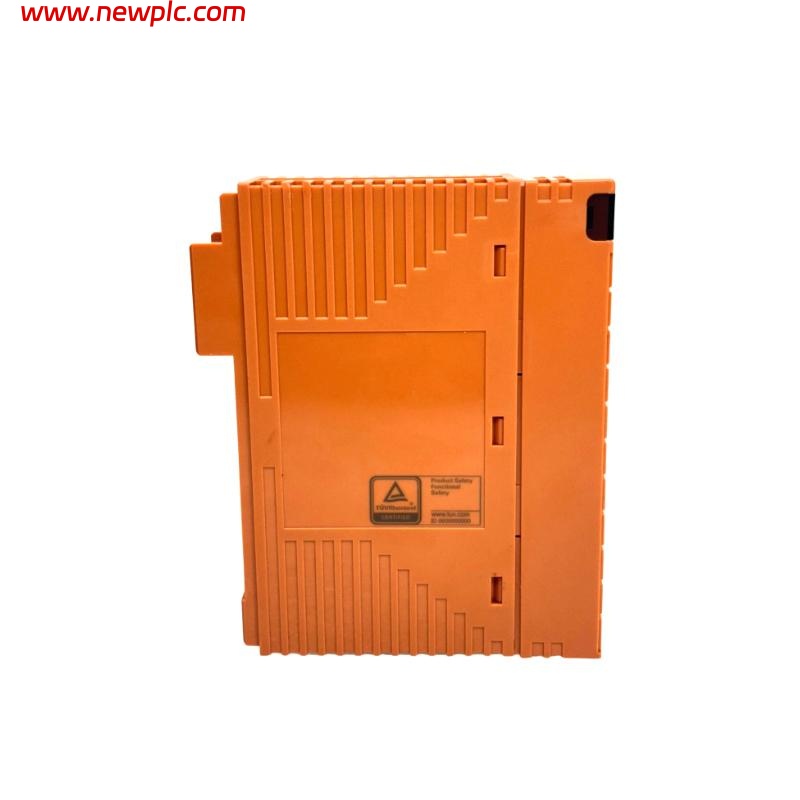

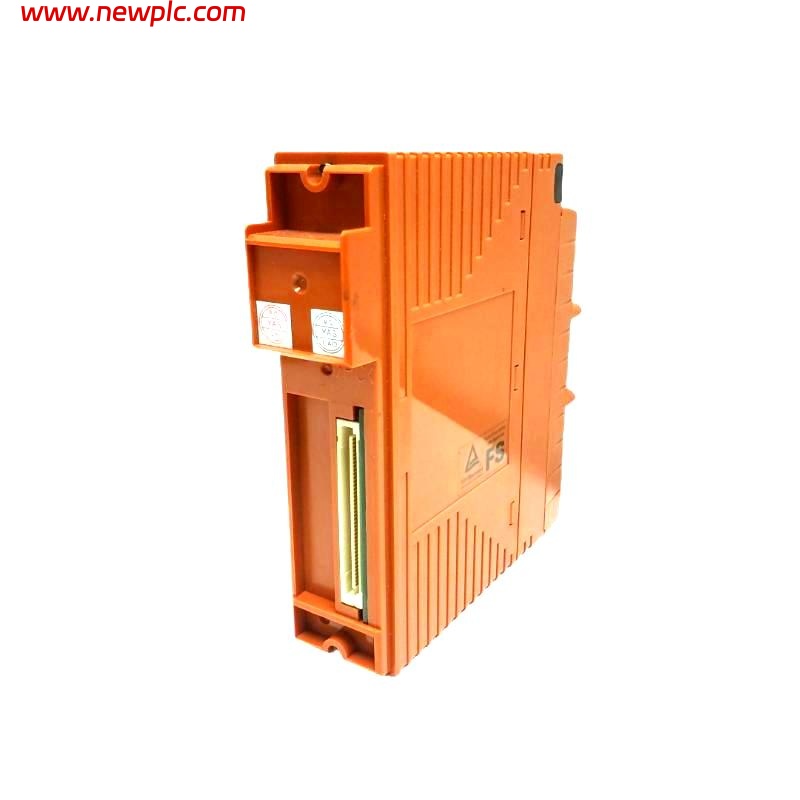

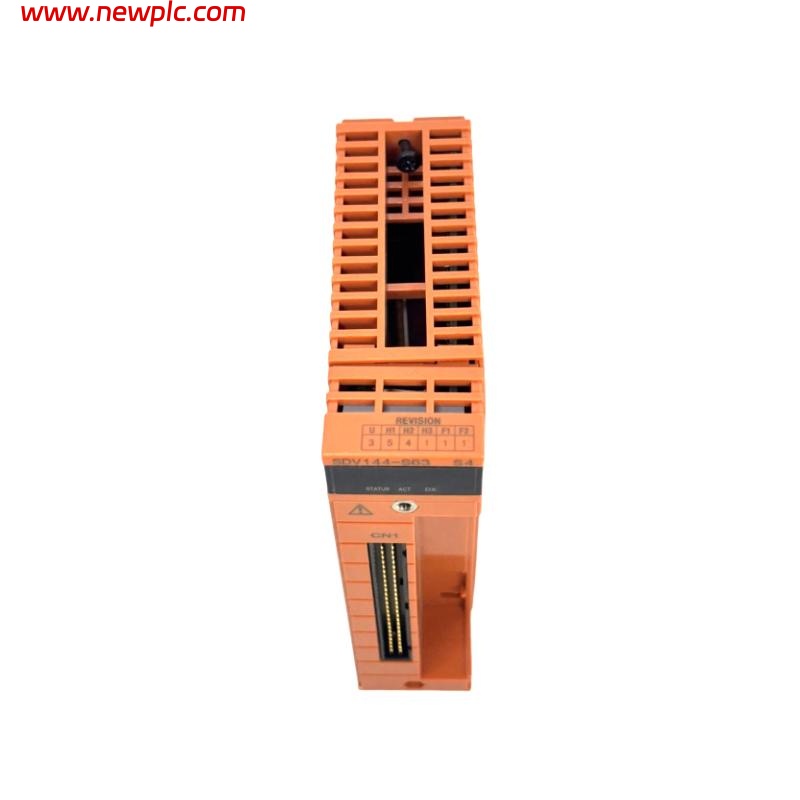

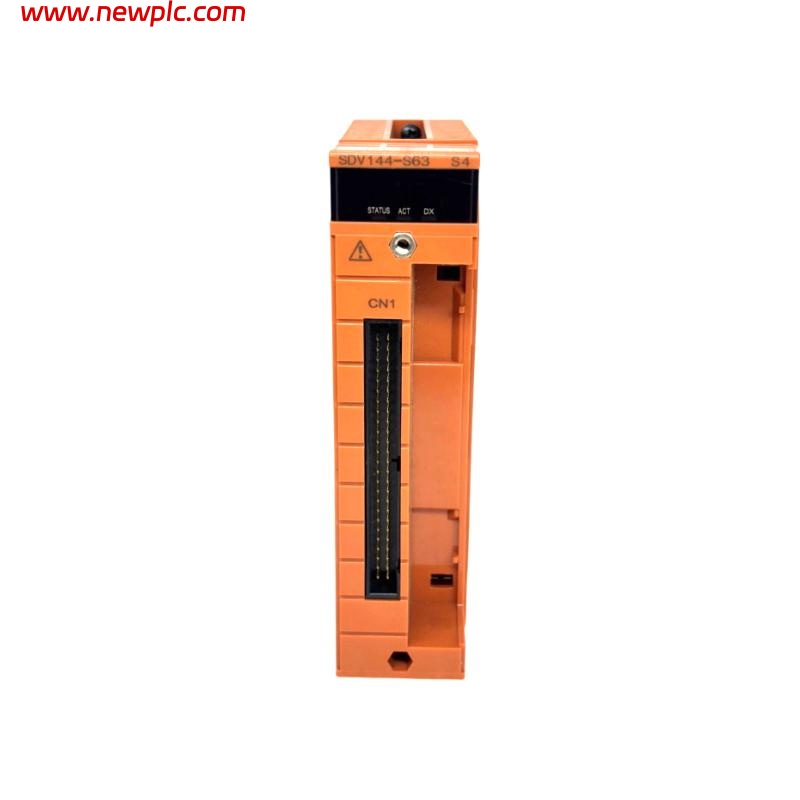

Yokogawa SDV144-S63/PRP Digital Input Module

FAQ

Q1: What is the input type supported by the SDV144-S63/PRP?
A1: The module supports no-voltage contact inputs with ON ≤1 kΩ and OFF ≥100 kΩ.

Q2: How many channels does the SDV144-S63/PRP have?
A2: It provides 16 input channels with module isolation.

Q3: What is the power supply requirement?
A3: It requires an external 24 VDC power supply with +20%/-10% tolerance and at least 200 mA capacity.

Q4: What is the input response time?
A4: The maximum input response time is 40 milliseconds.

Q5: Does the SDV144-S63/PRP have surge protection?
A5: It can be ordered with optional surge absorber-equipped terminal blocks if required.

Q6: What are the module’s dimensions and weight?
A6: The dimensions are 130 x 32.8 x 107.5 mm, and the weight is approximately 0.41 kg.

Q7: Is it possible to use the module in a dual-redundant configuration?
A7: Yes, the SDV144 series supports dual-redundant configurations.

Q8: What types of external connections are supported?
A8: The module supports pressure clamp terminal blocks, MIL cables, or AKB331 dedicated signal cables.

Digital Input Module SDV144 SDV144-S63/PRP Yokogawa
