Technical Specifications
| Item | Specification |
|---|---|

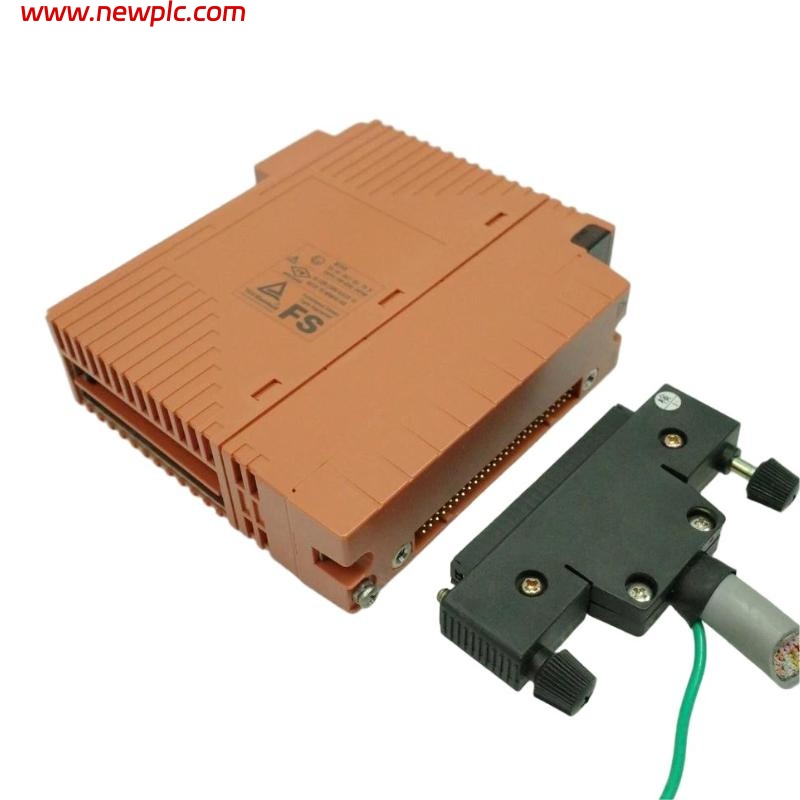

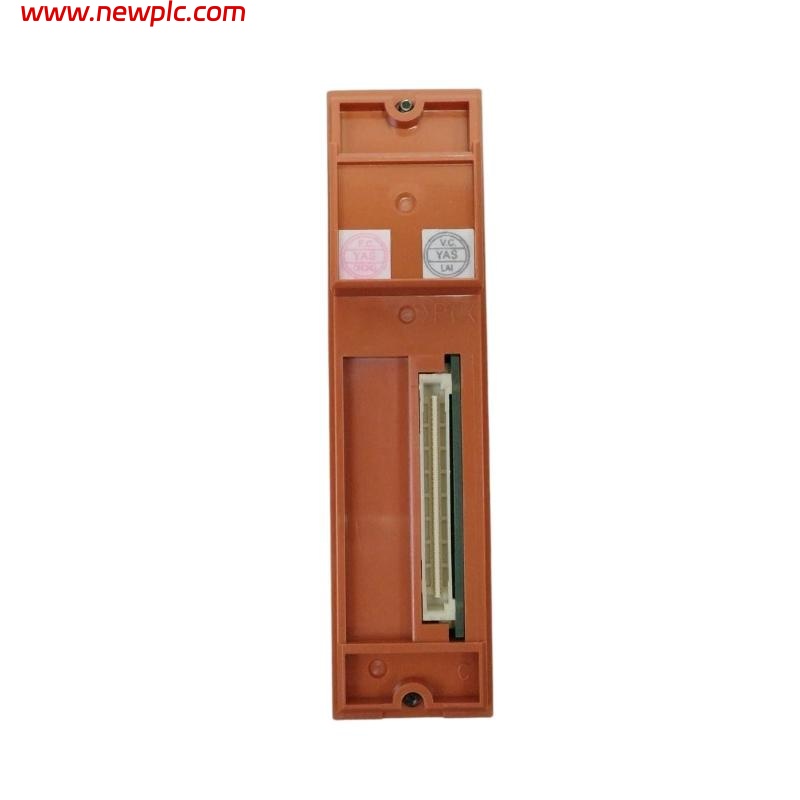

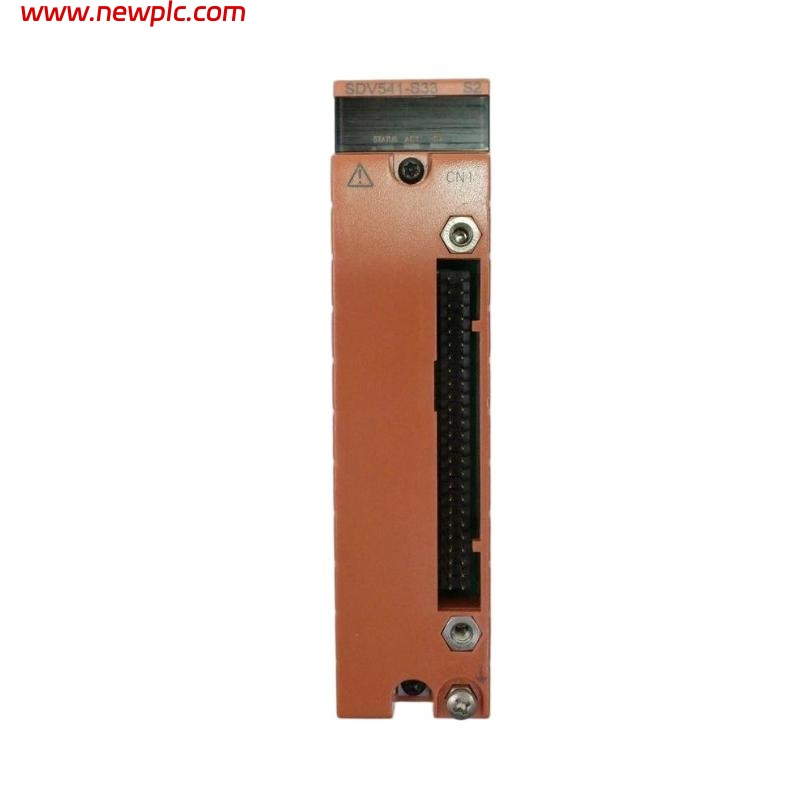

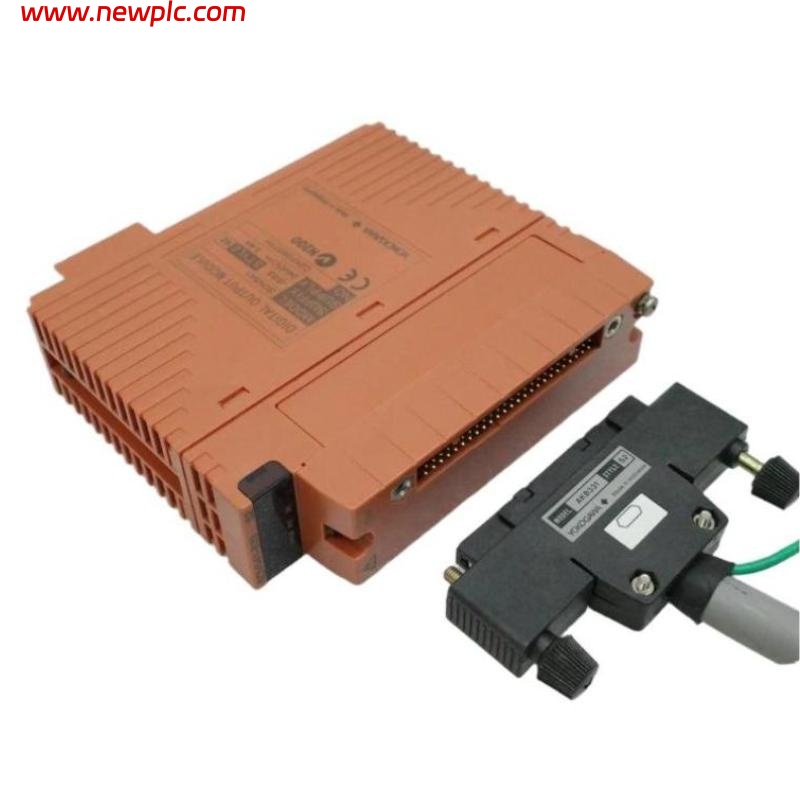

| Product Model | Yokogawa SDV541-S33 S2 Digital Output Modules |
| Module Type | Digital Output Module |
| System Platform | Designed for Yokogawa S2 series process control systems |
| Output Channels | 4 digital output channels |
| Output Type | Open collector (OC) or relay output, depending on configuration |
| Output Voltage | 24 VDC |
| Max Load Current | 0.5 A per channel |
| Response Time | < 10 ms |
| Redundancy | Supports module redundancy (depending on system configuration) |
| Power Requirement | 24 VDC (typical) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions | 130 x 107.5 x 32.8 mm |
| Weight | 0.29 kg |
FAQ
FAQ
Q1: What is the main application of this module?
A1: It is mainly used in S2 series process control systems to control field devices such as valves and relays.
Q2: How many output channels does it support?
A2: Provides 4 digital output channels.
Q3: What types of output are available?
A3: Open collector (OC) or relay output depending on module configuration.
Q4: What is the maximum output current?
A4: Maximum 0.5 A per channel.
Q5: What is the power requirement?
A5: Typical operating voltage is 24 VDC.
Q6: What is the operating temperature range?
A6: 0 °C to +55 °C.
Q7: What are the dimensions and weight?
A7: Dimensions are 130 x 107.5 x 32.8 mm, and weight is 0.29 kg.
Q8: What should be noted during installation?
A8: Use original DIN rail or rack for mounting and ensure secure wiring to prevent short circuits.
