Technical Specifications
| Parameter | Specification |
|---|---|

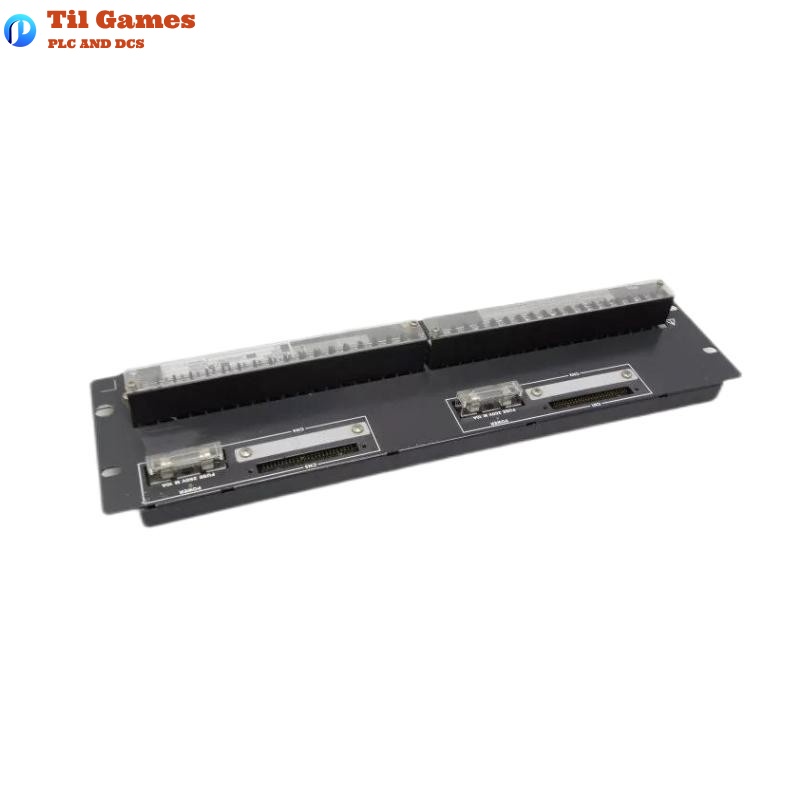

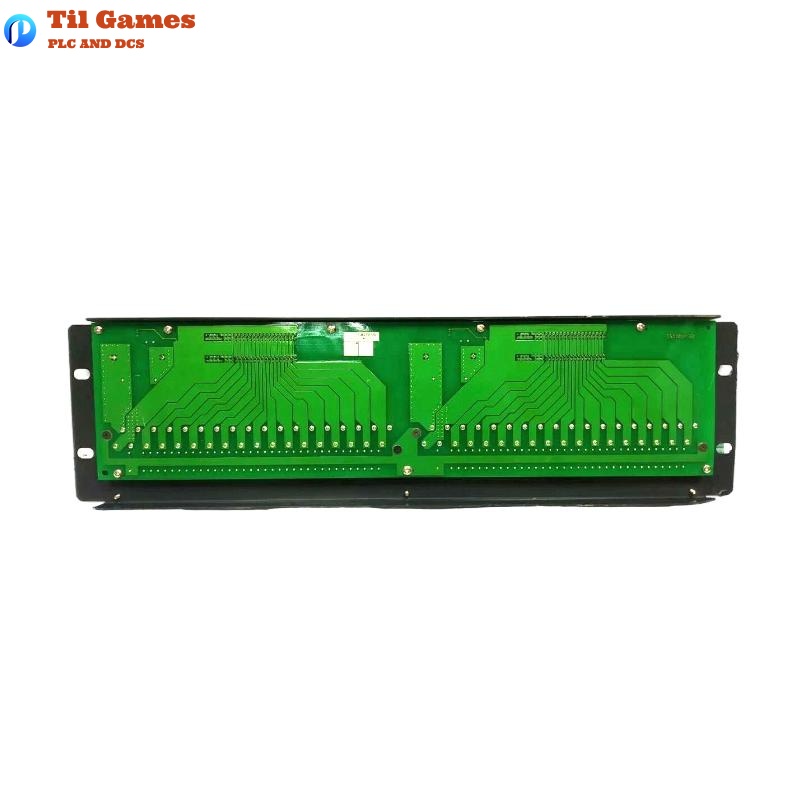

| Model | SED4D-01 |
| Type | Digital Terminal Board |
| Mounting Type | 19-inch Rack Mountable |
| Signal Type | Digital (Single/Dual-Redundant Configuration) |
| Number of Channels | 16 channels × 2 |
| Terminal Type | M4 Screw Terminals |
| Safety Integrity Level (SIL) | SIL3 |
| Compatible I/O Modules | SDV144, SDV531-S, SDV531-L, SDV541 |
| Connection Cable | AKB331 |
| Withstand Voltage | 500 V AC (for 1 minute) |
| Insulation Resistance | 100 MΩ minimum (500 V DC) |
| Dimensions (W × H × D) | 482.6 × 132.5 × 85 mm |
| Weight | 1.5 kg |
FAQ
FAQ
Q1: How many channels does the SED4D-01 support?
A1: It supports 16 channels × 2 for digital signal connections.
Q2: What is the SIL rating of the SED4D-01?
A2: The SED4D-01 complies with SIL3 Safety Integrity Level.
Q3: What is the mounting method of the SED4D-01?
A3: It is a 19-inch rack-mountable terminal board.
Q4: Which I/O modules are compatible with the SED4D-01?
A4: Compatible modules include SDV144, SDV531-S, SDV531-L, and SDV541.
Q5: What type of terminal is used?
A5: It uses M4 screw-type terminals.
Q6: What are the insulation resistance and withstand voltage?
A6: It provides 100 MΩ minimum insulation (500V DC) and 500V AC withstand voltage for 1 minute.
Q7: Does it support dual-redundant configuration?
A7: Yes, it supports both single and dual-redundant configurations.
Q8: What are the dimensions and weight of the product?
A8: The dimensions are 482.6 × 132.5 × 85 mm, and the weight is 1.5 kg.
