Technical Specifications
| Parameter | Specification |
|---|---|

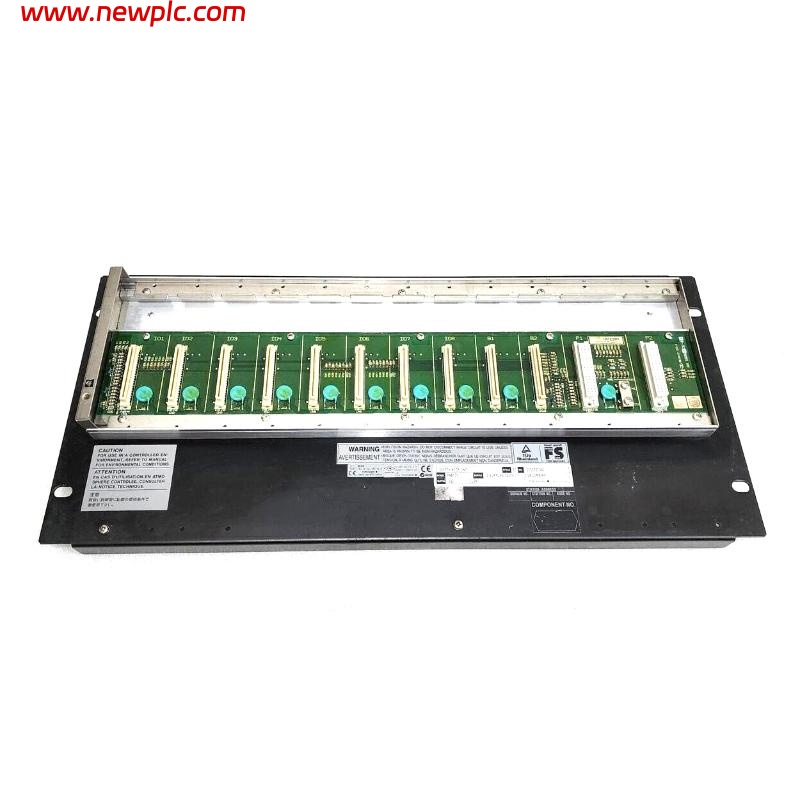

| Model | SNB10D-215/CU2T Safety Node Unit (Rack Mountable Type) |
| Mounting | Rack mountable with four M5 screws; insulation bushes included |
| Power Supply | Dual-redundant power supply modules |
| Interface | Two ESB bus interface modules (SSB401) |
| Connectivity | Up to 13 units with SEC402 ESB bus coupler, up to 9 units with SEC401 module |
| Environmental Conditions | Temperature: -20 to 70°C, ISA Standard G3, No explosion protection |
| Dimensions (WxHxD) | 482.6 × 221.5 × 205 mm |
| Weight | 5.9 kg |
| Option Code | /CU2T: Connector Unit with Terminator for ESB Bus |
FAQ
FAQ
-
Q1: What is the maximum number of SNB10D units that can be connected on a single ESB bus?
A: Up to 13 units can be connected with an SEC402 ESB bus coupler, or up to 9 units with an SEC401 module. -
Q2: What type of power supply redundancy does the SNB10D-215/CU2T provide?
A: The unit is equipped with dual-redundant power supply modules to ensure continuous operation in case of a module failure. -
Q3: What type of mounting is required for the SNB10D unit?
A: The unit is rack mountable using four M5 screws with insulation bushes provided for secure installation. -
Q4: What environmental conditions can the SNB10D safely operate under?
A: The unit operates within a temperature range of -20 to 70°C and conforms to ISA Standard G3. -
Q5: Which interface modules are used in the SNB10D for communication?
A: Two ESB bus interface modules (SSB401) are included to facilitate reliable communication. -
Q6: What are the exact dimensions and weight of the SNB10D unit?
A: The unit measures 482.6 × 221.5 × 205 mm and weighs 5.9 kg. -
Q7: Does the SNB10D support direct connection of I/O modules?
A: Yes, it provides slots for power supply and I/O modules, following specific mounting restrictions. -
Q8: What is the purpose of the /CU2T option code?
A: It provides a connector unit with a terminator for the ESB Bus to ensure proper signal integrity.
