Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SNB10D-415/CU2T |

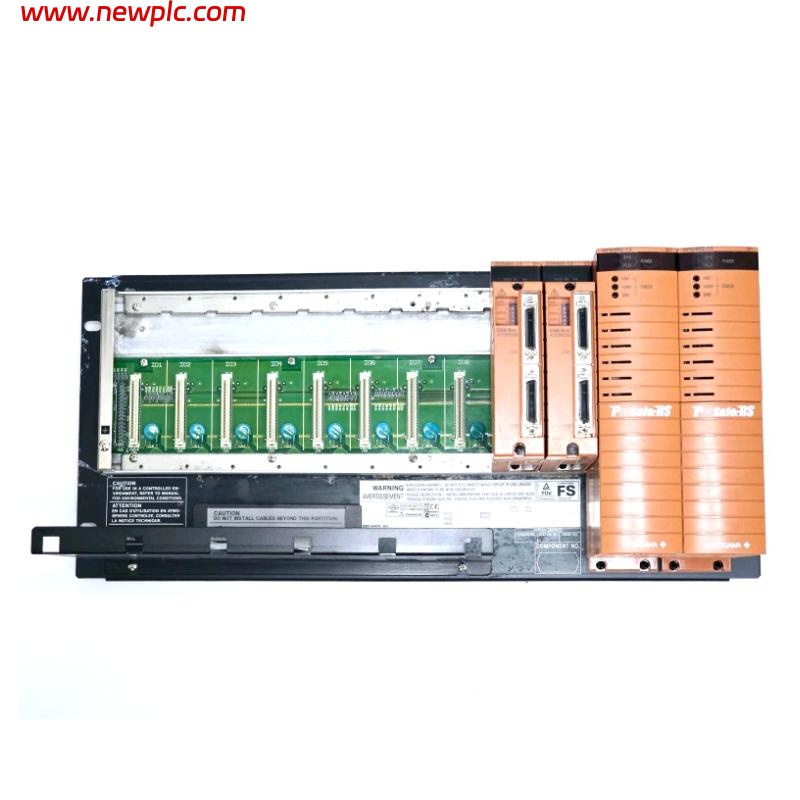

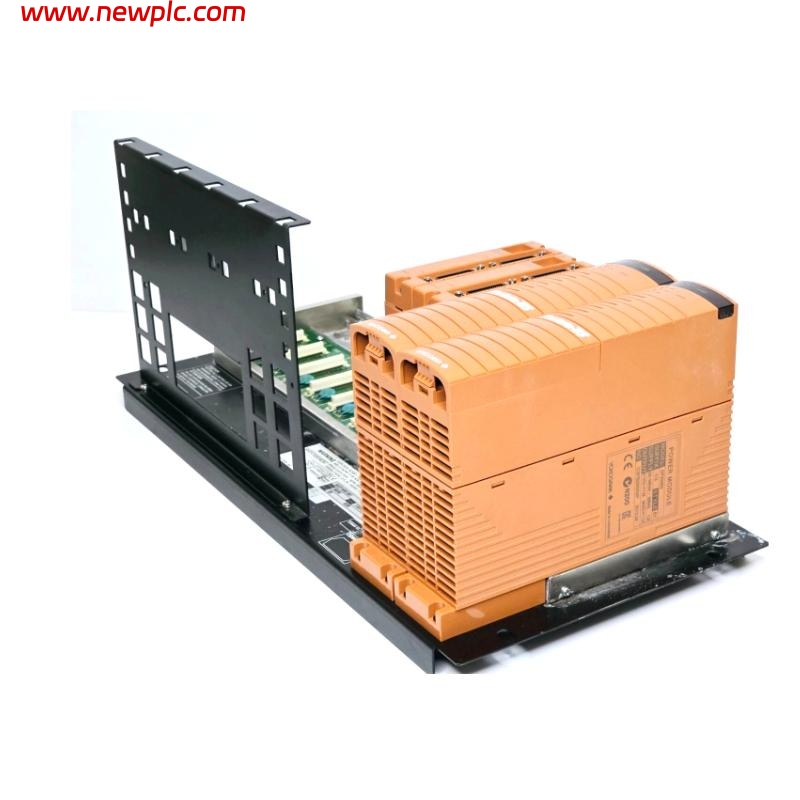

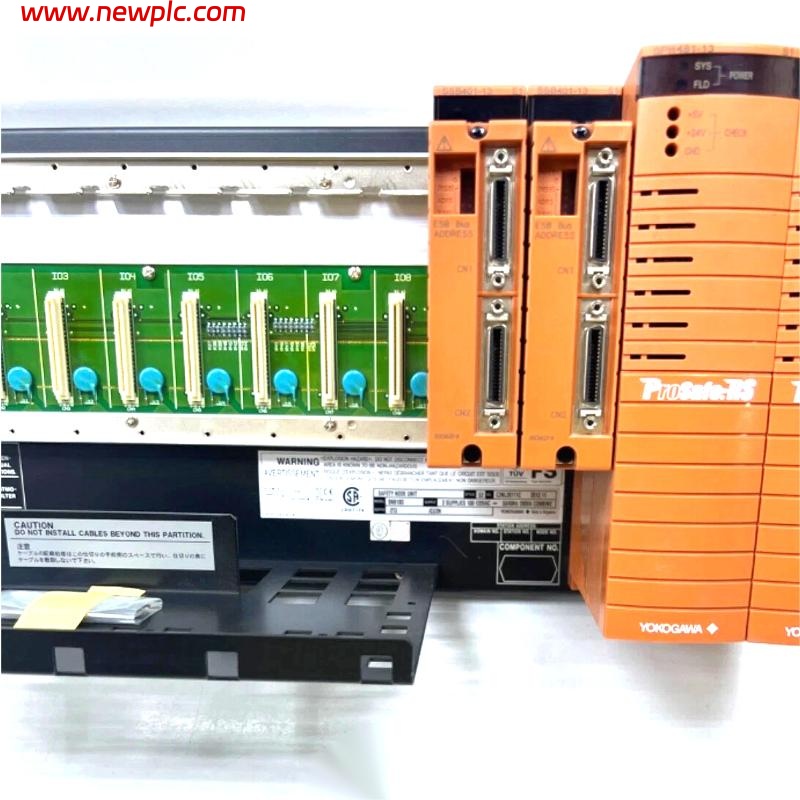

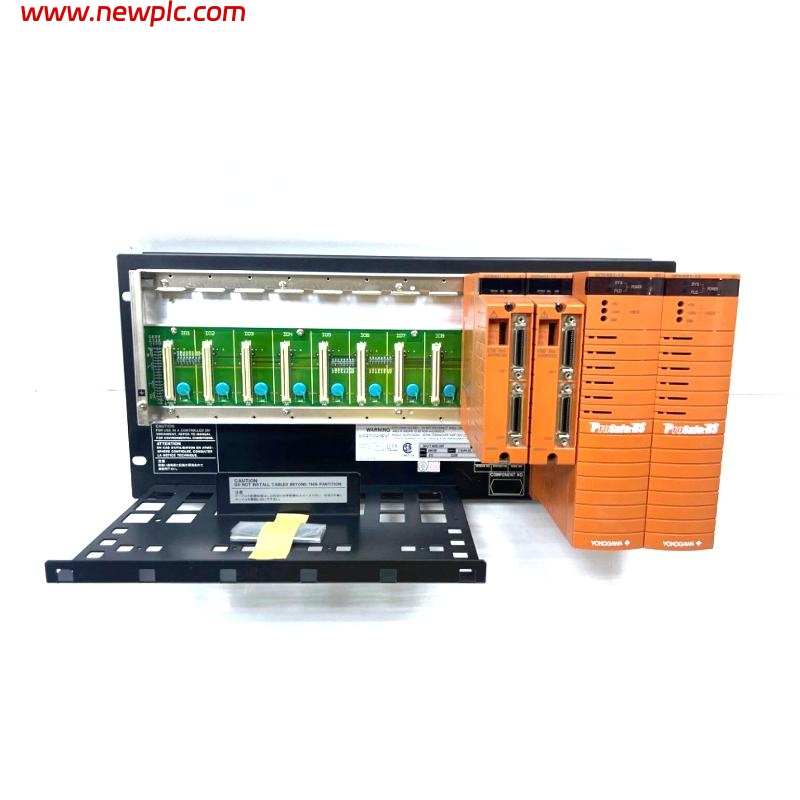

| Type | Rack Mountable Safety Node Unit |
| Power Supply | 100–120 V AC, 50/60 Hz 220–240 V AC, 50/60 Hz 24 V DC |
| Power Consumption | 100–120 V AC: 200 VA 220–240 V AC: 230 VA 24 V DC: 5.5 A |
| Weight | 5.9 kg |
| Dimensions (W × H × D) | 482.6 × 221.5 × 205 mm |
| Mounting | 19-inch rack mountable, 4 M5 screws with insulation bushes |
| Connectable Safety Node Units | Up to 13 units with SEC402 ESB bus coupler Up to 9 units with SEC401 ESB bus coupler |
| Module Configuration | Dual-redundant power supply modules Two ESB bus interface modules (SSB401) Optional optical ESB bus repeater modules |
| Standards Compliance | ProSafe-RS |
FAQ
FAQ
-
Q1: What is the maximum number of I/O modules that can be connected to the SNB10D-415/CU2T?
A1: The unit supports multiple I/O modules depending on the ESB bus coupler used: up to 13 units with SEC402 and up to 9 units with SEC401. -
Q2: Can the SNB10D-415/CU2T operate with both AC and DC power supplies?
A2: Yes, it supports 100–120 V AC, 220–240 V AC, and 24 V DC power supplies. -
Q3: What type of ESB bus interface modules are compatible with this unit?
A3: The unit uses SSB401 ESB bus interface modules, with optional optical ESB bus repeater modules. -
Q4: Is the SNB10D-415/CU2T compliant with safety standards?
A4: Yes, it conforms to ProSafe-RS safety instrumented system standards. -
Q5: What is the mounting requirement for this unit?
A5: It is designed for 19-inch rack mounting using four M5 screws with insulation bushes. -
Q6: What is the typical power consumption of the unit?
A6: Power consumption varies with supply: 200 VA for 100–120 V AC, 230 VA for 220–240 V AC, and 5.5 A for 24 V DC. -
Q7: Can this unit support dual-redundant power supply configuration?
A7: Yes, it includes dual-redundant power supply modules for high reliability. -
Q8: What are the physical dimensions and weight of the SNB10D-415/CU2T?
A8: The unit measures 482.6 × 221.5 × 205 mm and weighs 5.9 kg.
