Technical Specifications
| Parameter | Specification |
|---|---|

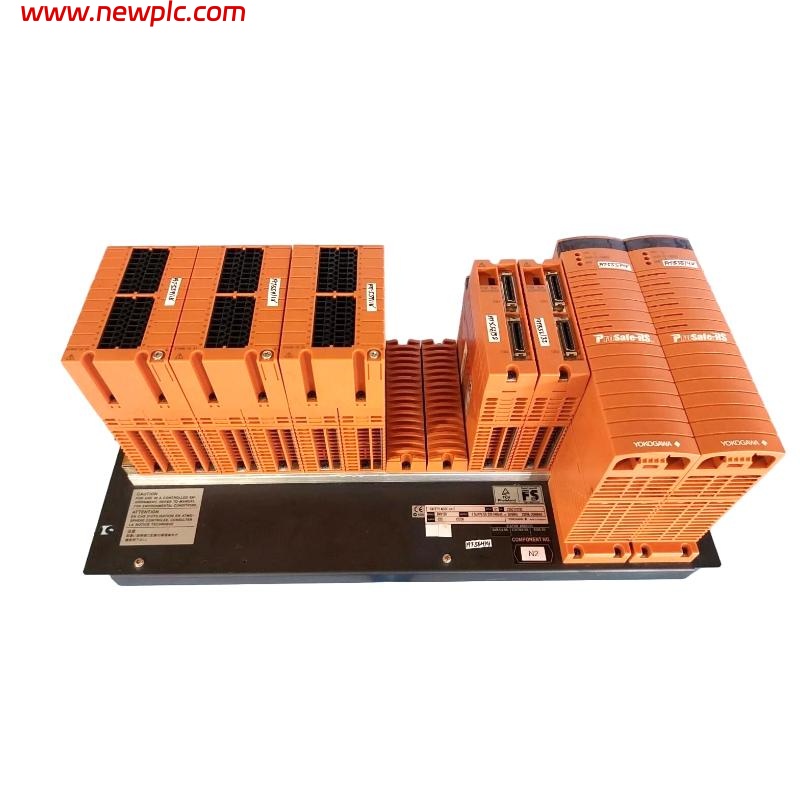

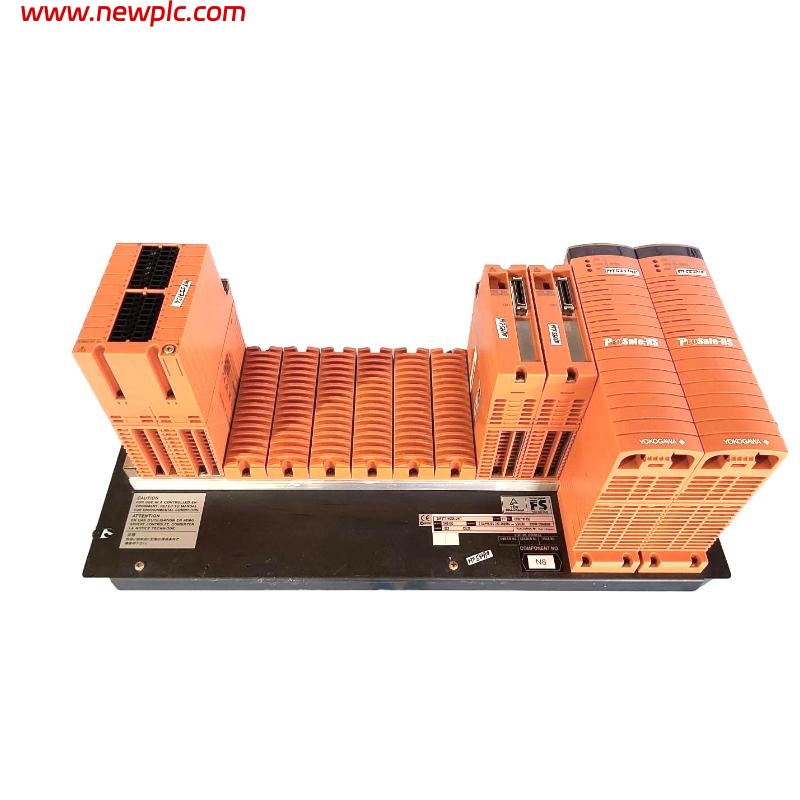

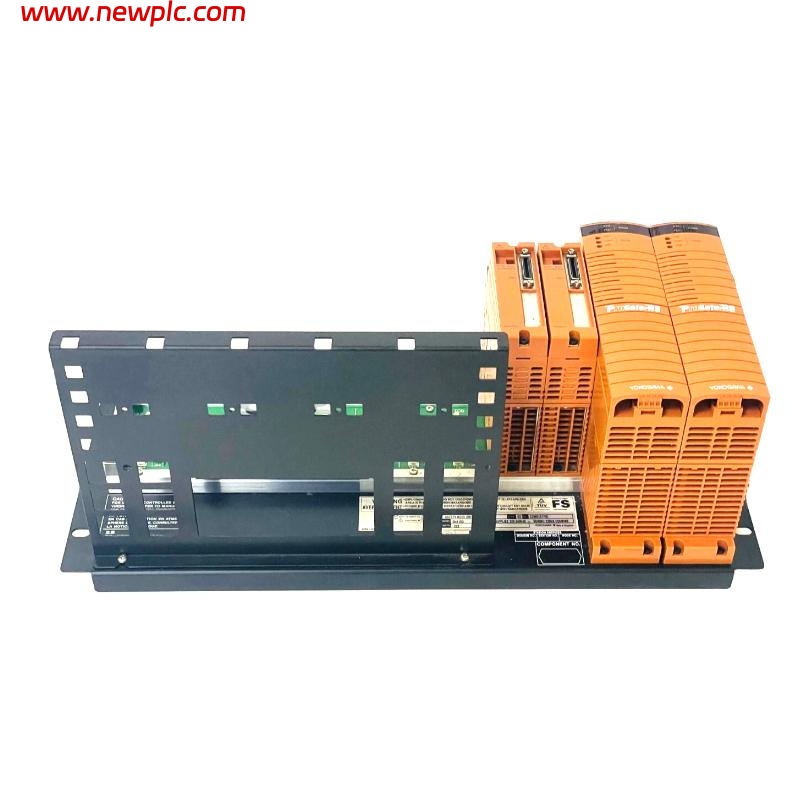

| Product Name | Yokogawa SNB10D-425/CU2T Safety Node Unit (Rack Mountable Type) |
| Power Supply | 100–120 V AC, 50/60 Hz; 220–240 V AC, 50/60 Hz; 24 V DC |
| Power Consumption | 100–120 V AC: 200 VA; 220–240 V AC: 230 VA; 24 V DC: 5.5 A |
| Weight | 5.9 kg |
| Dimensions (H x W x D) | 482.6 × 221.5 × 205 mm |
| Mounting | Rack-mountable with four M5 screws and insulation bushes |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| System Integration | Up to 13 units with SEC402 ESB bus coupler; up to 9 units with SEC401 ESB bus coupler |
| Module Configuration | Dual-redundant power supply, two ESB bus interface modules (SSB401), optical ESB bus repeater modules, up to 8 I/O modules |
| Compliance | ProSafe-RS standard compliance |
FAQ
FAQ
-
Q1: What type of bus interface does the SNB10D-425/CU2T use?
A1: It uses dual ESB bus interface modules (SSB401) for communication with the safety control system. -
Q2: How many I/O modules can be connected to a single unit?
A2: Up to 8 I/O modules can be connected per Safety Node Unit. -
Q3: Can multiple SNB10D-425/CU2T units be integrated in a single rack?
A3: Yes, up to 13 units with SEC402 ESB bus coupler or up to 9 units with SEC401 ESB bus coupler. -
Q4: What are the operating temperature limits for the unit?
A4: The unit operates reliably between -10°C and +55°C. -
Q5: What power supply redundancy does the unit support?
A5: It supports a dual-redundant power supply configuration to ensure continuous operation. -
Q6: What are the physical dimensions and weight of the SNB10D-425/CU2T?
A6: Height 482.6 mm × Width 221.5 mm × Depth 205 mm; weight 5.9 kg. -
Q7: What type of mounting is required for this Safety Node Unit?
A7: Rack-mountable using four M5 screws with insulation bushes. -
Q8: How does the unit handle high humidity or environmental variations?
A8: It operates in 5% to 95% relative humidity (non-condensing) and maintains stable performance within its temperature range.
