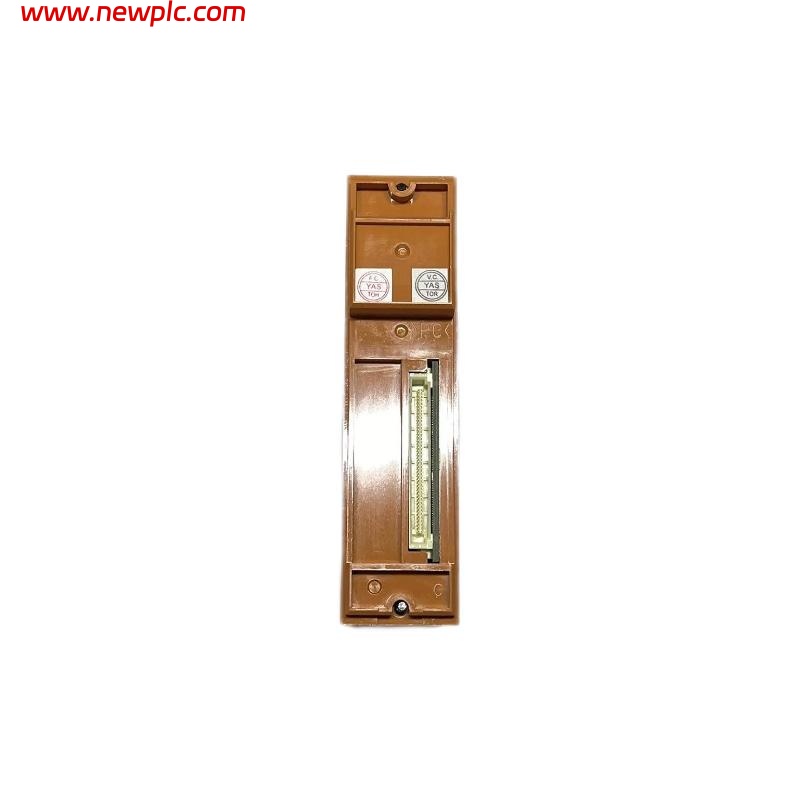

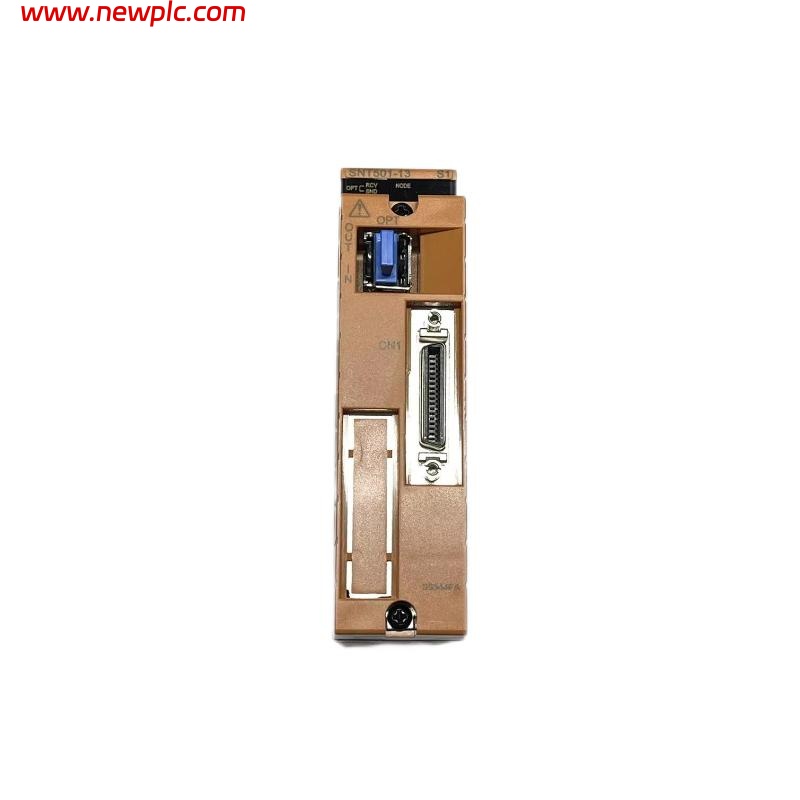

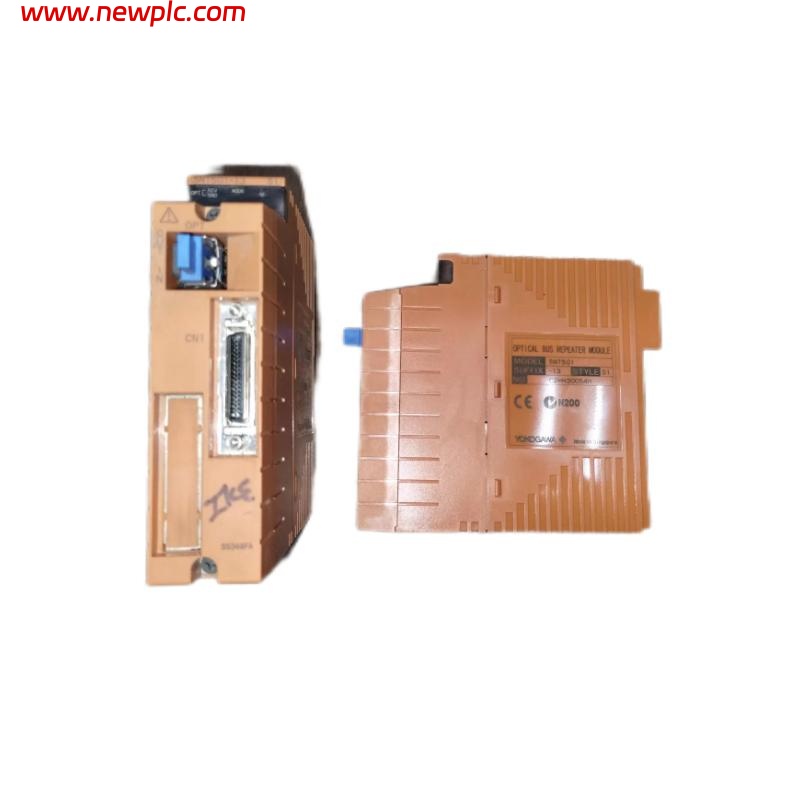

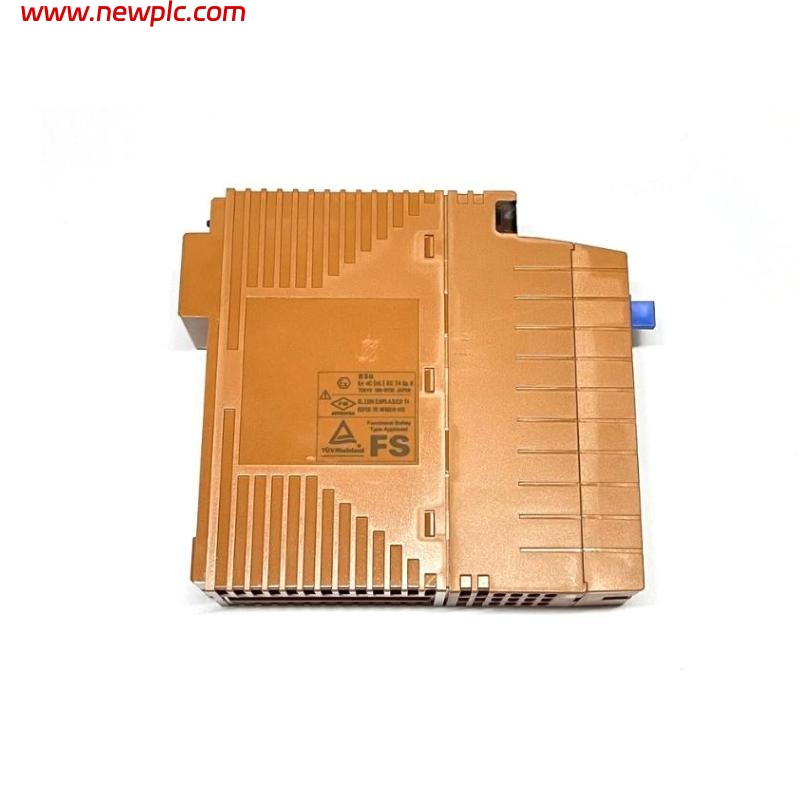

Yokogawa SNT501-13 Optical ESB Bus Repeater Module

FAQ

Q1: What is the main function of the Yokogawa SNT501 module?
A1: The SNT501 is an Optical ESB Bus Repeater Slave Module, which converts optical signals back to ESB Bus electrical signals to extend bus communication distances.

Q2: What is the maximum transmission distance supported?
A2: The maximum total distance is 5 km (or up to 10 km in Vnet/IP systems R1.03 or later).

Q3: How many stages of repeaters can be connected?
A3: A maximum of two stages of repeaters can be connected.

Q4: Does the SNT501 support both star and chain connection types?
A4: Yes, the SNT501 supports both star-type and chain-type connection configurations.

Q5: What is the current consumption of the SNT501?
A5: The SNT501 consumes approximately 0.5 A.

Q6: How heavy is the SNT501 module?
A6: The module weighs approximately 0.3 kg.

Q7: What are the dimensions of the SNT501?
A7: The SNT501 measures 142.5 mm × 130 mm × 32.8 mm.

Q8: What master modules are compatible with the SNT501?
A8: The SNT501 can be paired with the SNT401 Optical ESB Bus Repeater Master Module or the S2EN501 N-ESB Bus Module.

Optical ESB Bus Repeater Module SNT501 SNT501-13 Yokogawa
