Technical Specifications
| Parameter | Specification |
|---|---|

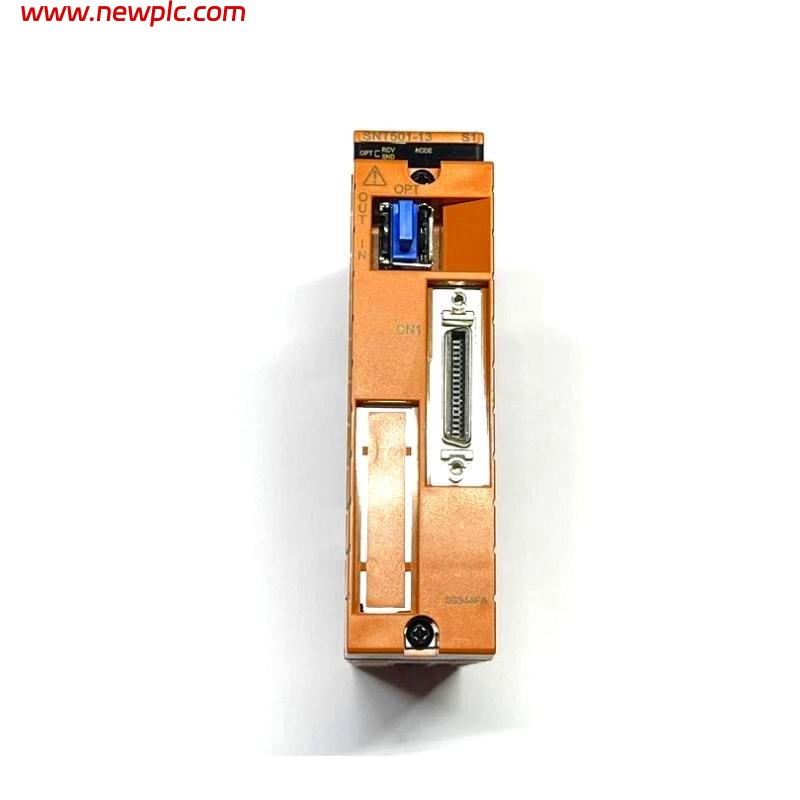

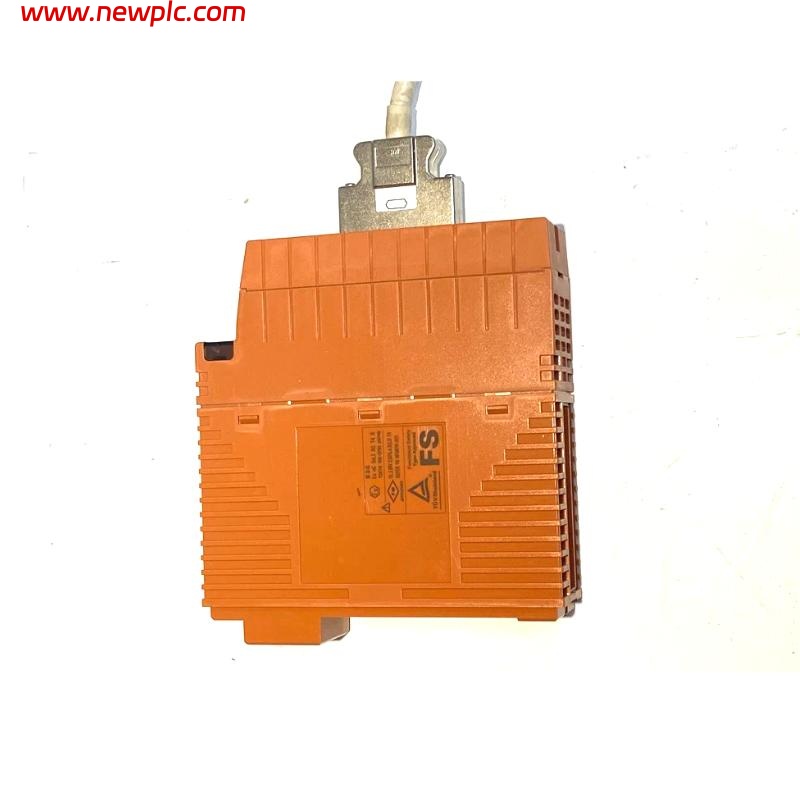

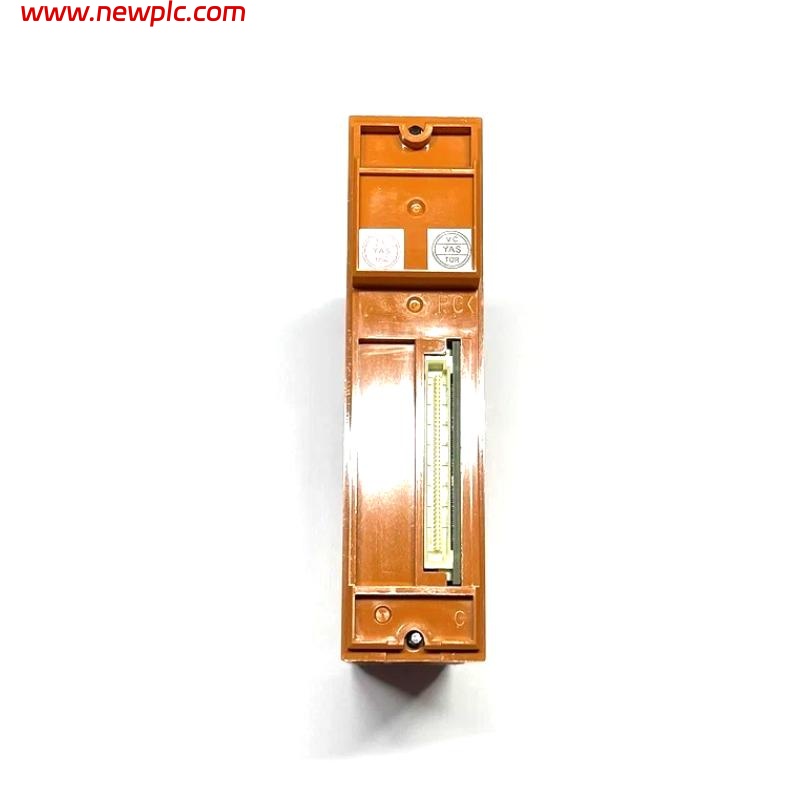

| Model | Yokogawa SNT501 Optical ESB Bus Repeater Slave Module |
| Function | Converts ESB Bus signals to optical signals for extended transmission |
| Connection Method | Star type / Chain type |
| Maximum Connection Stages | 2 |
| Transmission Distance | 5 km (10 km with Vnet/IP R1.03 or later) |
| Current Consumption | 0.5 A |
| Dimensions | 142.5 x 130 x 32.8 mm |
| Weight | Approx. 0.3 kg |
| Operating Temperature | -20°C to +70°C |
| Compatible Modules | SNT401, S2EN501 |
| Standards Compliance | ISA Standard G3 |
FAQ
FAQ
Q1: What is the primary function of the SNT501 module?
A1: It converts ESB Bus electrical signals to optical signals to extend transmission distance via fiber optic cables.
Q2: What connection topologies does the SNT501 support?
A2: It supports both star and chain type connection topologies.
Q3: What is the maximum transmission distance supported?
A3: The standard maximum is 5 km over two stages, extendable to 10 km when used with Vnet/IP R1.03 or later systems.
Q4: What are the physical dimensions and weight of the module?
A4: The module measures 142.5 x 130 x 32.8 mm and weighs approximately 0.3 kg.
Q5: What is the power consumption of the SNT501?
A5: It consumes 0.5 A of current during operation.
Q6: What temperature range can the module operate in?
A6: It operates in temperatures ranging from -20°C to +70°C.
Q7: Which modules is the SNT501 compatible with?
A7: It’s designed to work with SNT401 Master Modules and S2EN501 modules.
Q8: What standards does the module comply with?
A8: It complies with ISA Standard G3 for industrial environments.
