Technical Specifications
| Parameter | Value |
|---|---|

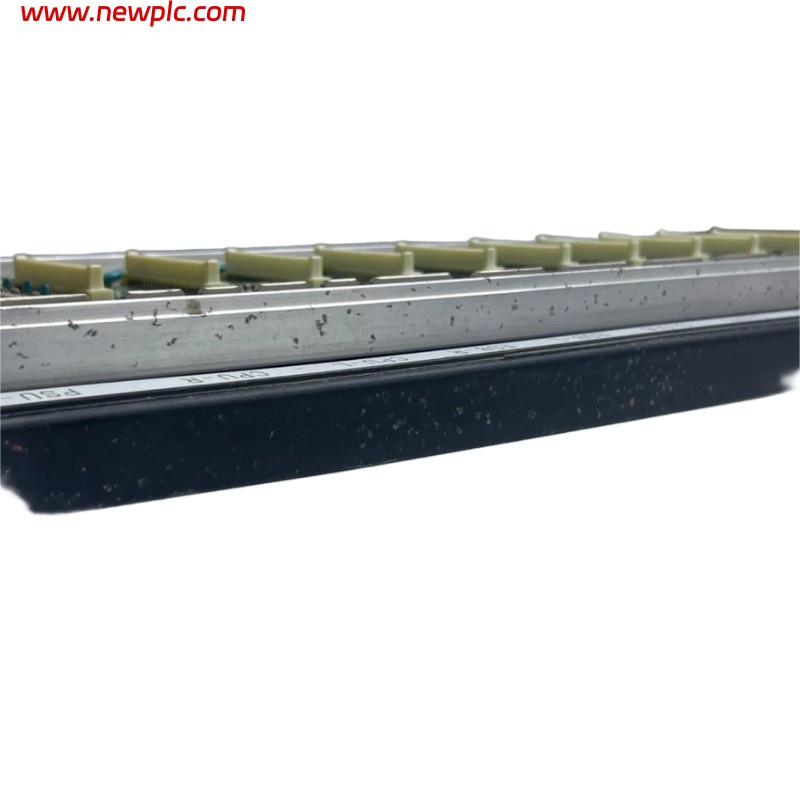

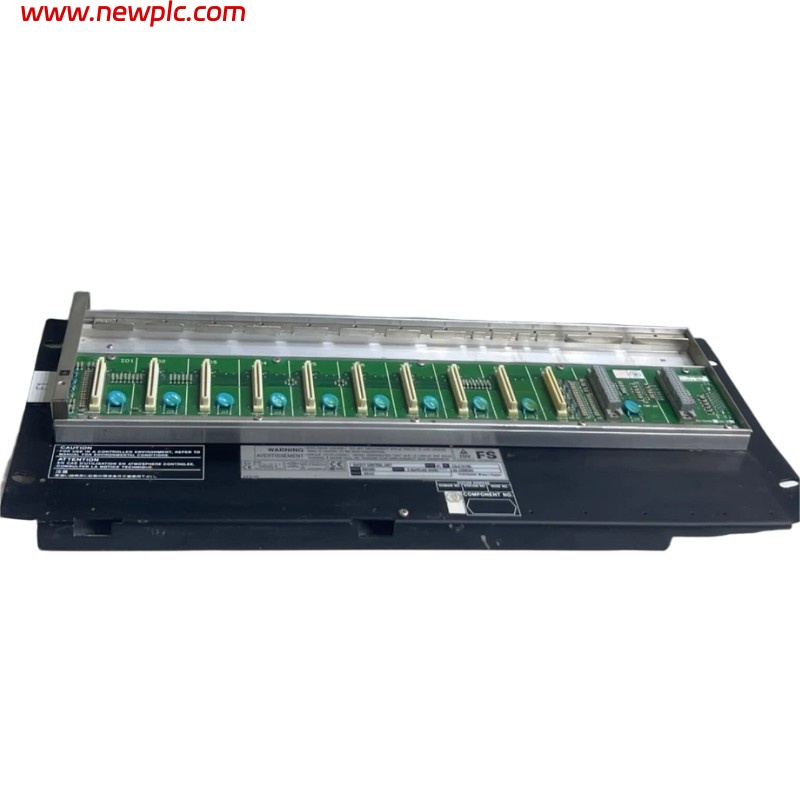

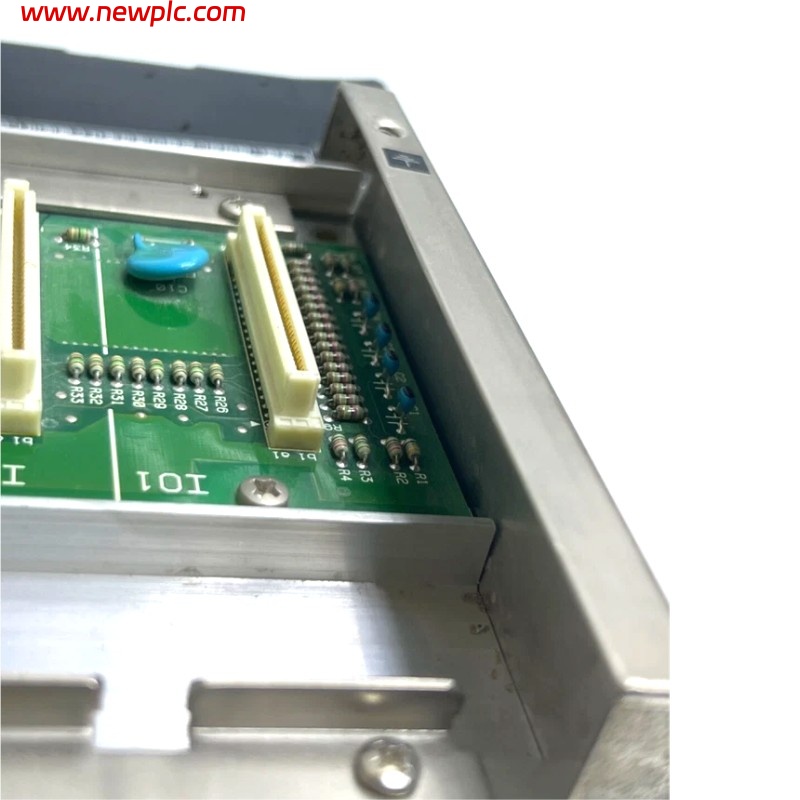

| Model | Yokogawa SSC50D-S2524 Duplex Safety Control Unit |
| Function Type | Duplex Safety Control Unit |
| Power Supply | 24 VDC (typical) |
| Power Consumption | 50 W (max) |
| Operating Temperature | 0 – 55 ℃ |
| Storage Temperature | -20 – 70 ℃ |
| Relative Humidity | 10% – 90% (non-condensing) |
| Dimensions (mm) | 482.6 x 266 x 88.1 mm |
| Weight (kg) | 8.5 kg |
| Mounting Method | Rack mount / Modular slot |
| Interface Type | Redundant Ethernet / System bus |
| Certification | IEC 61508 / SIL3 compliant |
FAQ
FAQ
Q1: Does the SSC50D-S2524 support duplex operation?
A1: Yes, it supports duplex architecture to ensure continuous operation if one side fails.
Q2: What is the typical supply voltage of the unit?
A2: The recommended supply voltage is 24 VDC.
Q3: What is the operating temperature range?
A3: The operating temperature is 0 – 55 ℃, suitable for most industrial environments.
Q4: Which safety standards does this unit comply with?
A4: It is compliant with IEC 61508 and certified for SIL3 safety level.
Q5: Is rack mounting mandatory for installation?
A5: Rack mounting is recommended, but modular slot installation is also supported.
Q6: Does the interface support redundant Ethernet?
A6: Yes, it supports redundant Ethernet connections for reliable data communication.
Q7: Is the weight suitable for single-person installation?
A7: The unit weighs 8.5 kg.
Q8: Is the power consumption suitable for continuous operation?
A8: With a maximum of 50 W, the design supports stable long-term operation.
