Technical Specifications
| Parameter | Specification |
|---|---|
| Model | YS1700-001/S01 |

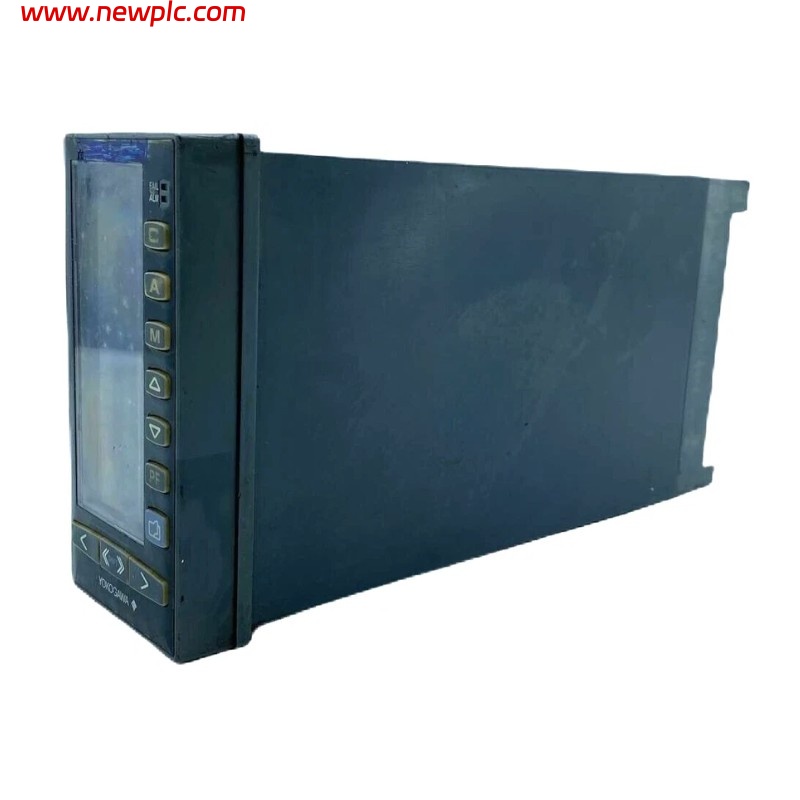

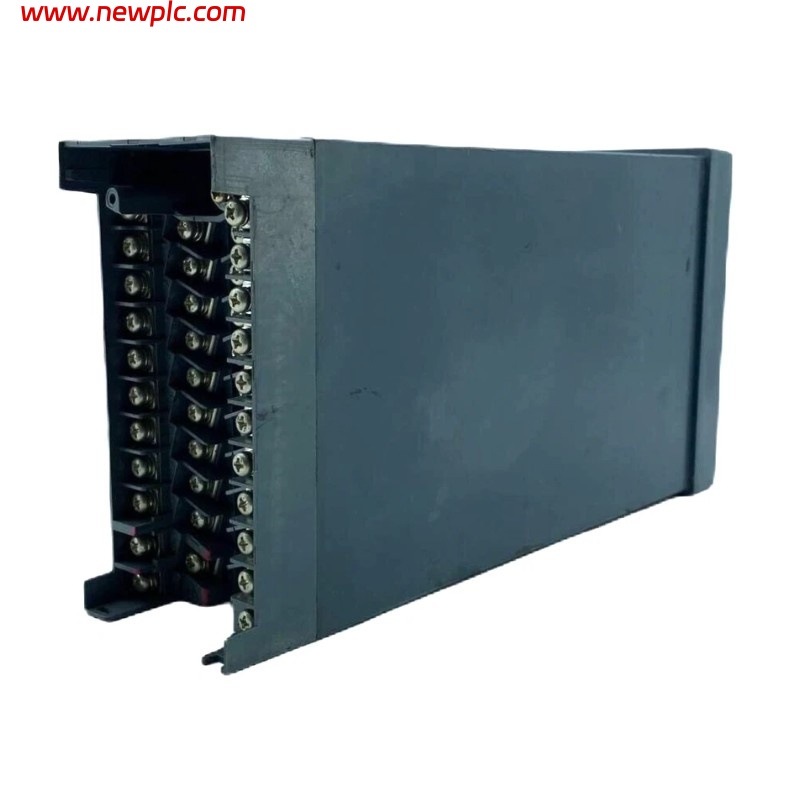

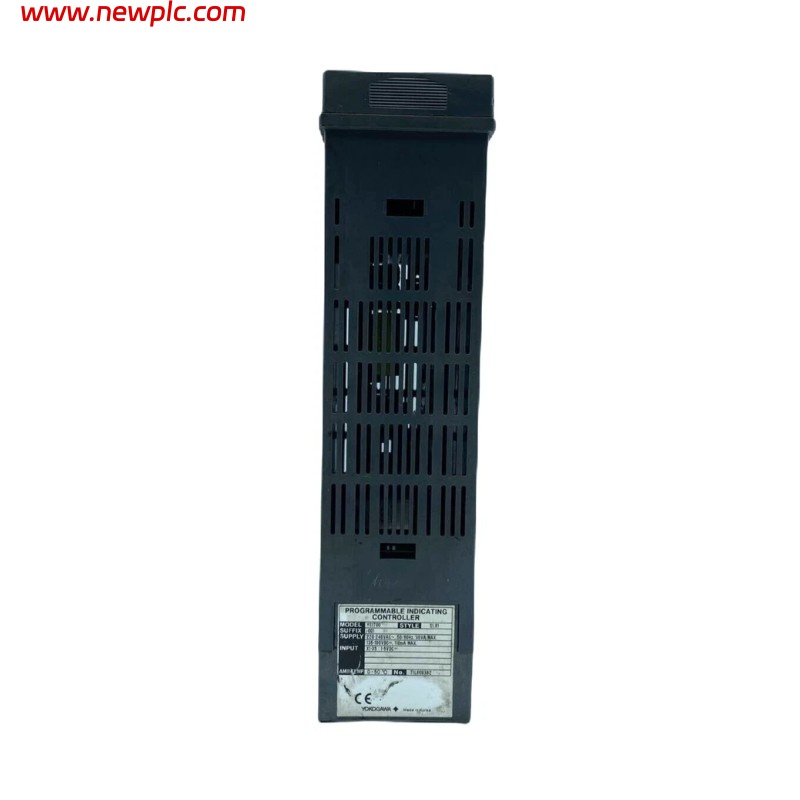

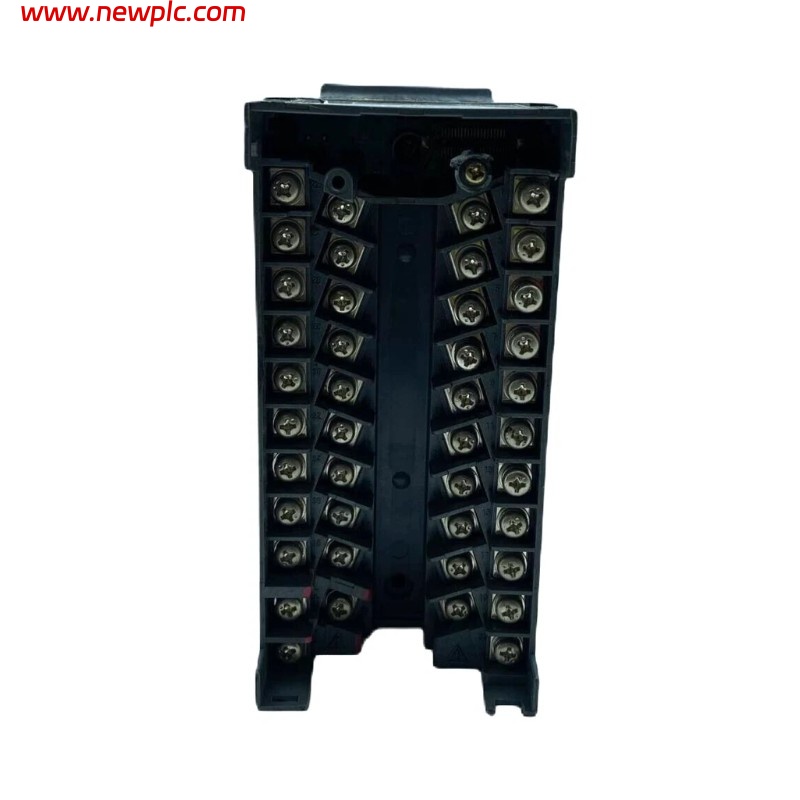

| Type | Programmable Indicating Controller |
| Input | Thermocouple, RTD, DC Voltage, DC Current |
| Output | Relay, SSR, DC Current |
| Control | PID, Manual, Auto-tuning |
| Display | 4-digit LED / LCD |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Accuracy | ±0.2% of span |
| Sampling Rate | 0.5 sec |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity | 35–85% RH (non-condensing) |
| Dimensions | 144 × 72 × 250 mm |
| Weight | 1.6 kg |
| Communication | Optional RS-485 Modbus |
FAQ
FAQ
-
Q1: What types of sensors can the YS1700-001/S01 accept?
A1: It can accept thermocouples, RTDs, DC voltage, and DC current inputs. -
Q2: Does the controller support PID control?
A2: Yes, it supports full PID control with auto-tuning capability. -
Q3: What outputs are available for controlling external devices?
A3: Relay output, SSR drive, and DC current output are available. -
Q4: Can the controller communicate with other systems?
A4: Yes, it has optional RS-485 Modbus communication. -
Q5: What is the display type on this controller?
A5: It has a 4-digit LED display or LCD depending on the model configuration. -
Q6: What is the power supply range for this device?
A6: It operates on 100–240 V AC, 50/60 Hz. -
Q7: What is the operating temperature range?
A7: The controller operates safely from 0 to 50°C. -
Q8: How precise is the controller’s measurement?
A8: The measurement accuracy is ±0.2% of the input span.
