Technical Specifications
| Parameter | Description |
|---|---|

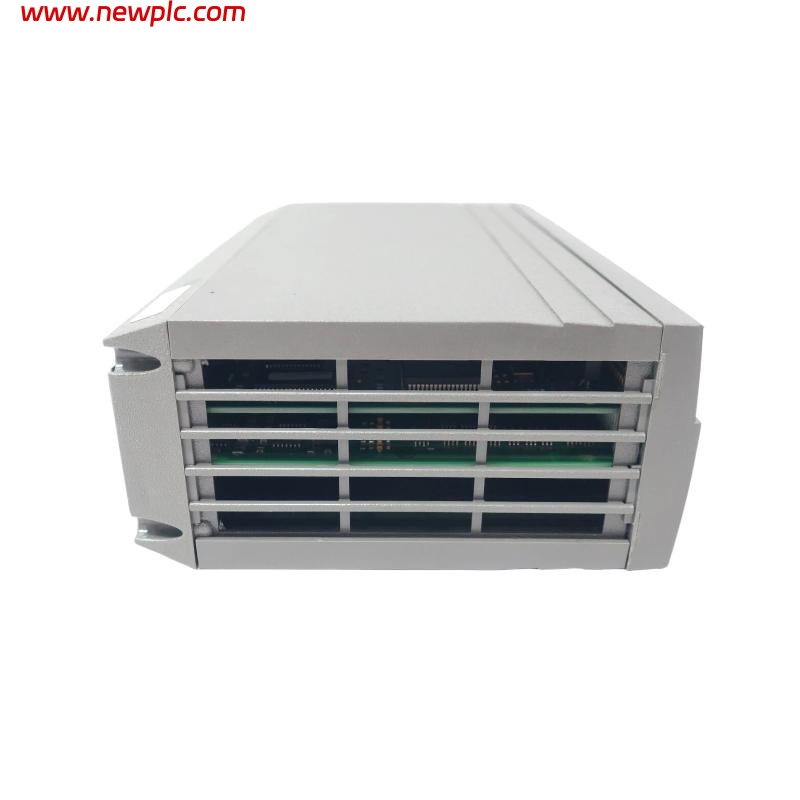

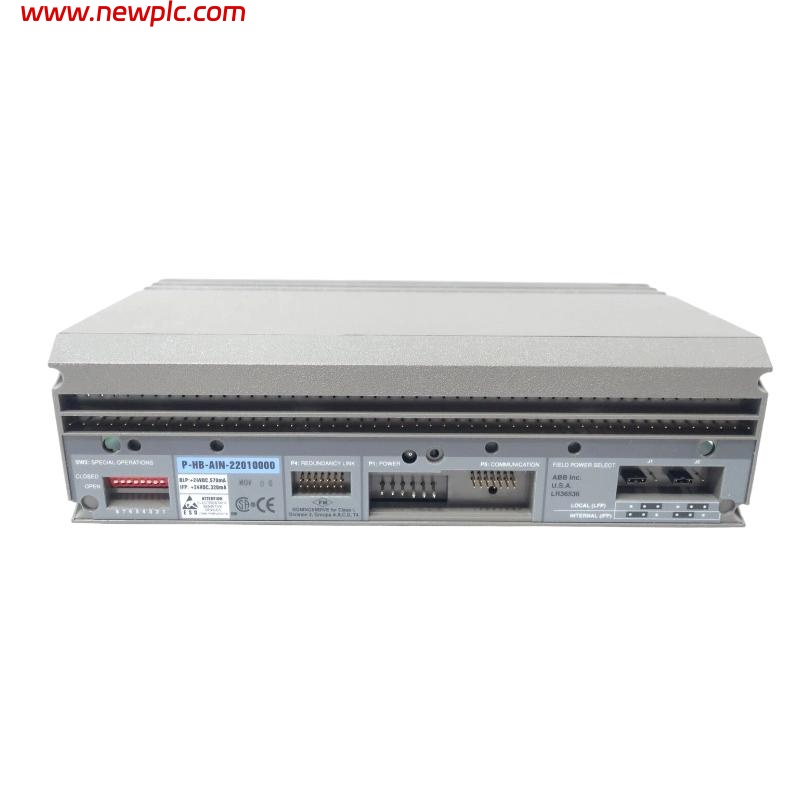

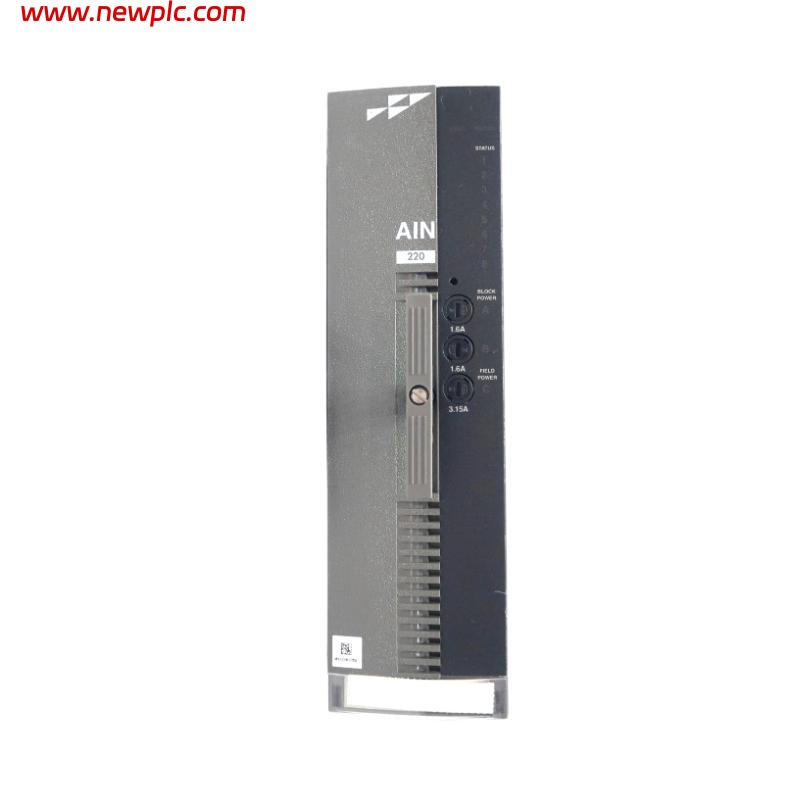

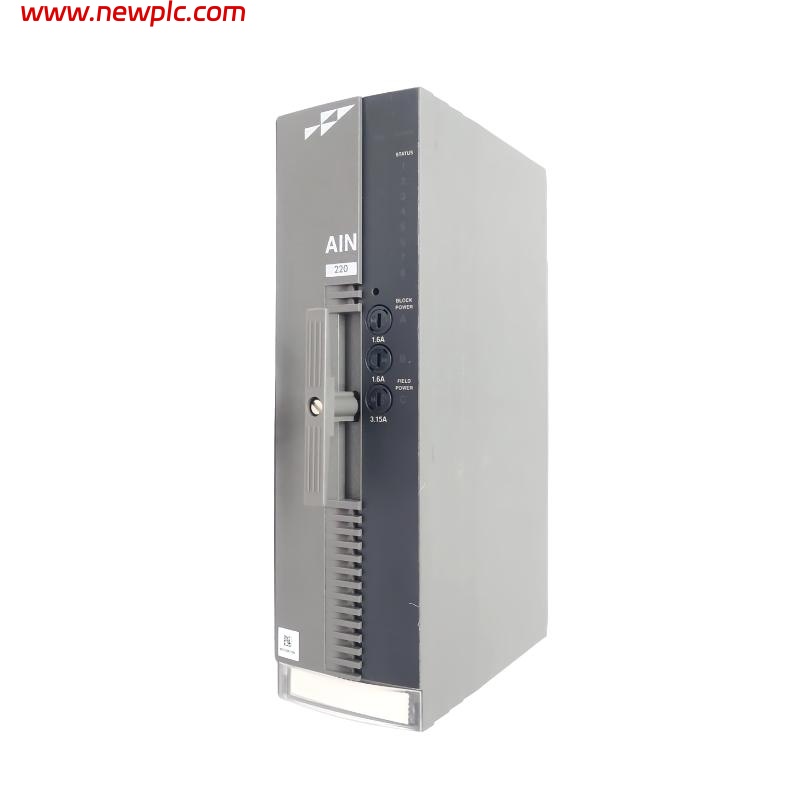

| Product Name | Analog Input Module |
| Model Number | AIN200 P-HB-AIN-20010 000 |
| Brand | ABB Bailey |
| Module Type | Analog Input Module |
| Input Signal Types | 0–20 mA, 4–20 mA, 0–10 VDC, ±10 VDC |
| Input Impedance | 100 Ω for current, >100 kΩ for voltage |
| Accuracy | ±0.1% of full scale |
| Resolution | 16-bit A/D conversion |
| Sampling Rate | 20 ms per channel |
| Isolation | Channel-to-channel and channel-to-ground isolated |
| Temperature Range | 0°C to 70°C operating, -20°C to 85°C storage |
| Humidity | 5% to 95% non-condensing |
| Response Time | 20 ms typical |
| Communication | Backplane connection to Bailey control system |
| Diagnostics | Overrange, underrange, and fault detection for each channel |
| Power Supply | Supplied via system backplane |
| Mounting | Rack or panel mount compatible |
| Compliance | CE, UL certified |
| Dimensions | 266 x 76 x 162 mm |
| Weight | 1.7 kg |
FAQ
FAQ
Q1: What types of signals can the AIN200 module accept?
A1: It supports 0–20 mA, 4–20 mA, 0–10 VDC, and ±10 VDC analog signals.
Q2: How is signal accuracy maintained across the module?
A2: It uses 16-bit A/D conversion with ±0.1% full-scale accuracy and isolation between channels to prevent interference.
Q3: What kind of diagnostics does the AIN200 offer?
A3: It provides overrange, underrange, and fault detection for each channel to alert operators to potential issues.
Q4: How is the module powered?
A4: Power is supplied through the system backplane when the module is installed in the control rack.
Q5: Can the module operate in high humidity environments?
A5: Yes, it is rated to operate in 5% to 95% relative humidity, non-condensing.
Q6: What is the typical response time for an input signal?
A6: The module has a typical response time of 20 milliseconds per channel.
Q7: How does the module interface with the control system?
A7: It connects directly to the Bailey control system via the backplane, allowing real-time analog data acquisition.
Q8: Is the module compatible with other Bailey system modules?
A8: Yes, it is fully compatible with other Bailey control system modules and can be mounted in standard racks.
