Technical Specifications
| Parameter | Description |
|---|---|

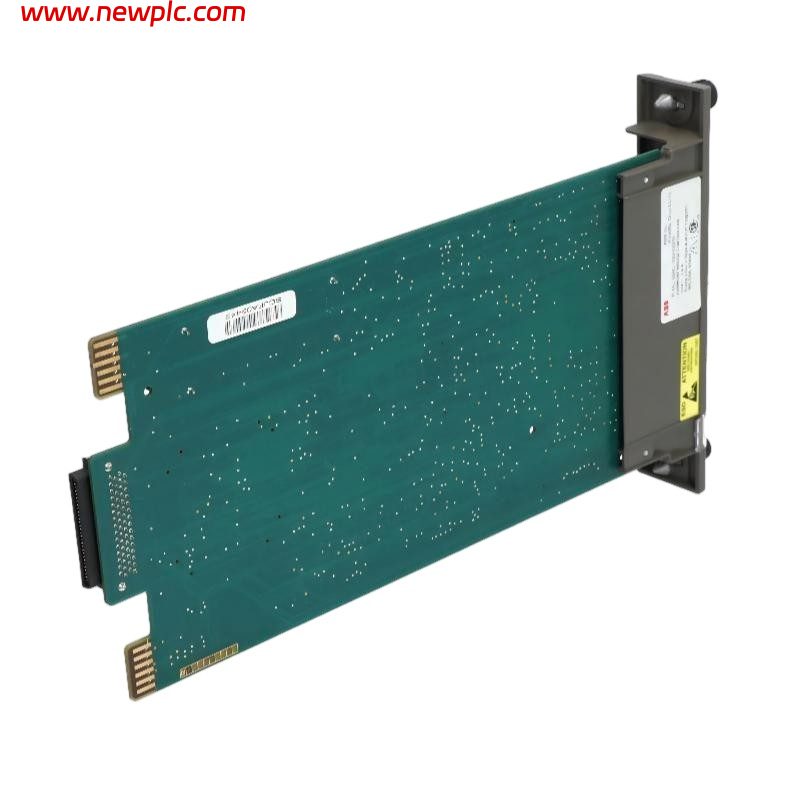

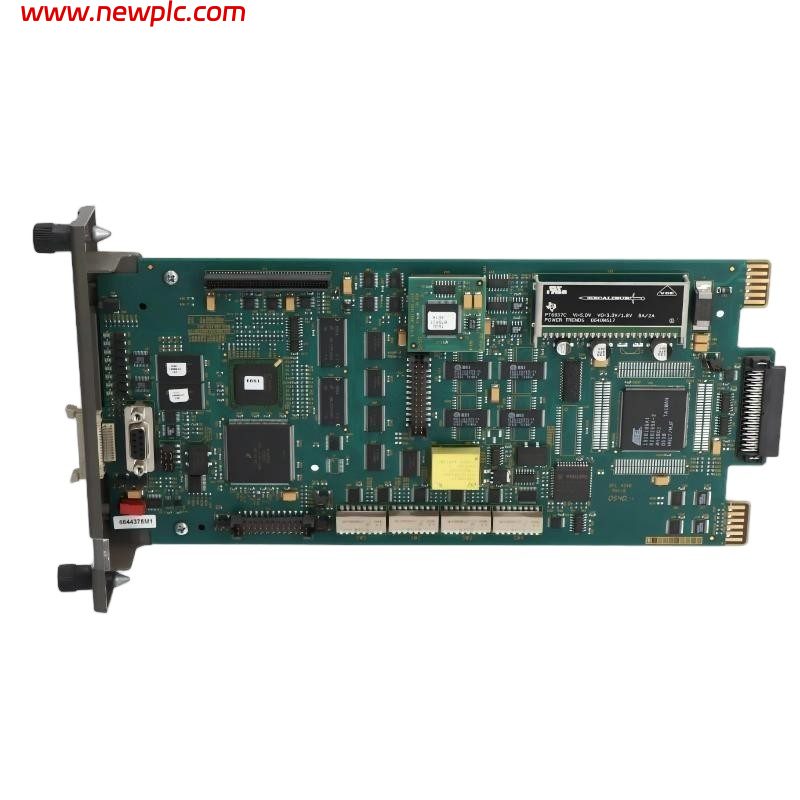

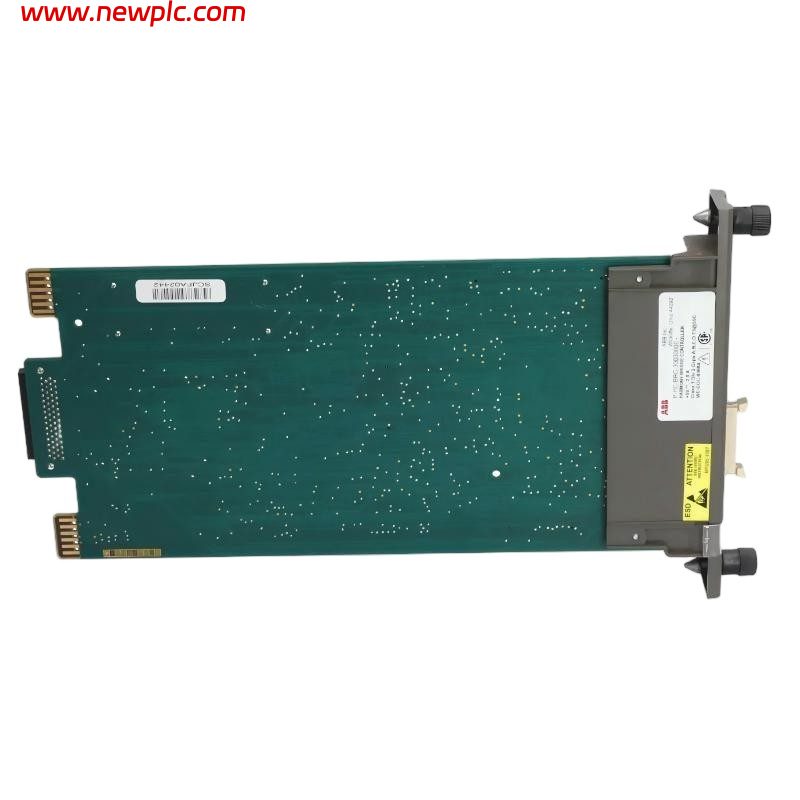

| Product Model | BRC300 |
| Manufacturer | ABB Bailey |
| Product Part Number | P-HC-BRC-30000000 |
| Product Type | Harmony Bridge Controller |
| System / Platform | Bailey INFI 90 / Harmony |
| Application | Distributed Control System (DCS) and industrial process control |
| Main Function | Bridge/interface controller for integrating Harmony/INFI 90 control systems |
| Assembly Number | 6644375N1 / 6644375M1 depending on hardware assembly |
| Power Supply | +5 VDC |
| Current Consumption | Approx. 2.0 A |
| Communication | Harmony / INFI 90 system communication |
| Mounting | Rack / chassis mounted |
| Product Status | Legacy / discontinued platform |
| Approx. Product Dimensions | Approx. 160 × 160 × 120 mm |
| Approx. Product Weight | 0.8–1.0 kg |
| Approx. Shipping Dimensions | Approx. 18 × 18 × 10 cm |
FAQ
FAQ
Q1: What is the ABB Bailey BRC300 used for?
A: The BRC300 is a Harmony Bridge Controller used within ABB Bailey INFI 90/Harmony DCS architectures for control-system communication and integration.
Q2: What is the full part number of the BRC300?
A: The main ordering part number is P-HC-BRC-30000000, also commonly written as PHCBRC30000000.
Q3: Which ABB system does the BRC300 belong to?
A: It belongs to the legacy Bailey INFI 90 / Harmony control-system family.
Q4: What power supply does the BRC300 use?
A: Available hardware documentation/listings specify +5 VDC, with approximately 2.0 A current consumption.
Q5: Is the BRC300 a PLC?
A: It is better described as a DCS bridge/controller module rather than a conventional standalone PLC. It is designed for the ABB Bailey Harmony/INFI 90 control environment.
Q6: What are the assembly numbers associated with P-HC-BRC-30000000?
A: Commonly documented assemblies include 6644375N1 and 6644375M1. The exact assembly number should be checked against the nameplate of the unit.
Q7: Is the BRC300 still a current-generation ABB controller?
A: It belongs to the legacy Bailey INFI 90/Harmony platform, so it is generally encountered as a replacement or spare part for existing installations rather than as a new-generation controller.
Q8: What are the dimensions and weight of the BRC300?
A: For shipping calculations, approximately 16 × 16 × 12 cm and 0.8–1.0 kg can be used. Supplier data varies, so the packed dimensions should be confirmed before quoting freight.
