Technical Specifications
| Parameter | Specification |
|---|---|

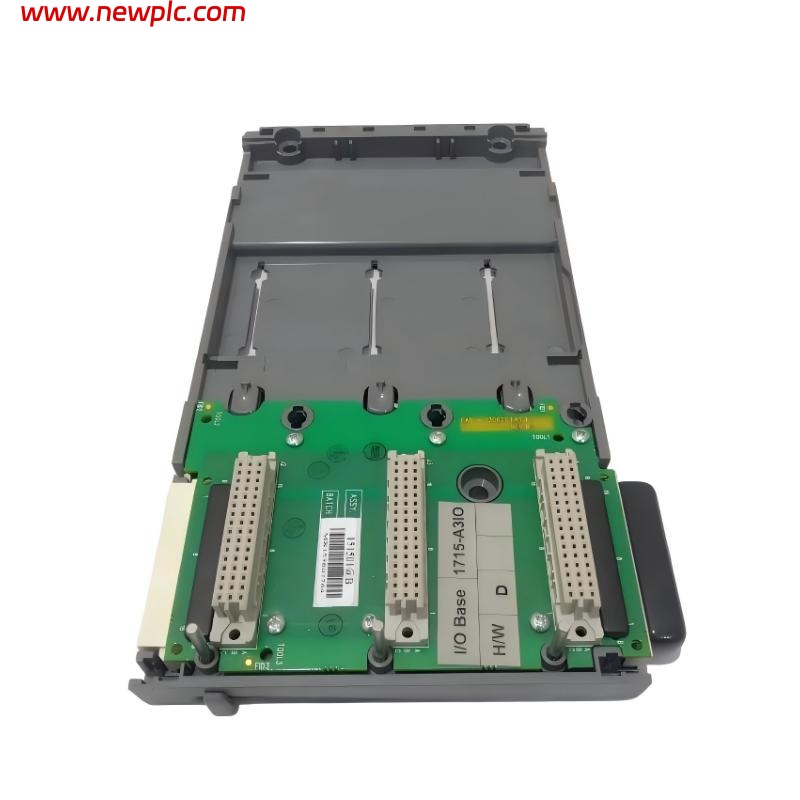

| Product Type | Industrial Redundant I/O Base Unit (3-Slot) |
| Product Family | Allen-Bradley 1715 Redundant I/O Series |
| Part Number | 1715-A3IO |
| Supported Modules | Up to 3 I/O modules |
| Backplane Current | 165 mA @ 18–32 V DC |
| Power Dissipation | System: ~3–4 W; Field loop: up to 0.64 W per loop |
| Isolation Voltage | 50 V (continuous, basic insulation) |
| Wiring | Shielded signal ports (Category 2) |
| Fuse Type | 50 mA, 125 V (Type T) |
| Mounting | DIN-rail (35 mm) |
| Degree of Protection (IP) | IP20 |
| Operating Temperature Range | −25 °C to +70 °C |
| Storage Temperature Range | −40 °C to +85 °C |
| Relative Humidity | 5 % – 95 % non-condensing |
| Vibration مقاومت | 2 g @ 10–500 Hz |
| Shock Resistance | up to 25–30 g (mounted) |
| Dimensions (H × W × D) | 233 mm × 126 mm × 18 mm |
| Weight | ~220 g |
FAQ
FAQ
Q1: What type of product is the 1715-A3IO?
It is a redundant I/O base unit designed to host up to three I/O modules in the 1715 distributed I/O system.
Q2: How many modules can be installed on this base unit?
The unit supports up to three I/O modules simultaneously.
Q3: What is the main function of the 1715-A3IO?
It serves as the mounting and connection platform for I/O modules, enabling redundant and fault-tolerant system architectures.
Q4: What power requirements does the unit have?
It draws approximately 165 mA from a 18–32 V DC backplane supply.
Q5: What are the physical dimensions and weight?
The unit measures 233 mm × 126 mm × 18 mm and weighs about 220 g.
Q6: What kind of protection and isolation does it provide?
It offers 50 V continuous isolation between I/O ports and the backplane, along with IP20 protection.
Q7: What environments can it operate in?
It operates from −25 °C to +70 °C and supports high humidity industrial environments (non-condensing).
Q8: What mounting method is used?
The unit is designed for standard 35 mm DIN-rail mounting in industrial control panels.
