Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Analog Input Slave Module |

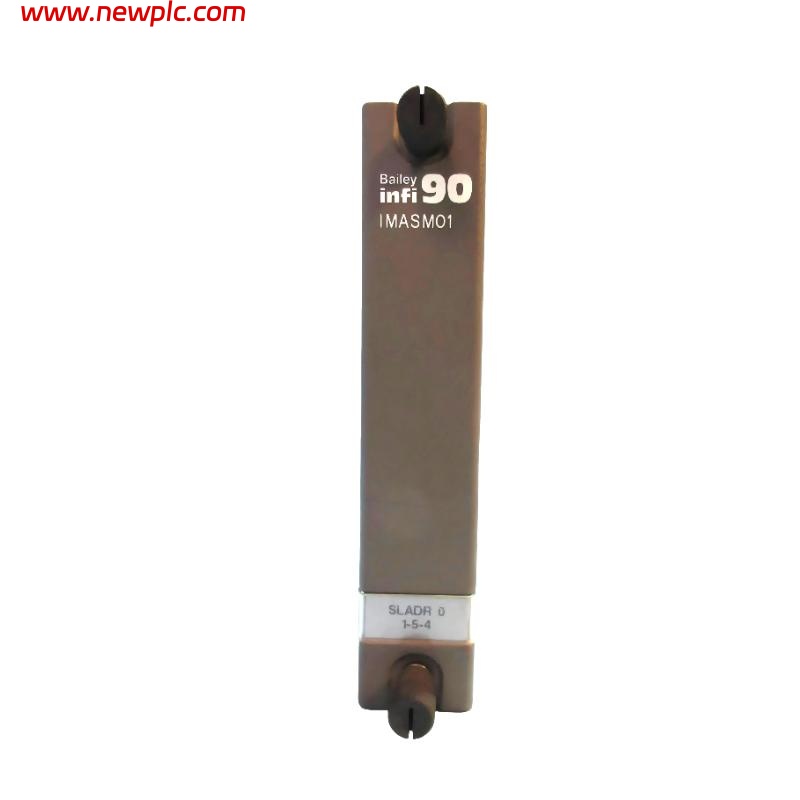

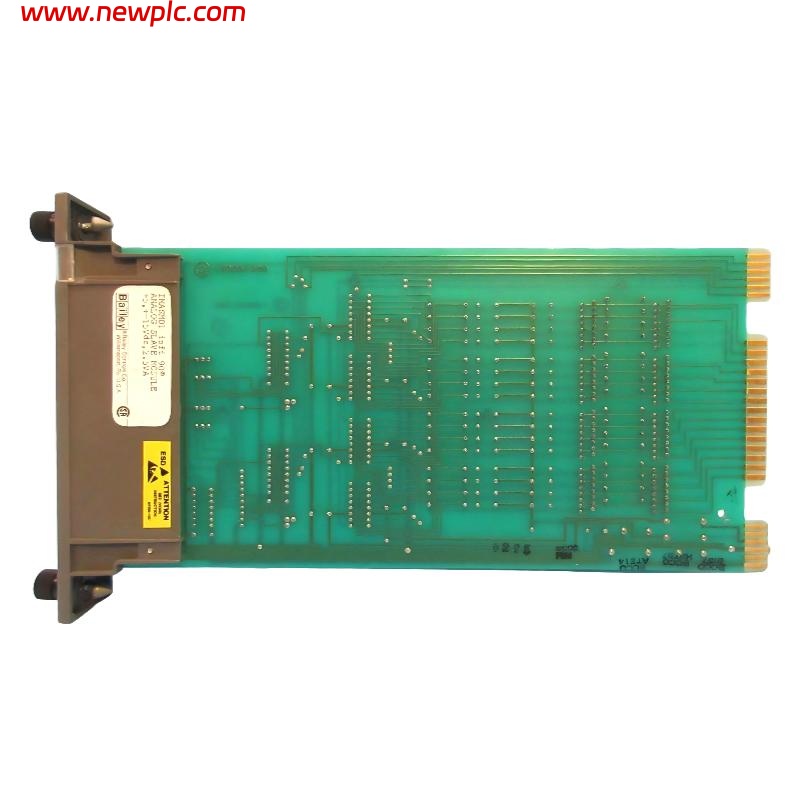

| Model | ABB Bailey IMASM01 |
| Dimensions | 178 x 51 x 330 mm |
| Weight | 0.231 kg |
| Function | Provides analog input interface for field signals to be transmitted to the control system |
| Input Channels | 8 isolated analog input channels |
| Input Signal Types | 4–20 mA, 0–10 VDC, thermocouple, RTD (configurable) |
| Resolution | 12-bit A/D conversion |
| Accuracy | ±0.1% of full scale |
| Input Isolation | 1500 V RMS channel-to-bus and channel-to-channel |
| Input Impedance | 250 Ω for current, >10 kΩ for voltage |
| Power Supply | 24 VDC nominal |
| Communication Interface | Bailey INFI 90/Network 90 I/O bus |
| Diagnostics | Channel fault detection, over-range detection, and bus communication monitoring |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Mounting | Plug-in module for system backplane |
| Certifications | CE, UL, CSA, and industrial EMC compliance |
FAQ
FAQ
Q1: What is the primary function of the ABB Bailey IMASM01 module?
A1: The IMASM01 serves as an analog input interface, allowing field signals such as sensor outputs to be converted into digital data for processing by the control system.
Q2: What types of signals can the IMASM01 accept?
A2: It supports 4–20 mA, 0–10 VDC, thermocouple, and RTD signals, which can be configured according to the specific process measurement requirements.
Q3: How many analog input channels does the IMASM01 provide?
A3: The module provides 8 isolated analog input channels, enabling multiple signals to be monitored simultaneously.
Q4: How accurate is the signal conversion in the IMASM01?
A4: The module provides a high accuracy of ±0.1% of full scale, ensuring reliable measurement and control of process variables.
Q5: What type of isolation is implemented in the IMASM01?
A5: Each input channel is isolated up to 1500 V RMS from other channels and the system bus, preventing interference and enhancing operational safety.
Q6: Does the IMASM01 include diagnostic features?
A6: Yes, it offers channel fault detection, over-range detection, and communication monitoring to help operators identify and correct issues promptly.
Q7: Is the IMASM01 compatible with ABB Bailey control systems?
A7: Yes, it is fully compatible with the INFI 90 and Network 90 systems, allowing seamless integration with existing control architectures.
Q8: In what environmental conditions can the IMASM01 operate reliably?
A8: The module is designed to function in industrial environments with temperatures between 0°C and +60°C and humidity levels up to 95% non-condensing.
